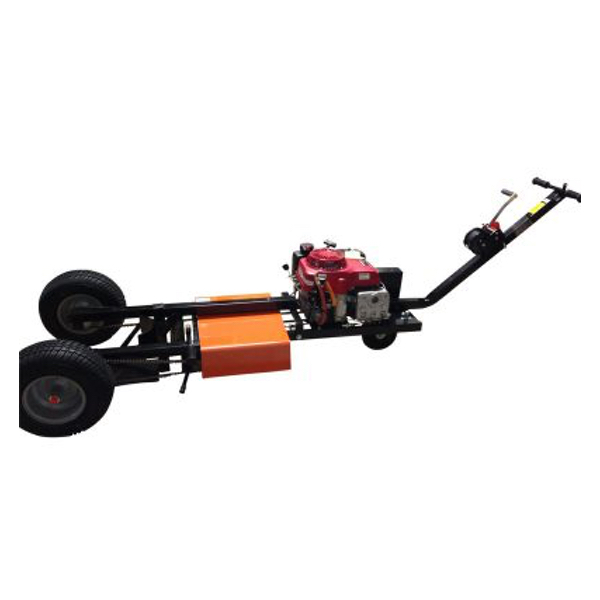

Airtug Model 10-H Gas Powered
$8188.00/Each
Part# 13-07289
MFR Model# 10-H
MFR Model# 10-H
Overview
| The 10-H model AirTug® is the tug of choice for those who need to lower the tail to enter a hangar or are working with a lip 3/4″ or greater. The nose-wheel is loaded onto a platform which can then be raised by a hydraulic jack up as much as needed to a maximum of roughly 7”, thus lowering the tail by approximately double this amount. Additionally, it is easy to use because of its’ unique “Twist Grip Control” system utilizing a hydrostatic transmission, electric start and a heavy duty variable speed gasoline engine. Their ensure your safety with their “Return to Brake” feature that prevents any unintentional movement of the plane when the twist grip is released. There is no metal to metal contact, no gears to shift and no jerky clutching systems to quickly wear out. Finally, its’ pinpoint handling allows the operator to pivot as tight as desired as a result of the differential transmission. All of these features simply make this aircraft tug the best in the industry! |
Features
- Loading System: Hydraulic Lift Shoe with Winch Strap/ Strut Strap
- Parts Warranty: 1 Year
- Type of Starter: Electric
- Engine: Four Stroke 10-HP or greater, electric or recoil start
- Tow Weight: Up to 16,000 lbs.
- Type of Control: Unique “Throttle Grip”
- Turning Radius: 360 Degree
Specifications
- 2 Ton Hydraulic Jack for Lift Shoe
- 11 Gauge Heavy Steel Frame
- Hydrostatic Transaxle
- 16”x 6” - 6 ply on 8” Drive Wheels
- Drive Wheels Capable of Handling Nosewheel Weights up to 2000 lbs.
- Low Profile unit for avoiding low aircraft hulls and flight controls with low axle and optional 13" Drive Wheels
