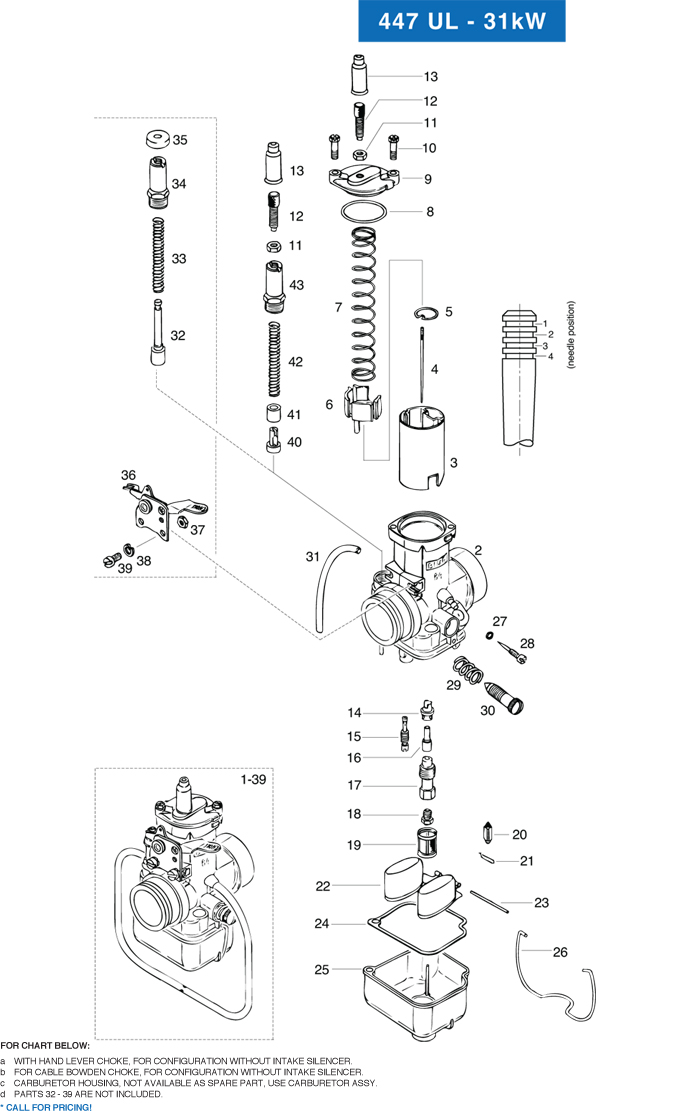

Rotax 447 Ul Engine Bing Double-Float Carburetor 36 Mm Model 96 Parts
(Hover to zoom | Use mouse wheel for +/-)
| No. | Status | Rotax Number | Description | Qty 447 | Part Number | Price | Buy |
|---|---|---|---|---|---|---|---|
| 10 | 241-430 | HEX. SCREW M5X12 | 1 | 07-00401 | $2.92 | ||
| 12 | 241-440 | ADJUSTMENT SCREW M6X0,75 | 2 | 07-00406 | $8.95 | ||
| 15 | 963-140 | IDLE JET 50 | 1 | 07-00385 | $58.75 | ||
| 16 | 261-608 | NEEDLE JET 2,70 | 1 | 05-02028 | $36.55 | ||
| 17 | 963-130 | MIXING TUBE | 1 | 07-00447 | $39.50 | ||
| 18 | 268-980 | MAIN JET 135 | 1 | 15-05037 | $20.50 | ||
| 19 | 261-625 | SIEVE SLEEVE | 1 | 15-00331 | $10.50 | ||
| 23 | 929-702 | PIN | 1 | 15-03016 | $4.35 | ||
| 24 | 830-720 | GASKET | 1 | 15-00903 | $20.50 | ||
| 25 | 963-170 | FLOAT CHAMBER | 07-00454 | $80.75 | |||
| 26 | 963-180 | SPRING CLIP | 1 | 07-00424 | $20.50 | ||
| 27 | 831-713 | O-RING 3,2X1,8 | 1 | 15-00929 | $7.50 | ||
| 31 | 861-940 | AIR VENT LINE | 1 | 07-00437 | $23.50 |
- JUMP TO
- Overview
- Notes
- Reviews
- Q&A
- View in Catalog
Overview
|
Rotax 447 UL engine bing double-float carburetor 36 mm, model 96 parts. Explanations of symbols and statements in part number charts:
 |
Notes
No. | Status | Part No. | Description | 447 | 503 | 582 m90 | 582 m99 | 618 | Price |
2 | CARBURETOR HOUSING | 1c | NLA | ||||||
9 | 261-600 | COVER PLATE | 1 | * |
Reviews
Not sure why these tubes are so expensive but they do a great job and seem to be good quality.
Verified Purchase
Bing Plastic Air Vent Tube 280MM 80-697-00
Not sure why these tubes are so expensive but they really look nice and do the required job.
Verified Purchase
Bing Plastic Air Vent Tube 280MM 80-697-00
