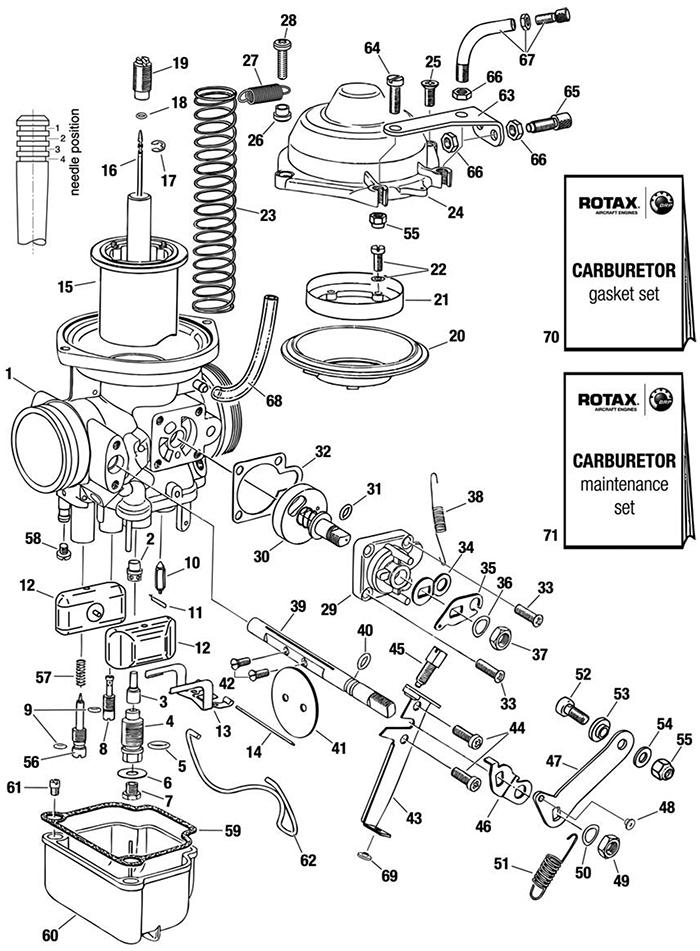

- Photo may represent series and not specific product
- SHARE
(Hover to zoom | Use mouse wheel for +/-)
| No. | Rotax Number | Description | Qty 912 UL | Qty 912 ULS | PN | Price | Buy |
|---|---|---|---|---|---|---|---|
| 2 | 961-200 | DIFFUSER | 1 | 15-03700 | $27.65 | ||
| 2 | 961-202 | DIFFUSER | 1 | 15-03701 | $43.99 | ||
| 3 | 261-607 | NEEDLE JET 2.72 | 1 | 15-00328 | $27.60 | ||
| 3 | 261-608 | NEEDLE JET 2.70 | 1 | 15-00329 | $27.60 | ||
| 4 | 963-130 | MIXING TUBE | 1 | 1 | 07-00447 | $39.50 | |
| 5 | 430-800 | O-RING 8X2 | 1 | 1 | 15-00536 | $8.50 | |
| 6 | 827-160 | SHIM | 1 | 1 | 15-00830 | $3.35 | |
| 7 | 268-985 | MAIN JET 160 | 1i | 05-02003 | $21.65 | ||
| 7 | 268-984 | MAIN JET 155 | (1)f | 1 | 10-01598 | $21.65 | |
| 7 | 268-996 | MAIN JET 158 | 1 | 05-02011 | $21.65 | ||
| 8 | 963-143 | IDLE JET 35 | 1 | 1 | 05-02019 | $57.75 | |
| 9 | 831-713 | O-RING 3.2X1.8 | 2g | 2g | 15-00929 | $7.50 | |
| 10 | 261-708 | FLOAT NEEDLE VALVE W. VITON TIP | 1g | 1g | 15-00344 | $73.95 | |
| 13 | 861-192 | FLOAT BRACKET | 1 | 1 | 15-01763 | $29.50 | |
| 14 | 929-702 | PIN | 1 | 1 | 15-03016 | $4.35 | |
| 15 | 961-230 | CARBURETOR PISTON | 1 | 1 | 15-03707 | $328.00 | |
| 19 | 961-293 | FIXATION SCREW | 1e | 1e | 15-03721 | $35.55 | |
| 21 | 961-240 | RETAINING RING | 1 | 1 | 15-03708 | $87.75 | |
| 22 | 841-210 | COMBINED SCREW M4X12 | 4 | 4 | 15-01164 | $5.60 | |
| 23 | 938-365 | THROTTLE VALVE SPRING | 1 | 1 | 15-03131 | $32.60 | |
| 24 | 961-250 | CHAMBER TOP | 1 | 1 | 15-03709 | $230.95 | |
| 25 | 841-341 | COUNTERSUNK SCREW M5x12 | 1 | 1 | 15-09633 | $4.99 | |
| 26 | 847-910 | DISTANCE SLEEVE | 1 | 1 | 15-01387 | $27.60 | |
| 27 | 838-242 | SPRING | 1 | 1 | 15-01093 | $23.50 | |
| 29 | 961-280 | CHOKE HOUSING | 1 | 1 | 15-03718 | $66.75 | |
| 30 | 961-273 | CHOKE VALVE ASSEMBLY 1/3 | 1a,g | 1a,g | 15-03175 | $1.90 | |
| 31 | 950-420 | O-RING 5X1.5 | 1 | 1 | 15-03401 | $8.75 | |
| 32 | 950-030 | GASKET | 1 | 1 | 15-03382 | $8.50 | |
| 33 | 841-360 | PHILLIPS HEAD SCREW M4X14 | 4 | 4 | 15-01174 | $2.12 | |
| 34 | 848-241 | CHOKE LEVER INSIDE | 1 | 1 | 15-09178 | $6.55 | |
| 35 | 848-245 | CHOKE LEVER OUTSIDE | 1 | 1 | 15-01404 | $7.99 | |
| 36 | 845-035 | SPRING WASHER 8.3/13.6/0.4 | 2 | 2 | 15-01288 | $24.60 | |
| 37 | 942-290 | HEX.NUT M8X1 / TORQUE: 6-7 NM / 55-62 IN.LB. | 2 | 2 | 15-03299 | $5.75 | |
| 39 | 963-992 | THROTTLE SHAFT | 1 | 1 | 15-03801 | $57.75 | |
| 40 | 950-020 | O-RING 6X1.9 | 1 | 1 | 15-03381 | $10.50 | |
| 41 | 963-666 | THROTTLE VALVE | 1 | 1 | 15-03773 | $27.60 | |
| 42 | 941-200 | SLOTTED HEAD SCREW M3X6 | 2 | 2 | 15-03249 | $3.45 | |
| 43 | 961-262 | CABLE SUPPORT 1/3 | 1a,j | 1a,j | 15-03711 | $37.99 | |
| 43 | 961-267 | CABLE SUPPORT 2/4 | 1b,j | 1b,j | 15-03713 | $39.50 | |
| 44 | 240-357 | OVAL HEAD SCREW M4x10 | 2 | 2 | 15-08720 | $1.91 | |
| 45 | 963-162 | THROTTLE VALVE STOP SCREW | 1 | 1 | 15-03751 | $14.50 | |
| 46 | 848-232 | STOP LEVER 2/4 | 1b | 1b | 15-01399 | $15.75 | |
| 46 | 848-230 | STOP LEVER 1/3 | 1a | 1a | 15-01398 | $15.75 | |
| 47-48 | 963-026 | THROTTLE VALVE LEVER 1/3 | 1a,g | 1a,g | 15-03736 | $66.75 | |
| 47-48 | 963-021 | THROTTLE VALVE LEVER 2/4 | 1b,g | 1b,g | 15-03734 | $39.50 | |
| 48 | 963-015 | SLEEVE | 1 | 1 | 15-03732 | $7.99 | |
| 52 | 241-847 | ALLEN SCREW M5X12 | 1 | 1 | 15-00194 | $26.50 | |
| 53 | 847-740 | GRADUATED SLEEVE | 1 | 1 | 15-01358 | $39.50 | |
| 54 | 827-800 | WASHER A 5.5 | 1 | 1 | 15-00860 | $0.41 | |
| 55 | 842-030 | LOCK NUT M5 | 2 | 2 | 15-01239 | $3.60 | |
| 56 | 961-222 | IDLE MIXTURE SCREW | 1 | 1 | 15-03706 | $54.75 | |
| 57 | 239-463 | COMPRESSION SPRING | 1g | 1g | 15-00101 | $3.40 | |
| 58 | 941-740 | SLOTTED HEAD SCREW M3.5X5 | 1 | 1 | 15-03276 | $2.81 | |
| 61 | 268-758 | JET 85 | 1 | 1 | 15-00393 | $33.55 | |
| 61 | 268-762 | JET 105 | (1)d | (1)d | 15-00395 | $45.50 | |
| 62 | 963-180 | SPRING CLIP | 1 | 1 | 07-00424 | $20.50 | |
| 65 | 241-440 | SLOTTED HEAD SCREW M5x16 | 1 | 1 | 07-00406 | $8.80 | |
| 67 | 861-640 | BENT TUBE ASSEMBLY | 1 | 1 | 15-05010 | $71.75 | |
| 68 | 256-035 | AIR VENT LINE 120 MM | 1 | 1 | 07-00437 | $23.50 | |
| 69 | 963-010 | SLEEVE | 1 | 1 | 15-03731 | $7.50 |
Overview
- Items not illustrated
Explanations of symbols and statements in part number charts:
 |
Notes
No. | Status | Part No. | Description | 912 UL | 912 ULS | Price |
2 1 | - | CARBURETOR HOUSING | 1c | 1c | NLA | |
50 | 845-035 | SPRING WASHER 8.3/13.6/0.4 | 2 | 2 | * | |
63 | 851-071 | SUPPORT 1/3 | 1a | 1a | * | |
63 | 851-073 | SUPPORT 2/4 | 1b | 1b | * |
