Home / Rotax Engines & Parts / Parts / 912/914 Series / Starters /Rotax 912 | 914 Ul E-Starter Single Parts
Main Image

Rotax 912 | 914 Ul E-Starter Single Parts

0 Reviews 0 Answered Questions
From $0.20 to $11.50

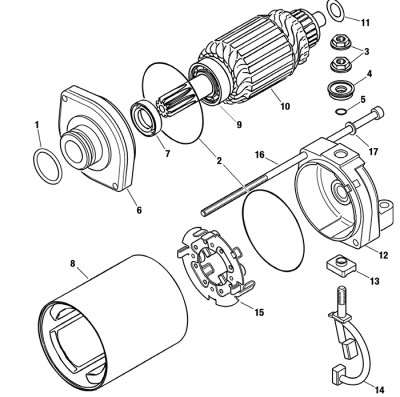

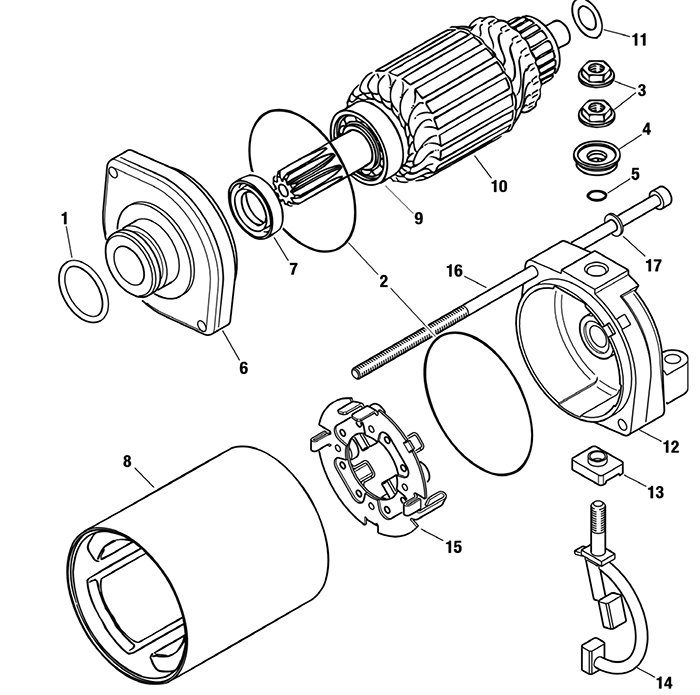

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Number Description Qty Req PN Price Buy
2850-500O-RING 62-1.52
15-01463
$11.50
Quantity
3242-780COMBINED NUT M61
15-00224
$3.85
Quantity
4260-800CONNECTOR SHEATH1
15-00312
$8.50
Quantity
5230-530O-RING 6X1.71
15-00077
$2.76
Quantity
11827-600SHIM AR
15-00849
$4.60
Quantity
17927-571WASHER 5.32
15-02995
$0.20
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   Not available as single spare part. Use electric starter kit part no. 294354.


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
912 UL
912 ULS
914 UL
Price
1-19
xxx-xxx
 see chapt 80-10-00 fig.1 pos. 1
1
1
1
-
6
n.a.
xxx-xxx
 SUPPORT
1
1
1
-
8
n.a.
xxx-xxx
 STATOR YOKE ASSEMBLY
1
1
1
-
10
n.a.
xxx-xxx
 ROTOR ASSEMBLY
1
1
1
-
12
n.a.
xxx-xxx
 ROTOR SUPPORT ASSEMBLY
1
1
1
-
16
974-524
DISTANCE HOSE 45 MM
1b
1b
1b
*
17
xxx-xxx
 CARBON BRUSH ASSY.
2
2
2
-
18
xxx-xxx
 BRUSH HOLDER WITH SPRINGS
2
2
2
-
19
xxx-xxx
 BRUSH HOLDER WITH SPRINGS
2
2
2
-
