Rotax Repair Tools And Gasket Set: 582 Ul 99/17 Parts

0 Reviews 1 Answered Question
From $23.50 to $119.75

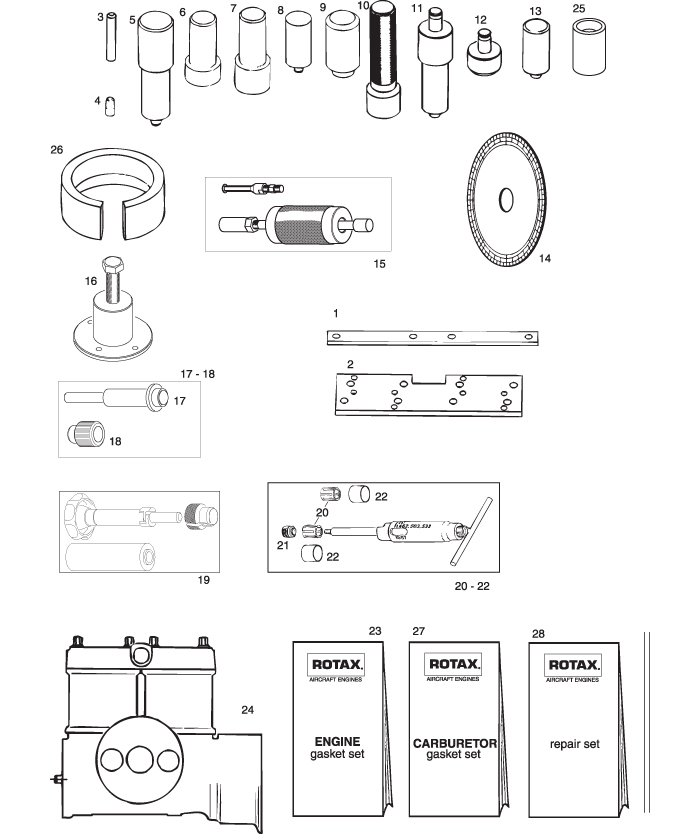

Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

No. Rotax Part Number Description Qty Req PN Price Buy
4876-980GUIDE SLEEVE1c
15-02032
$23.50
Quantity
7876-607INSERTION JIG1f
15-01986
$68.75
Quantity
8876-512 INSERTION JIG1g
15-01969
$60.75
Quantity
14277-150 DEGREE DISK1j
15-00444
$119.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

- Items not illustrated
  • a   for cylinder
  • b   for cylinder exhaust-flange.
  • c   for rotary valve shaft.
  • d   for ball bearing, rotary valve shaft.
  • e   for oil seal rotary valve shaft (without oil pump), intake-side.
  • f    for oil seal rotary valve shaft (with oil pump), intake-side.
  • g   for inner oil seal rotary valve shaft, waterpump side.
  • h   for outer oil seal rotary valve shaft, waterpump side.
  • i    to press in the rotary seal.
  • j    for rotary valve timing.
  • k   to pull out the rotary seal- the inner steel bushing of the rotary seal has to be removed
         before demounting!
  • l    for fitting of piston pin circlip.
  • m  for fitting of piston pin circlip. (monohook-circlip).
  • n   for engine 582 UL DCDI mod.90.
  • o   for engine and rave.
  • p   from engine S/N 5.305.901
  • q   to press in the rotary seal 850942 (page 8.2-4) with the insertion jig (16)
  • r    only for rotary seal (618 UL)
  • s   for included parts see 9.3.1
  • t    for carburetor 36 mm
  • u   23 (gasket set) + spark plug caps, carburetor sockets, clamp 62, clamp 53, crankshaft, pistons,
         spark plugs


Explanations of symbols and statements in part number charts:
  • N = Newly introduced part number
  • s.v. = Still valid. Part was replaced by compatible component and can not be supplied any longer by the producer. Existing stock may be used.
  • AR = As required. This generally refers to shims, hose, wires, and cable. Measure the amount you need before ordering. Many times there will be multiple listings of different lengths with the same part number. Use individual part descriptions to determine the proper length needed.
  • n.a or NLA = No longer available, no replacement from Rotax. Part is no longer available due to incompatibility to current production or unavailability of part.
  • CALL = Please call for price, 800-247-9653

Notes

No.
Status
Part No.
 Description
447
503
582
m90
582
m99
618
Price
1
ALIGNING TOOL
1a
NLA
7
876-607
 INSERTION JIG
1f
1f
1f
$64.23
21
EXTRACTING NUT ASSY.,
1
1
1
*
26
PISTON RING SPANNER 76 MM
1
1
*
27
996-949
 GASKET SET CARB. 2 STROKE
1st
1st
1st
*

Reviews

Submit a Review

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this What is needed for a complete overhaul on a 582?

No, the image is for a kit we no longer offer. Leaf or Lockwood aircraft can be contacted for Rotax parts and overhaul kits
