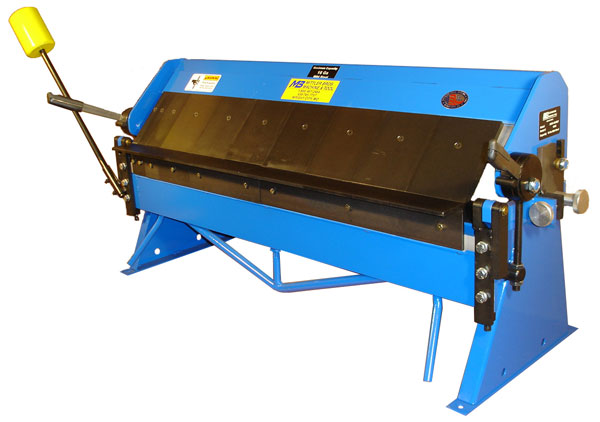

Mittler Bros. Ultimate 48 Inch Box And Pan Brake

$6309.00/Each
Quantity
Add to Wishlist
Part# 12-02799
MFR Model# 2800-48-16-R

Overview

The ultimate Box and Pan Brake has a unique 3-finger design. Incorporating moveable segmented bed fingers and apron fingers as well as upper radius fingers. Radius fingers allow forming aircraft and racecar panels using 3003 to 2024 T3 aluminum, .062 inch mild steel and .0375 inch stainless steel. Bend combinations easily that were extremely difficult if not impossible before.

Features include wrenchless upper set back adjustments, 3-1/2" depth of box, 2" down leg, 1" front to rear adjustment and 1/4" reverse bend capabilities. A complete set of upper radius fingers.

How to Order

  • Along with the box and pan brake, you will receive a complete set of upper radius fingers (your choice), bed fingers, apron angle fingers, and counterweight(s). The total width of the upper radius finger kit will be 48". You will receive the following fingers: qty 7 of 6" and one each of 3", 2", and 1" fingers totalling to 48".

Features

  • Wrenchless upper set back adjustments
  • 3-1/2 inch depth of box
  • 2 inch down leg
  • 1 inch front to rear adjustment
  • 1/4 inch reverse bend capabilities

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is this Mittler Bros brake made in the USA?

Yes, it is made in the USA.

Q: Looking at the manufacturing website, it states that the radius can be selected. Is it possible to get 1/8th radius in this brake?

Yes, it can be ordered with a 1/8th brake.
