Vertical Power (Vp-X) Wiring Harness

3 Reviews 2 Answered Questions
Select Version:
VP-X-Pro-WHVP-X-Sport-WH
Quantity
Add to Wishlist

Overview

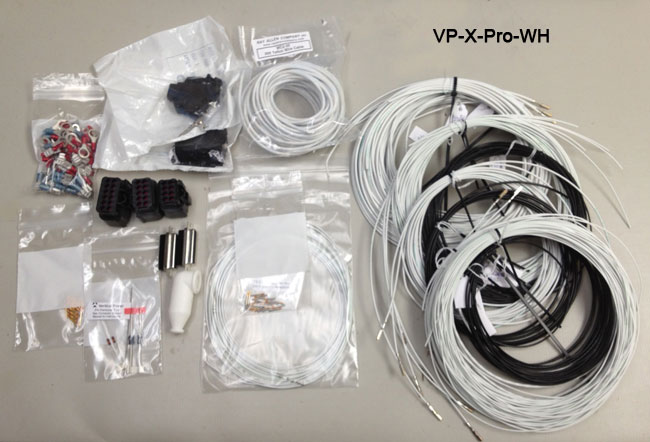

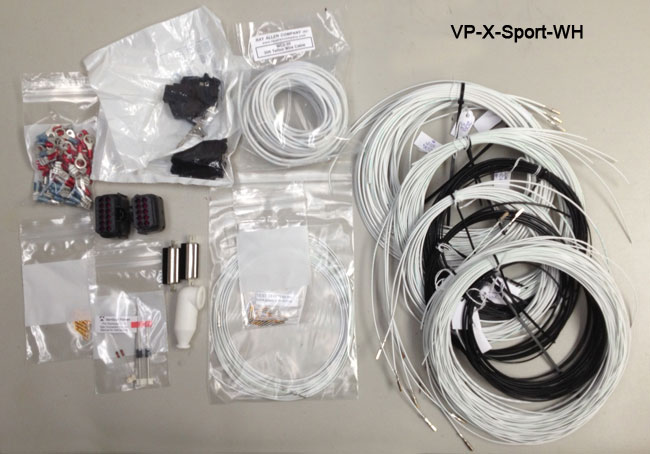

Wiring harness for VP-X-Pro and VP-X-Sport.

Includes about 550 feet (VP-X-Sport) 600 feet (VP-X-Pro) of Tefzel wiring, connectors, gold plated terminal pins, 5-conductor trim wire, backshell for connectors, shielded data wire, diodes, rubber boot, and assorted insulated crimp terminals. Wiring harness has power connector terminals crimped on wires.
For complete list of items included with the Vertical Power Wiring Harness kits please see reference chart.

Reference Chart

Qty.
Gauge
Length (ft.)
Color
Terminal on one end
1
20
50
wht
none
1
22

50

wht

none

1
14
10
black
none
1
18
20
black
none
1
20
40
black
none
3
14
20
wht
female power connector
8
18
10
wht
female power connector
2
18
15
wht
female power connector
11
20
5
wht
female power connector
6
20
20
wht
female power connector
2
20
5
wht
male power connector
1
3 cond 24 gauge
20
wht
Data line to EFIS and for flap position sensor
1
5 cond 24 gauge
35
wht
Pitch and roll trim cable

(VP-X-Sport does not have components for the J8 connector)

The following items are also included:
(1) 8 pin power connector
(1) 10 pin power connector
(1) 12 pin power connector
(2) 25 pin dsub connector
(2) 25 pin dsub connector hood with thumbscrews
(40) D-sub pins (male and female)
(1) Rubber boot
(1) Pin removal tool (removes pins from power connectors)
(2) Diode for battery contactor and starter contactor
(2) 1K resistor for aux battery voltage and starter annunciator inputs
(1) Bag of assorted insulated crimp terminals
A 6 foot Ethernet crossover cable is included with the system to connect your laptop to the VP-X.
