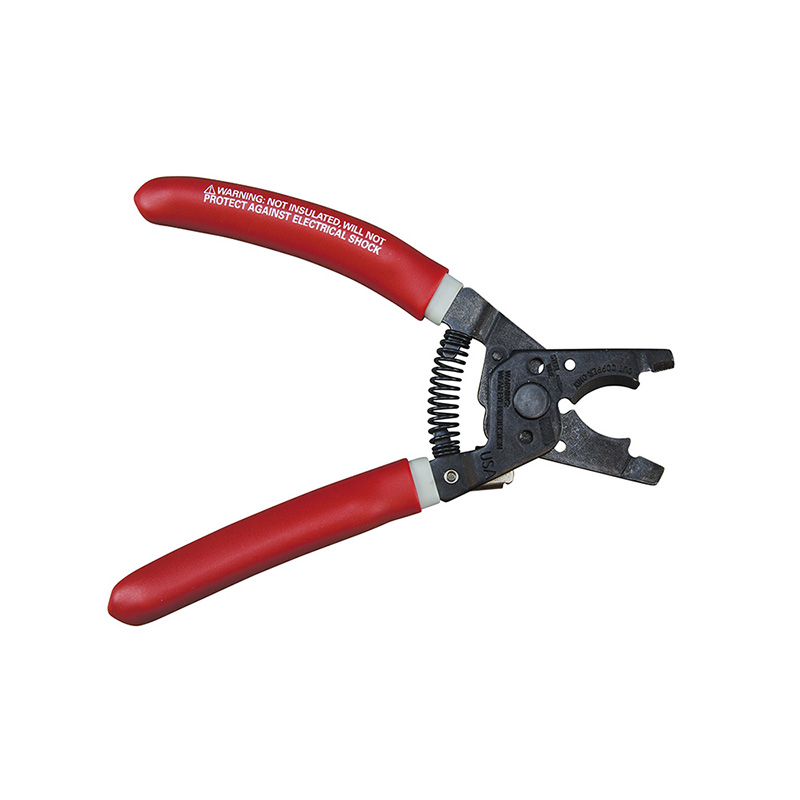

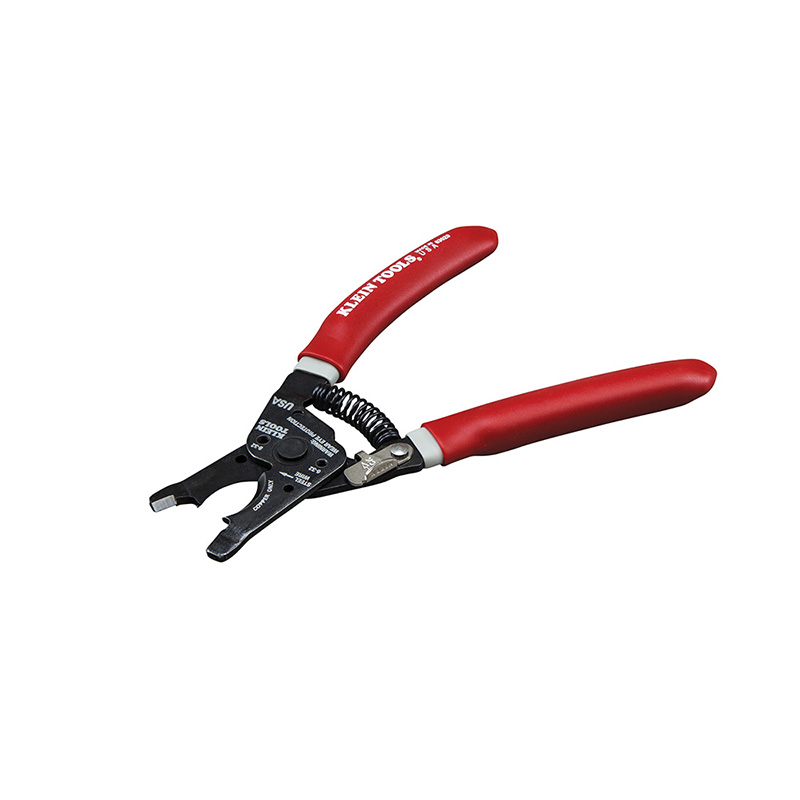

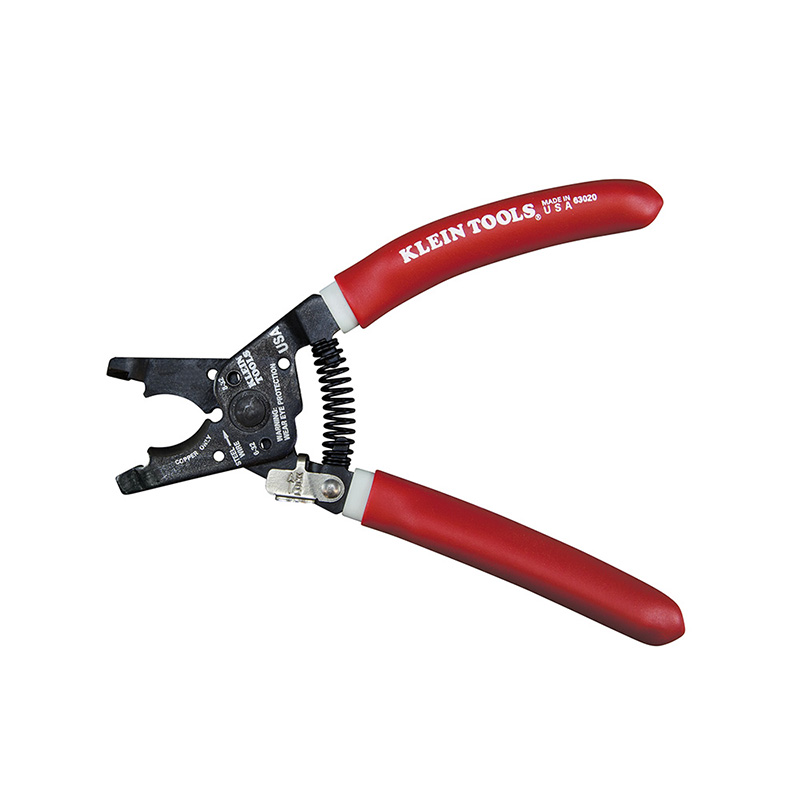

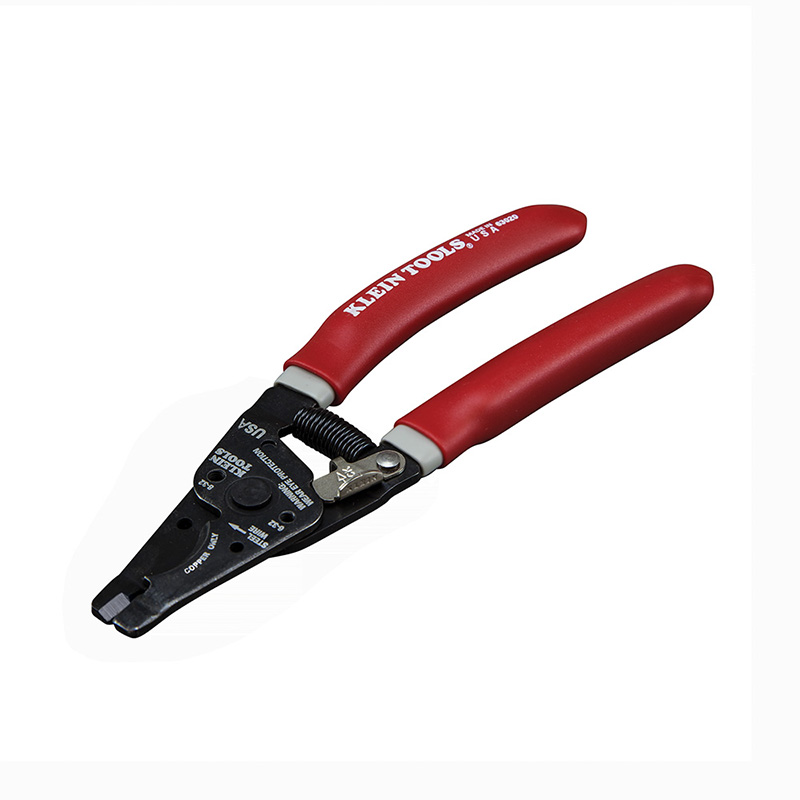

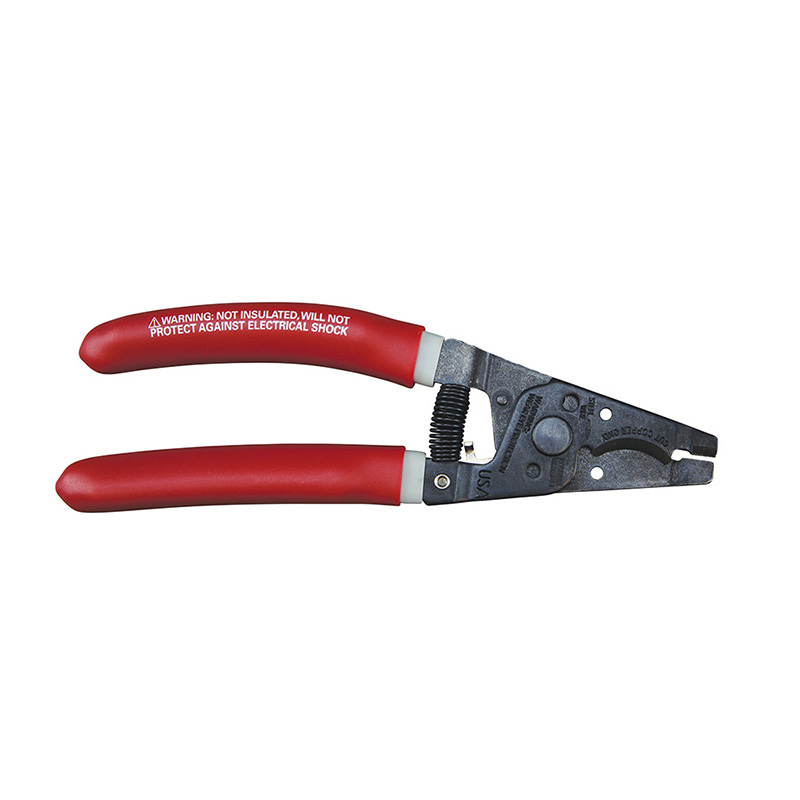

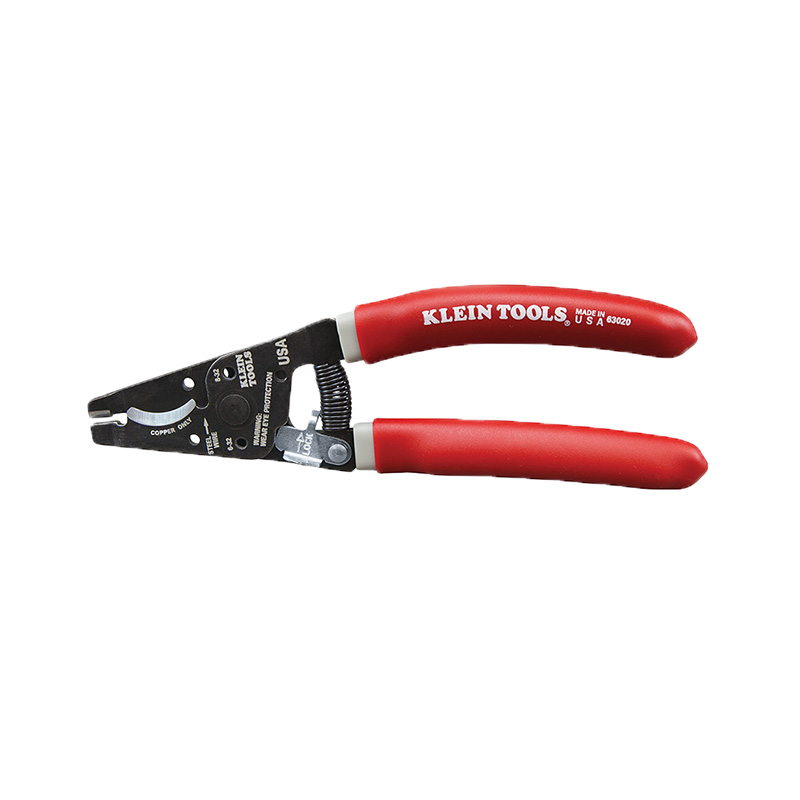

63020 Klein Kurve Multi Cable Cutter
MFR Model# 63020
Overview
|
Note: Always wear approved eye protection. NOT insulated. Plastic dipped or slip on plastic handles are NOT intended for protection against electrical shock. The Klein Tools Klein-Kurve Multi-Cable Cutter has a wide range of blades designed to cut multiple types of cable. The anvil cutter cuts 12 AWG copper wire and stainless steel up to 0.032-Inch in diameter. The copper curved cutter cuts 8 AWG solid and 6 AWG stranded copper wire, conductors, and coaxial cable. This tool also has a cutter for mild steel. |
Features
- Made in USA with hardened steel precision-ground cutting blades for long life
- Copper curved cutter cleanly cuts round copper cable without compression or frayed ends
- Anvil cutter for solid and stranded copper wire up to 12 AWG and stainless steel up to .032-Inch (0.8 mm) diameter
- Mild steel cutter for conductors up to .080-Inch (2 mm) diameter
- Curved cutter for solid and stranded copper wire up to 8 AWG, multi-conductor cable up to 1/2-Inch (13 mm) diameter and coaxial cable RG-6 Quad, RG-59, and RG-62
- New lock design prevents accidental locking or loosening over time
- Double-dipped grips for comfort
- Coil spring provides fast self-opening action
- Holes for looping and bending wire
- Not for CCS coax cable
Specifications
- Type: Cable Cutter
- Handle Color: Red
- Cutting Capacity: Up to 12 AWG Solid and Stranded Copper Wire, Up to 0.032'' (.081 mm) Diameter Stainless Steel, Up to 1/2'' (12.7 mm) Multi-conductor Cable, Coaxial Cable RG-6 Quad, RG-59 and RG-62
- Application: Cuts Copper Wire, Stainless Steel, Conductors, and Coaxial Cable
- Insulated: No
- Overall Length: 7'' (17.8 cm)
- Weight: 0.44 lb (0.20 kg)
- Screw Shearing: 6-32 & 8-32
- Material: Steel
Tech Data
- Tech Data Sheet (PDF)
Videos
Reviews
It cuts wire and screws fine, but it wont cut control cable. Seeing as that is why I ordered it, I am more than a bit disappointed.
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This cutter is designed for cable, so we can not say for sure, but referring to the tech sheet, it should work fine.
