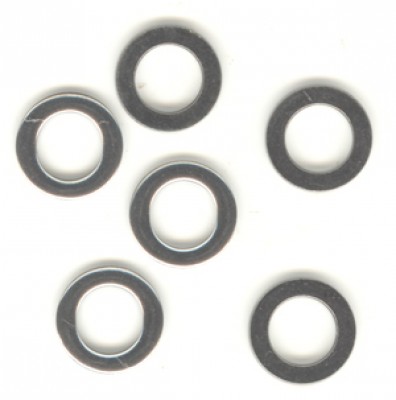

- Photo may represent series and not specific product
- SHARE
| AN No. | Superseding NAS No. | Bolt or Screw Size |
O.D. (in.) |
I.D. (in.) |
Thickness | Price | Buy |
|---|---|---|---|---|---|---|---|
AN960C4 | NAS1149CN432R | #4 | .312 | .125 | .032 | $0.06 | |
AN960C6 | NAS1149CN632R | #6 | .375 | .149 | .032 | $0.08 | |
AN960C8 | NAS1149CN832R | #8 | .375 | .174 | .032 | $0.08 | |
AN960C10 | NAS1149CO363R | 3/16 | .438 | .203 | .063 | $0.20 | |
AN960C416 | NAS1149CO463R | 1/4 | .500 | .265 | .063 | $0.20 | |
AN960C516 | NAS1149CO563R | 5/16 | .562 | .328 | .063 | $0.29 | |
AN960C616 | NAS1149CO663R | 3/8 | .625 | .390 | .063 | $0.28 | |
AN960C716 | NAS1149CO763R | 7/16 | .750 | .453 | .063 | $0.26 | |
AN960C816 | NAS1149CO863R | 1/2 | .875 | .515 | .063 | $0.52 | |
AN960C916 | NAS1149CO963R | 9/16 | 1.062 | .578 | .063 | $0.70 | |
AN960C1016 | NAS1149CO1063R | 5/8 | 1.188 | .640 | .063 | $0.64 | |
AN960C1216 | NAS1149CO1290R | 3/4 | 1.312 | .765 | .090 | $0.96 | |
AN960C4L | NAS1149CN416R | #4 | .312 | .125 | .016 | $0.05 | |
AN960C6L | NAS1149CN616R | #6 | .375 | .149 | .016 | $0.06 | |
AN960C8L | NAS1149CN816R | #8 | .375 | .174 | .016 | $0.06 | |
AN960C10L | NAS1149CO332R | 3/16 | .438 | .203 | .032 | $0.10 | |
AN960C416L | NAS1149CO432R | 1/4 | .500 | .265 | .032 | $0.11 | |
AN960C516L | NAS1149CO532R | 5/16 | .562 | .328 | .032 | $0.14 | |
AN960C616L | NAS1149CO632R | 3/8 | .625 | .390 | .032 | $0.23 | |
AN960C716L | NAS1149CO732R | 7/16 | .750 | .453 | .032 | $0.25 | |
AN960C816L | NAS1149CO832R | 1/2 | .875 | .515 | .032 | $0.28 | |
AN960C916L | NAS1149CO932R | 9/16 | 1.062 | .578 | .032 | $0.42 | |
AN960C1016L | NAS1149CO1032R | 5/8 | 1.188 | .640 | .032 | $0.50 |
- JUMP TO
- Overview
- Reviews
- Q&A
- View in Catalog
Overview
| AN960 flat washers are used under hex nuts to provide a smooth bearing surface, as shims to obtain the correct grip length for a bolt and nut assembly, and to adjust the position of AN310 and AN320 castle nuts with respect to drilled cotter pin holes in bolts and clevis pins. Available in regular and light thickness. Light Series Washers: Add the letter "L" to dash number to indicate light series. AN960C-416L is a light series cadmium plated stainless steel washer for 1/4" dia. bolt. Light series washers must be manually input on order form. Less 20% for quantity 100/Part No. |
Reviews
Deliver justice ordered. Excellent quality.
Verified Purchase
AN960C516 Stainless Steel Washer
Verified Purchase
Stainless Steel Flat Washer AN960C10
Verified Purchase
Stainless Steel Flat Washer AN960C10
Verified Purchase
Stainless Steel Flat Washer AN960C8
Items arrived in perfect condition.
Verified Purchase
Stainless Steel Flat Washer AN960C10
Perfect, performed as expected
Verified Purchase
Stainless Steel Flat Washer AN960C10L
Perfect, performed as expected
Verified Purchase
AN960516L Stainless Steel Washer
Perfect, performed as expected
Verified Purchase
AN960C616L Stainless Steel Washer
Verified Purchase
Stainless Steel Flat Washer AN960C10L
Verified Purchase
Stainless Steel Flat Washer AN960C10
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
We have added a reference chart showing thickness, ID, and OD of the washers listed.
It is 300 series stainless but the actual alloy can vary per lot.
