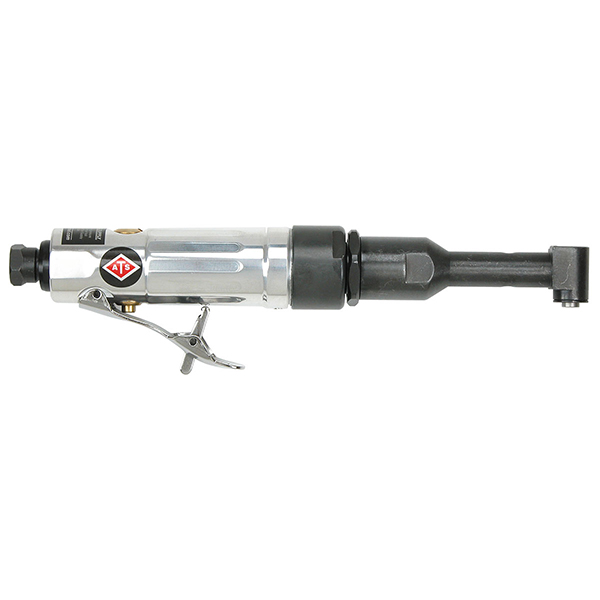

ATS 900 Angle Air Drill

$408.00/Each
Quantity
Add to Wishlist
Part# 12-01422
MFR Model# ATS6132

Overview

This is the drill you need to get into those tight spaces. It has a head height of just over an inch, and produces enough torque at 2800 RPM to drill through steel. Excellent speed control, and has a solid, well-balanced feel.

Specifications

  • Spindle 1/4”-28 Thread
  • Head Length 1.08” (2.7 mm)
  • 2,800 RPM • Head Width .65” (1.6 mm)
  • .33 hp (.25 kw)
  • 10” (254 mm) Overall Length
  • Variable speed control
  • 1.6 lbs (.73 kg)

Reviews

This 90 degree angle grill is fantastic! It is worth every penny. It is small and fits in just about everywhere and it is powerful. I have used this much more than I was expecting because it works so well. I am also able to use it on a small compressor. I highly recommend this drill. Everyone should have this in their toolbox.

Jimmy K Verified Purchase

ATS 90 Degree Angle Drill

June 4, 2024

Nice one. allows you to get into really tight spots.

Getpart L Verified Purchase

ATS 90 Degree Angle Drill

February 10, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Hi there, just bought this angle drill from Airspruce and now I´m needing the correct collets. Does the ANGLE DRILL COLLET & CHUCK KIT Part # 12-00368 work with this angle drill? Many thanks in advance. Marcus

Yes, the drill has female 1/4-28 threads, and the collets have male 1/4-28 threads.

Q: Does the ATS 900 ANGLE AIR DRILL have a forward and reverse? Also do I need to use special drill bits for this drill?

This is not reversible. It uses standard 1/4-28 threaded drills.

Q: Do you have a set of a drill bit for ATS 900 angle air drill?

Yes, we offer male threaded drill bits with 1/4-28 thread, 12-06002 for example.

Q: Hello, please let me know if the drill ATS 900 has a CE mark?

No it does not.
