Alpha Aviation 3 Ton Pro-Line Jack
$1087.00/Each
Part# 05-22912
MFR Model# 368W AIRCRAFT JACK
MFR Model# 368W AIRCRAFT JACK
Overview
|

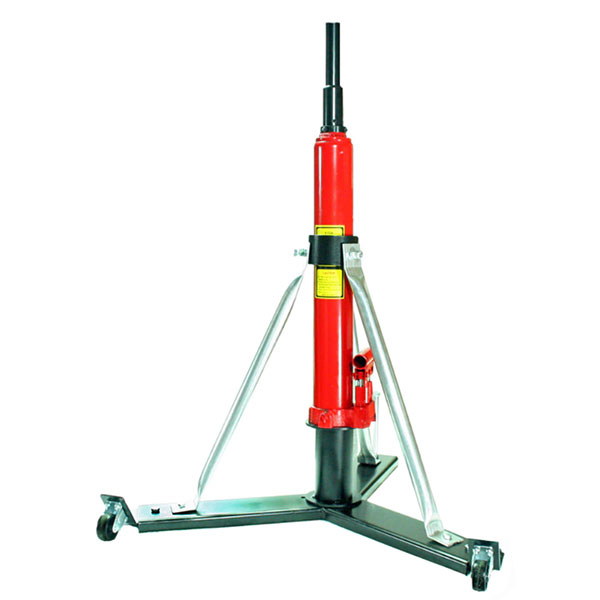

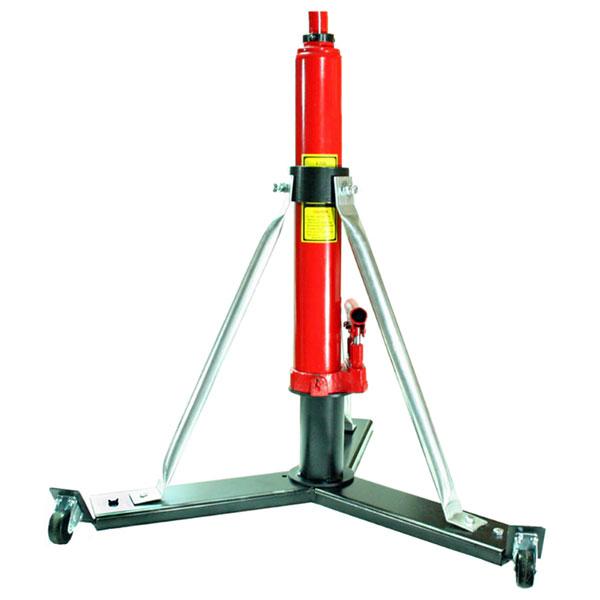

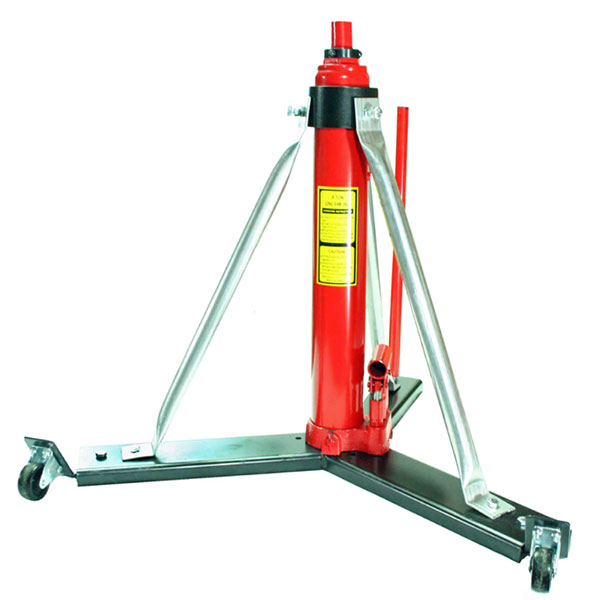

The ULTIMATE in versatile general aviation aviation jacks. When the need is for a versatile jack that can accommodate the needs of a busy FBO, the Model #368W is the choice. The Model #368W combines all the versatility of Model #838W with the necessary fittings to accommodate high wing Cessna aircraft such as 172RG, 177RG, 210. (Models 182RG and 337, see 868HLW), but in a 3 Ton version. Shipped with adapters, the unique design allows the Model #368W to easily convert from a 26" low wing jack through the 32" and 38" levels to a double-braced 62" or 68" high wing jack, avoiding the high cost of having to purchase model specific jacks.
Note: NOT RECOMMENDED FOR: Beech Model 99, Beech 1900, Citation Series, Cheyenne I/II/III/IV, Conquest King Air, Navajo, Pilatus, Queenaire, T28 due to untested side-load situations |
Features
- Purpose Built Cylinder
- Highly Versatile - Shipped with Adapters for 26", 32", 38", 62” and 68” Starting Heights
- Double Acting Pump - Moves on the Up and Down Strokes
- Oversized 1-1/4" Diameter Ram

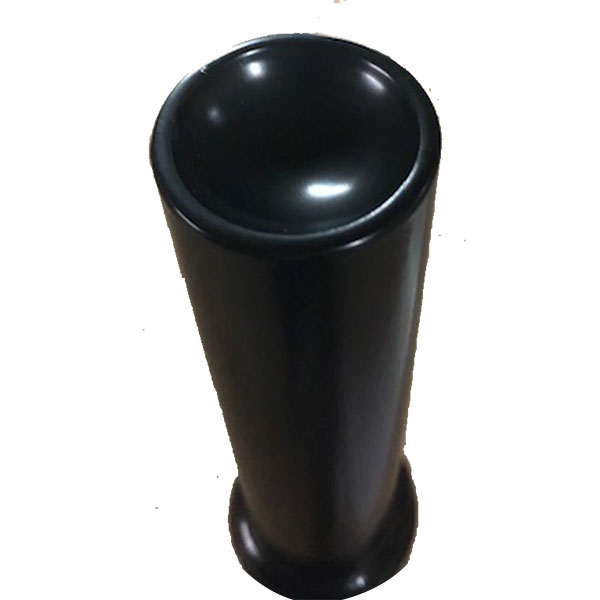

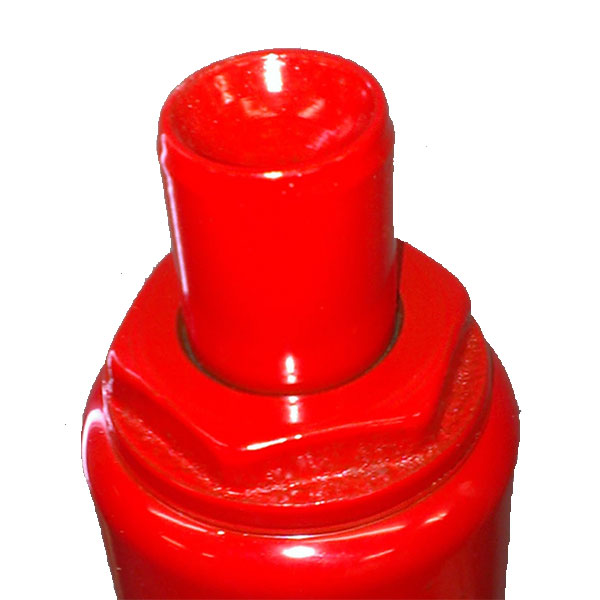

- Machined Lifting Surface - Concave Piston to Assure the Aircraft Stays On the Jack
- Stable Three Leg Design Clears the Gear Doors

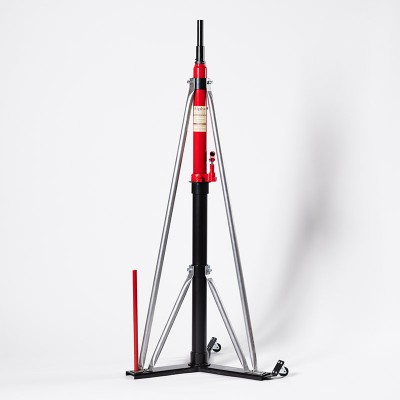

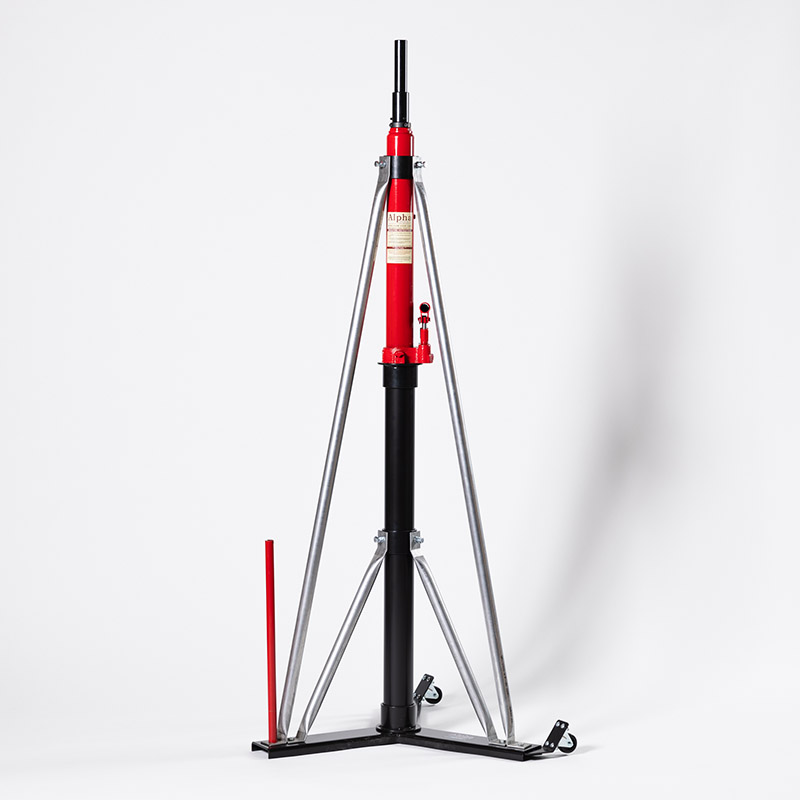

- Double Braced at the 62” and 68" Height for Stability
- Locking Safety Collar Secures the Load
- Pump Handle Storage Located on the Base
- Rugged Heavy Gauge Steel Base
- Braced with Heavy Gauge Industrial Tubing

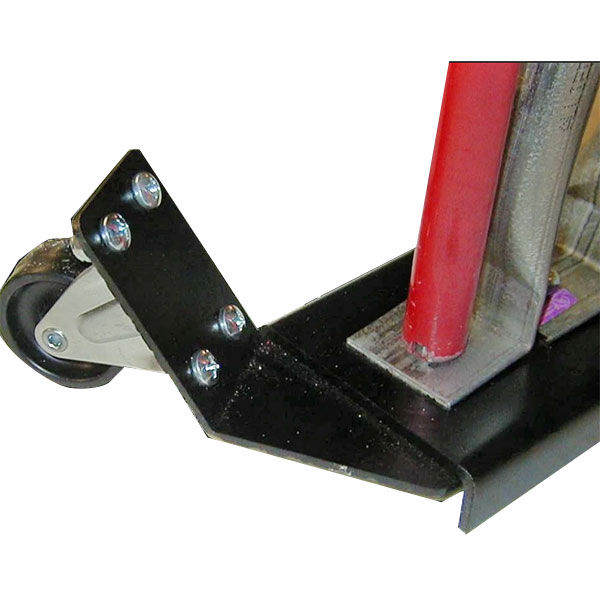

- Tilt & Go Wheels for Greater Mobility
- Laser Cut & Robotically Welded
- Powder Coated Surfaces
Specifications
- Jack Height: 26"- 45"
- Cylinder Capacity: 6000 lbs.
