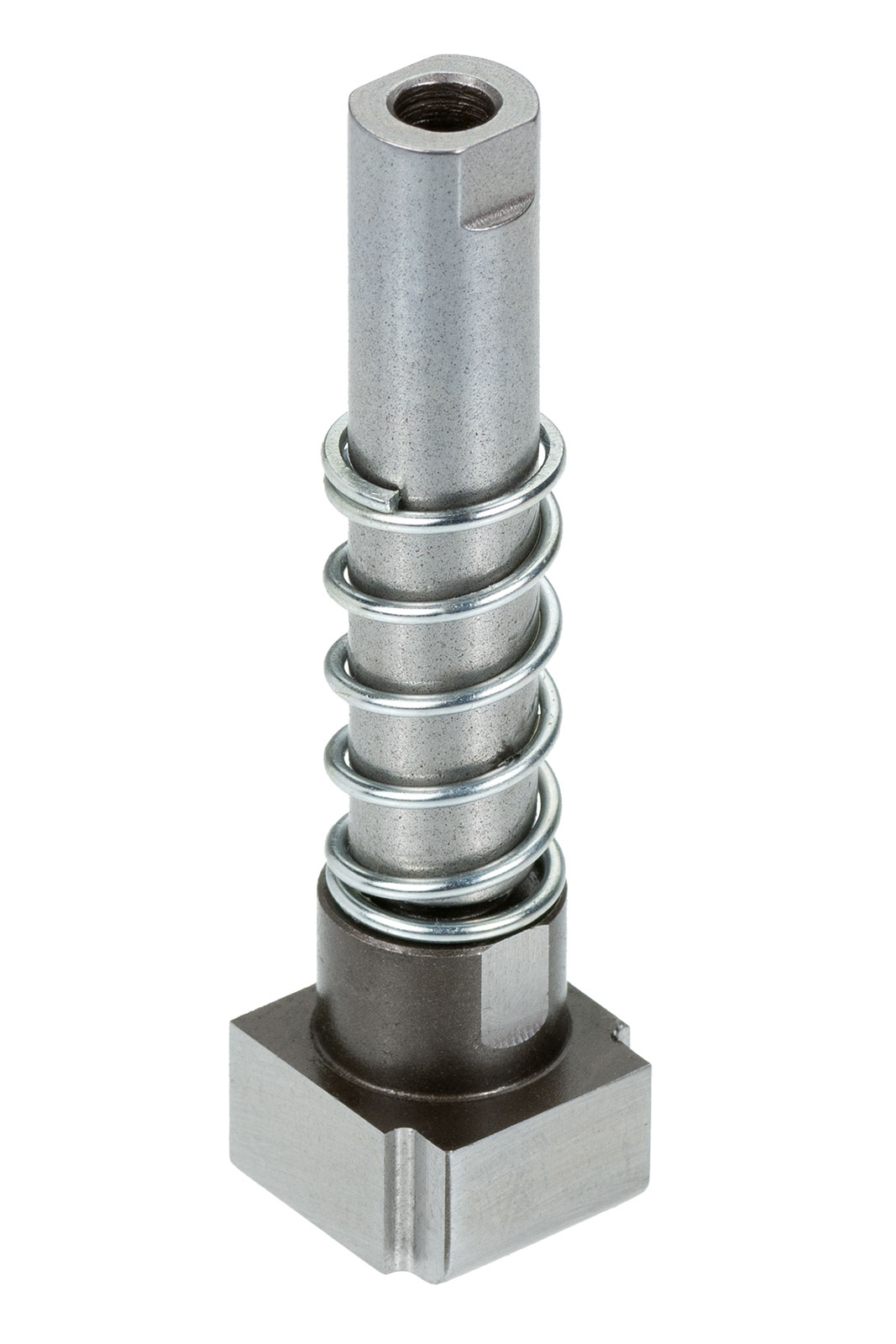

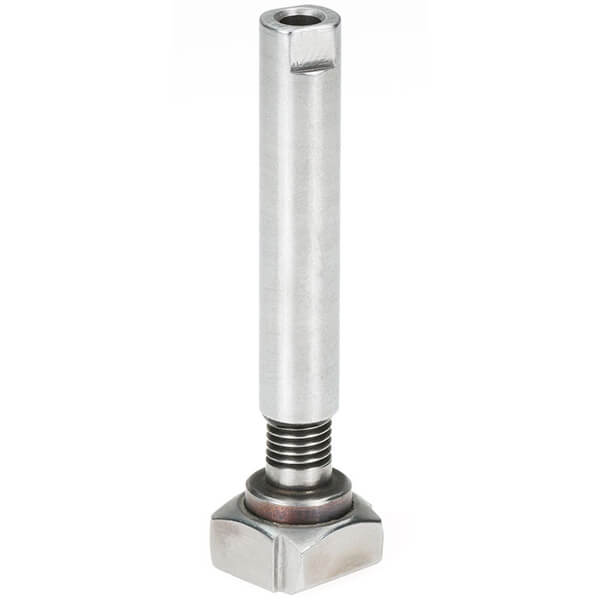

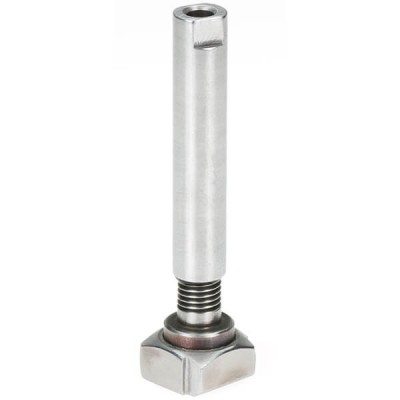

ATS Adjustable Squeezer Ram

$97.80/Each
Quantity
Add to Wishlist
Part# 12-04968
MFR Model# 214CAR

Overview

Adjustable ram eliminates the need for shims. Simply rotate the set holder until the desired clearance is reached and begin riveting. Made of hardened high strength steel and polished to minimize surface wear.

Features

  • Adjustable ram set holder for all 214C series riveters (ATS214C, CP214C, 214C).
  • Extends from 2.5" to 3" (1/2" full travel).
  • .040" travel per rotation.
  • Supports up to 6000lbs of force.
  • Hardened & polished surfaces to minimize wear on moving parts.

Specifications

  • 1 lbs (0.5Kg) shipping weight.

Reviews

This seems to fit my AATC 60C squeezer and it works really well. Well constructed. Quality part.

Scott B Verified Purchase

ATS 214Car Squeezer Ram

September 19, 2024

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the diameter of the ram?

0.375 inch diameter.

Q: Ive noticed the more expensive adjustable rams come with a tension spring. Does this one include a spring?

This does not include a spring.

Q: What are the dimensions of the square part? And shaft?

5/8 for the square and 2.5 for the shaft.

Q: Does this fit your tandem cylinder PRO PNEUMATIC C DOUBLE FORCE SQUEEZER?

Yes this will fit the ATS-114C kit. The squeezer is a 0214-C series squeezer.

Q: Will this work on a CP0214 ENGEL?

The 214CAR should work with the Chicago C riveters but will not work with the Chicago alligator riveters.

Q: Will this fit the Atlantic Air Tool C. 60C Pneumatic squeezer?

The p/n:12-04968 should work with the Atlantic Air Tool 60C series pneumatic squeezer.
