Vividia D3160 USB Digital One-Way Articulating Borescope
$894.00/Each
Part# 12-05428
MFR Model# D3160
MFR Model# D3160
Overview
|

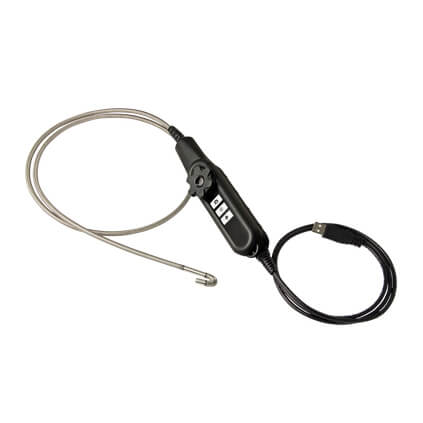

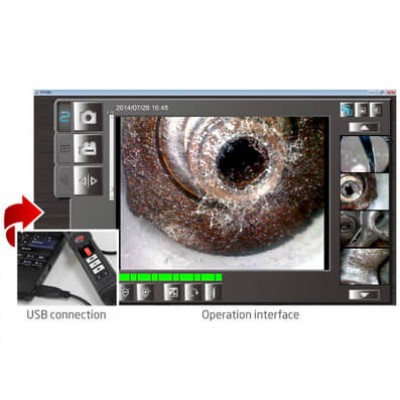

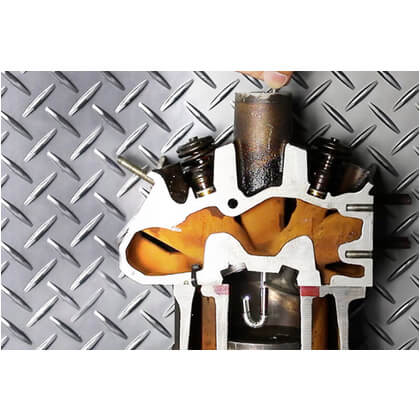

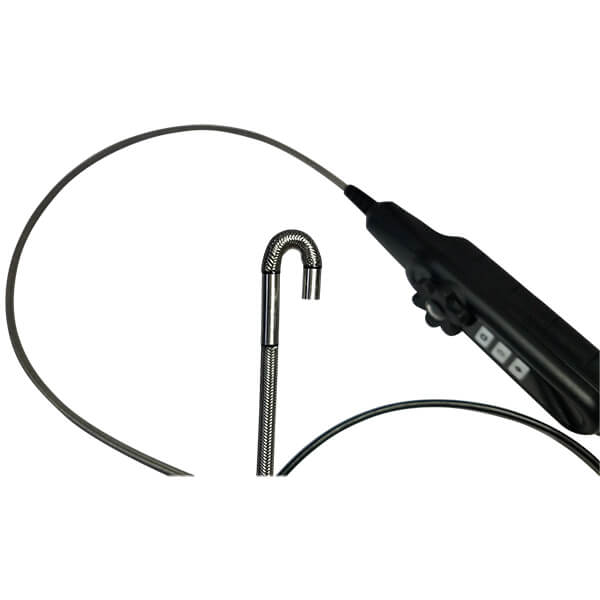

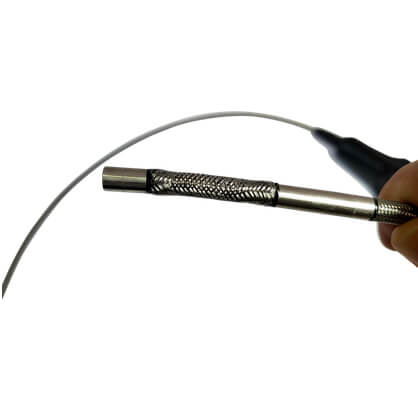

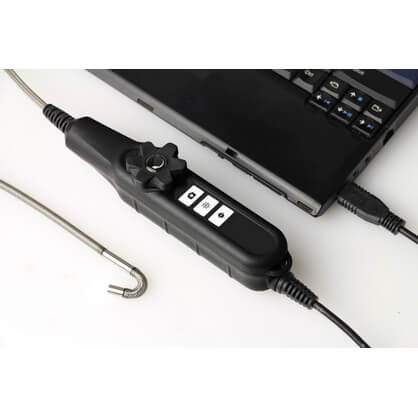

Vividia D3160 USB Digital One-Way Articulating Borescope has 5.9mm diameter camera probe and 1 meter long insertion tube (one-way articulation, 5.9mm diameter and 1 meter long, USB borescopes endoscope). D3160 can only be bent in one direction, and the maximum bending angle is ~180 degree. The insertion tube has metal braided outside layers and the bending part is also made with stainless steel, which offers good abrasion resistance. With USB connection, one can connect Vividia D3160 Digital Borescope to a Windows PC (WIndows XP, 7, 8 and 10), MacBook, android devices (phone or tablet) directly. With additional Vividia VA-B2 AirBox wireless converter and "AirBox-Vividia Ablescope", D3160 can be used with iPhone and iPad. End users can easily take pictures and videos with free software or app. The LED brightness can be adjusted. Vividia D3160 Articulating Borescope is an ideal tool for automotive, airplane, aviation, manufacturing, and instrument inspections. The smaller than 6.0mm diameter of D3160 makes it a good borescope for diesel engine inspection. Vividia D3160 USB Digital One-Way Articulating Borescope has 6mm diameter camera probe and 1 meter long insertion tube. D3160 can only be bended in one direction, and the maximum bending angle is ~180 degree. The insertion tube has metal braided outside layers and the bending part is also made with stainless steel, which offers good abrasion resistance. With USB connection, one can connect Vividia D3160 Digital Borescope to a Windows PC (WIndows XP, 7, 8 and 10), MacBook, android devices. Vividia D3160 Articulating Borescope is an ideal tool for automotive, airplane, aviation, manufacturing, and instrument inspections. The small diameter probe of D3160 borescope makes it good for diesel engine inspection. |
Specifications

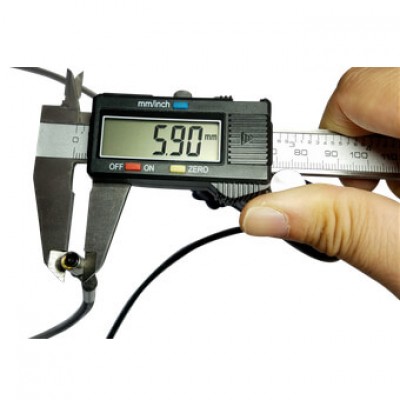

- Camera probe diameter: 6mm ( less than 0.236 inch)
- Insertion tube length: 1 meter (3 feet)

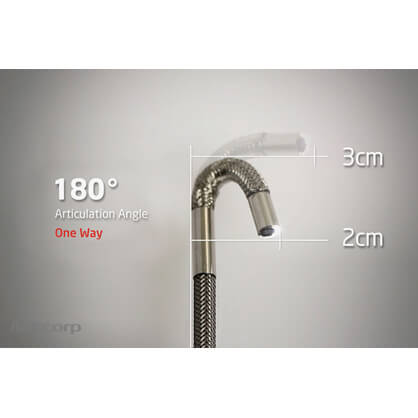

- Articulation angle: one-way 180º

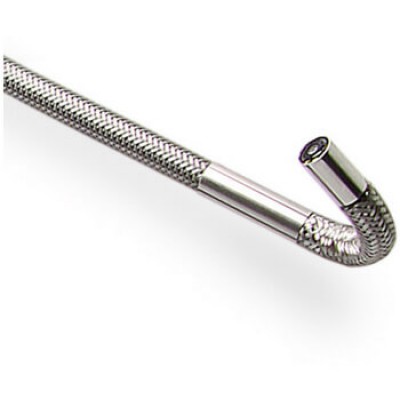

- Probe head material: stainless steel
- Insertion tube material: outer braided stainless steel
- Light source: Front white LEDs
- FOV: 87º
- DOF: 1cm~6cm

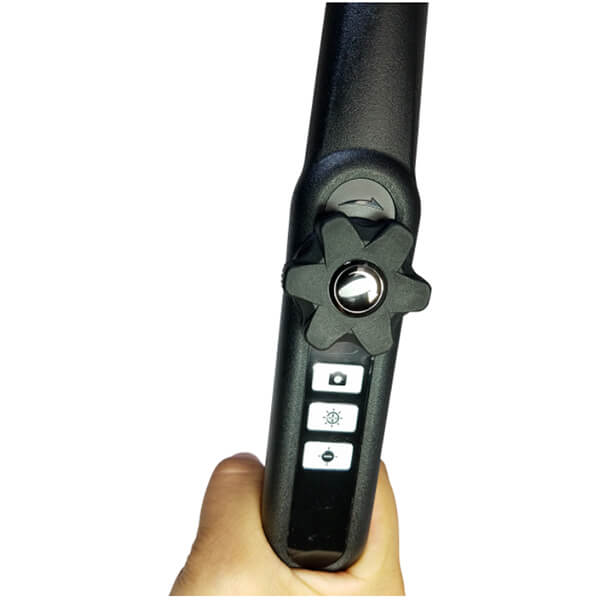

- Bottons: boost, image rotations
- Sensor Resolution: 640x480
- Video format: AVI
- Photo format: jpg
- USB Interface: USB2.0
- Compatible systems: Windows XP, 7/8/10
- Working temperature: -10ºC ~ 60ºC
- Storage temperature -10ºC ~ 60ºC
