Part Number | Cable Size (in.) | OD | Groove Dia. | Hub Dia. | Bore Dia. | Width | Price | Buy |
---|---|---|---|---|---|---|---|---|
MS20219A1 | 1/16, 3/32 | 1.312 | 1.00 | .423 | .2500 | .438 | $74.75 | |
MS20219A3 | 1/16, 3/32 | 1.750 | 1.438 | .769 | .6250 | .438 | $126.75 | |
MS20220A1 | 1/8, 5/32, 3/16 | 1.755 | 1.255 | .475 | .3125 | .625 | $102.75 | |
MS20220A2 | 1/8, 5/32, 3/16 | 3.005 | 2.505 | .115 | .3125 | .625 | $134.75 | |
MS20220A3 | 1/8, 5/32, 3/16 | 4.255 | 3.755 | .115 | .3125 | .625 | $201.95 | |
MS20220A4 | 1/8, 5/32, 3/16 | 5.505 | 5.005 | .115 | .3125 | .625 | $243.95 |

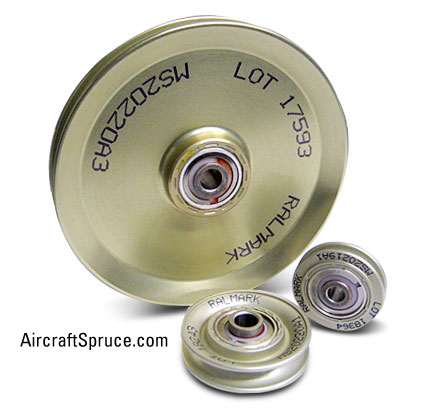

Dimensions of these aluminum pulleys are same as equivalent size of MS20219 and MS20220 phenolic pulleys. |
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
They do not. The brackets are usually an airframe part or fabricated by the owner/builder.
Yes these pulleys have bearings.
