Special Homebuilders Pulleys

10 Reviews 2 Answered Questions
Select Size:
1 1/2 in Pulley2 in Pulley
Quantity
Add to Wishlist

Overview

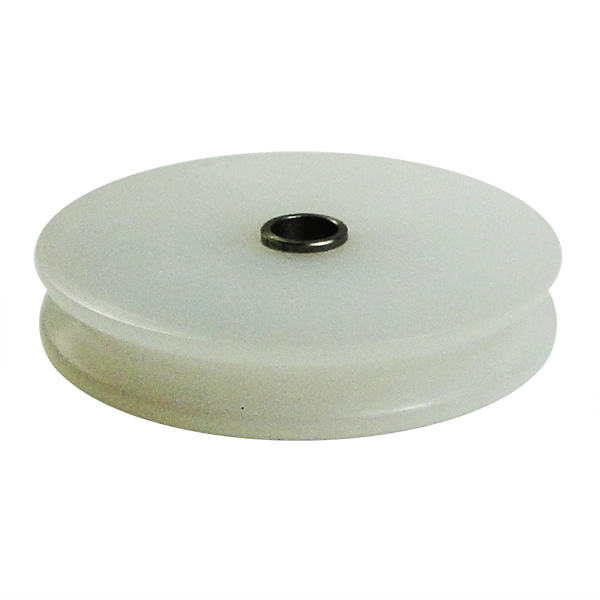

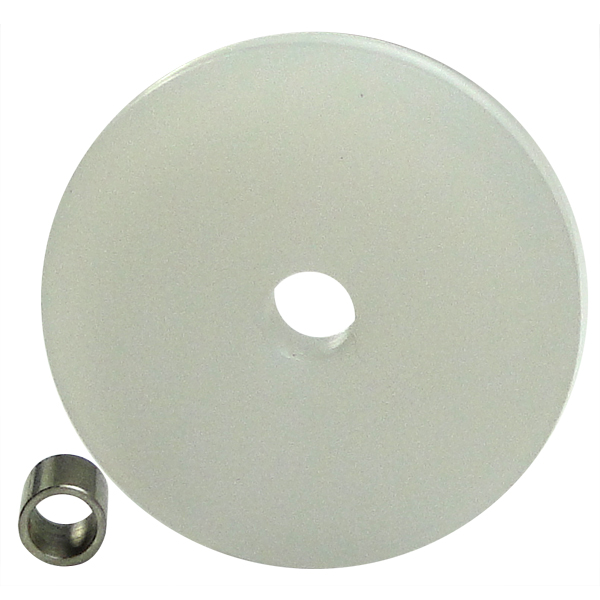

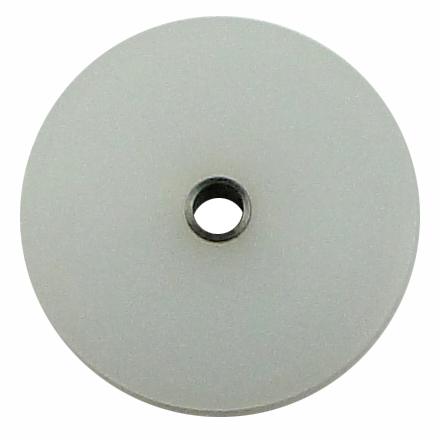

1-1/2 INCH PULLEY
For smooth control operation. Manufactured for aircraft float rudder operation, the pulleys can be used in virtually any application. Solid UHMW plastic for use in tough, caustic environments. Bushing insert is stainless steel with minimum lubrication required. Used with 1/16" thru 1/8" - 7x7 or 7x19 control cable. Bushing is clamped in pulley bracket. Pulley rotates on bushing. Pulley: 1-1/2" dia. x .283" wide. Bushing: 1/4" O.D. x 3/16" I.D. x .328" long. Weight: .26 oz. (including stainless bushing).

2 INCH PULLEY
Larger cables, bigger job? Wherever you need a tough, durable pulley, look no further.Replace your old worn out, sticky pulleys with NAP UHMW plastic for smooth control operation. Used with 3/32" thru 3/16" - 7x7 or 7x19 control cable. Bushing insert is stainless steel with minimum lubrication required. Bushing is clamped in pulley bracket. Pulley rotates on bushing. Fits DeHavilland Beaver floats Pulley: 2" dia. x .470" wide. Bushing: 5/16" O.D. x 1/4" I.D. x .487" long. Weight: .58 oz. (including stainless bushing).

  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Submit a Review

Great for aircraft float riging

Margo B Verified Purchase

Homebuilders 1-1/2 In Pulley
July 27, 2023

Good quality for low force applications.

Flight E Verified Purchase

Homebuilders 1-1/2 In Pulley
April 30, 2023

Works great for float cabling at a reasonable price.

Berry S Verified Purchase

Homebuilders 1-1/2 In Pulley
October 19, 2022

perfect for water rudder cables

Central A Verified Purchase

Homebuilders 1-1/2 In Pulley
October 14, 2022

exelent

Jorge L Verified Purchase

Homebuilders 1-1/2 In Pulley
March 4, 2022

Hugues V Verified Purchase

Homebuilders 1-1/2 In Pulley
May 28, 2021

Good replacement option for F. Atlee Dodge float rudder pulleys that have worn out. These pulleys have a stainless bushing that Atlees dont have which allows a precise non binding fit to the pulley bracket.

Knikflyer
May 18, 2020

I needed these for the halyard sheaves on the masthead of a sailboat, they are the perfect size, a good price and good quality.

Matthew L
September 22, 2017

pretty much exactly what i was looking for. It was unclear to me that the bore in the phenolic was 1/4 and the ss bushing reduced the bore.

Richard N
June 26, 2020

The pulley is great. No issues. Would be 5 stars if there were also a matching support. I understand its hard to make a universal support.

Ken L
January 5, 2018

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the diameter the diameter of the bottom of the groove for the cable, or the diameter of the pulley overall?

That is the outer diameter. The groove diameter is 1-5/16.

Q: Are these pulleys made in the USA?

Yes, these are made in the USA.
