Description | Tubing O.D. | I.D. +/- 0.010 |
O.D. +/- 0.010 |
Dash No. Aluminum |
Buy Aluminum |
Dash No. Copper |
Buy Copper |
---|---|---|---|---|---|---|---|
AN901 O-Ring | 1/4 | 0.443 | 0.683 | -4A | $2.21 | -4C | $13.50 |
AN901 O-Ring | 5/16 | 0.505 | 0.745 | -5A | $5.99 | -5C | $9.85 |
AN901 O-Ring | 3/8 | 0.568 | 0.808 | -6A | $1.20 | -6C | $14.70 |
AN901 O-Ring | 1/2 | 0.755 | 0.995 | -8A | $0.91 | -8C | $17.60 |
AN901 O-Ring | 5/8 | 0.880 | 1.120 | -10A | $3.80 | -10C | $6.80 |
AN901 O-Ring | 3/4 | 1.068 | 1.370 | -12A | $0.59 | -12C | $6.60 |
AN901 O-Ring | 1 | 1.318 | 1.620 | -16A | $2.31 | -- | -- |

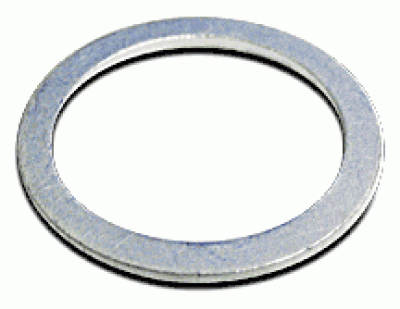

AN901 tube connection seals are fabricated from type1100 alum., H14 temper. |
good fit
AN Gasket AN901-5A
AN Gasket AN901-5A
Its washer, nothing special. This is for an O-320-E2A oil cooler elbow.
AN Gasket AN901-8A
Great price and availability!
AN Gasket AN901-5A
Goes with AN6287-1 strut valve that comes out to service with 5606,Granville strut seal and N2. Make sure valve has the rubber o-ring (comes with) when it gets put back and torqued. Low cost get a few.
AN Gasket AN901-5A
AN Gasket AN901-5A
AN Gasket AN901-5A
