Aurora Cm-S & Cb-S

4 Reviews 1 Answered Question
From $14.50 to $58.75
Main Image
Orientation Part Number Price Buy
Right HandCM-3S$14.65
Quantity
Left Hand
CB-3S
$14.50
Quantity
Right HandCM-4S$14.65
Quantity
Left Hand
CB-4S
$14.50
Quantity
Right HandCM-5S$16.50
Quantity
Left HandCB-5S$14.50
Quantity
Right HandCM-6S$15.65
Quantity
Left HandCB-6S$15.75
Quantity
Right HandCM-7S$18.85
Quantity
Left HandCB-7S$15.65
Quantity
Left HandCB-8S$17.75
Quantity
Right HandCM-10S$25.50
Quantity
Left HandCB-10S$24.70
Quantity
Right HandCM-12S$58.75
Quantity
Left HandCB-12S$41.65
Quantity
Subtotal $0.00
Add to Wishlist

Overview


CM-S & CB-S Series Male Rod Ends with Studs, General Purpose - Economy
  • Body - Carbon steel, protective coated for corrosion resistance.
  • Ball - Sintered steel, heat treated, oil impregnated.
  • Stud - Carbon steel, protective coated for corrosion resistance.Right hand threads are standard.
  • Alternate Ball - Alloy steel, heat treated, hard chrome plated.
  • Grease Fitting available for sizes -6 and up. Units are supplied without grease fittings. When a grease fitting is required, specify by adding suffix "Z" or "F". Ex.: CM-6SZ = Zerk Type Fitting CM-6SF = Flush Type Fitting.
  • Optional grease fitting is supplied, standard, in right hand location as illustrated (with stud facing you). Specify if left hand location is desired.
  • Please contact the Engineering Department for load capacities.

Reference Chart


Rod End No.

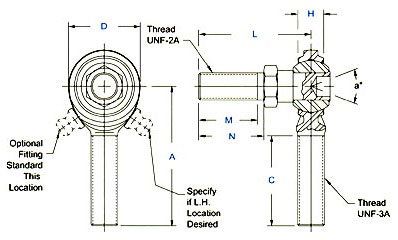

SEE DIAGRAM ABOVE
Right Hand
Left Hand
H
(IN.)
A
(IN.)
D
(IN.)
C
(IN.)
L
(IN.)
N
(IN.)
M
(IN.)
Thread Size
a
(DEG.)
CM-3S*
CB-3S*
.234
1.250
.625
.750
1.000
.500
.437
10-32
50
CM-4S*
CB-4S*
.250
1.562
.750
1.000
1.031
.562
.500
1/4-28
50
CM-5S*
CB-5S*
.312
1.875
.875
1.250
1.219
.687
.593
5/16-24
50
CM-6S
CB-6S
.359
1.938
1.000
1.250
1.562
.906
.812
3/8-24
50
CM-7S
CB-7S
.406
2.125
1.125
1.375
1.750
1.062
.937
7/16-20
50
CM-8S
CB-8S
.453
2.438
1.312
1.500
2.000
1.125
1.000
1/2-20
50
CM-10S
CB-10S
.484
2.625
1.500
1.625
2.500
1.500
1.375
5/8-18
50
CM-12S
CB-12S
.593
2.875
1.750
1.750
3.000
1.812
1.625
3/4-16
50
* Grease fittings not available on these sizes. Units are supplied without grease fittings.
