Homebuilders Throttle Quadrants Model 2 - Internal Non Reversing

From $108.75 to $190.75
Size Description Part No. Price Buy
StandardSingle Lever Quadrant
05-15920
$108.75
Quantity
StandardSingle Lever Quadrant w/Friction
05-15920-F
$129.75
Quantity
StandardSingle Lever Quadrant w/T-Bar
05-15920-1
$132.75
Quantity
StandardSingle Lever Quadrant w/T-Bar, w/Friction
05-15920-1F
$153.75
Quantity

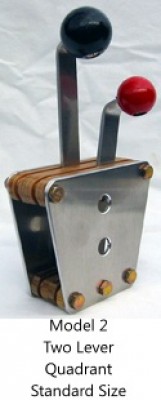

StandardTwo Lever Quadrant
05-15925
$114.75
Quantity
StandardTwo Lever Quadrant w/Friction
05-15925-F
$145.80
Quantity

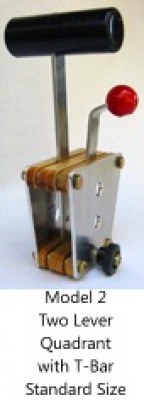

StandardTwo Lever Quadrant w/T-Bar
05-15925-1
$139.95
Quantity
StandardTwo Lever Quadrant w/T-Bar, w/Friction
05-15925-1F
$163.75
Quantity
StandardThree Lever Quadrant
05-15930
$129.75
Quantity
StandardThree Lever Quadrant w/Friction
05-15930-F
$151.75
Quantity
StandardThree Lever Quadrant w/T-Bar
05-15930-1
$154.75
Quantity
StandardThree Lever Quadrant w/T-Bar, w/Friction
05-15930-1F
$178.75
Quantity
LargeSingle Lever Quadrant
05-02414
$130.75
Quantity
LargeSingle Lever Quadrant w/T-Bar
05-02414-1
$144.75
Quantity
LargeThree Lever Quadrant w/Friction
05-02417
$154.75
Quantity
LargeSingle Lever Quadrant w/Friction, w/T-Bar
05-02417-1
$154.85
Quantity
LargeTwo Lever Quadrant
05-02415
$129.75
Quantity
LargeTwo Lever Quadrant w/T-Bar
05-02415-1
$154.75
Quantity
LargeTwo Lever Quadrant w/Friction, w/T-Bar
05-02418-1
$182.90
Quantity
LargeThree lever Quadrant
05-02416
$154.75
Quantity
LargeThree Lever Quadrant w/T-Bar
05-02416-1
$168.75
Quantity
LargeThree Lever Quadrant w/Friction
05-02419
$178.75
Quantity
LargeThree Lever Quadrant w/T-Bar, w/ Friction
05-02419-1
$190.75
Quantity
3/4Single Lever Quadrant
05-02422
$108.75
Quantity
3/4Single Lever Quadrant w/Friction
05-02430
$127.80
Quantity
3/4Single Lever Quadrant w/Friction, w/T-Bar
05-02430-1
$147.75
Quantity
3/4Two Lever Quadrant
05-02423
$115.85
Quantity
3/4Two Lever Quadrant w/T-Bar
05-02423-1
$139.95
Quantity
3/4Two Lever Quadrant w/Friction
05-02431
$150.75
Quantity
3/4Two Lever Quadrant w/Friction, w/T-Bar
05-02431-1
$148.80
Quantity
1/2Single Lever Quadrant
05-02426
$120.75
Quantity
1/2Single Lever Quadrant w/T-Bar
05-02426-1
$131.75
Quantity
1/2Single Lever Quadrant w/Friction
05-02434
$144.75
Quantity
1/2Single Lever Quadrant w/Friction, w/T-Bar
05-02434-1
$154.75
Quantity

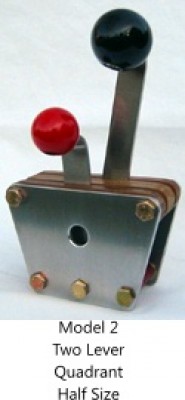

1/2Two Lever Quadrant
05-02427
$126.75
Quantity
1/2Two Lever Quadrant w/T-Bar
05-02427-1
$140.75
Quantity
1/2Two Lever Quadrant w/Friction
05-02435
$150.75
Quantity
1/2Two Lever Quadrant w/Friction, w/T-Bar
05-02435-1
$163.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

These quality quadrants have been in use for over 35 years in a wide variety of experimental and ultralight aircraft. All quadrants are made with AN standard hardware and aircraft-quality 6061-T6 or 2024-T3 Aluminum. All sizes and models can be utilized for a side mount, center mount, or dual-control hookup. Can be used in Pitts, Cub, Aeronca, Bakeng Deuce, Horizon 2, Dakota Hawk, Quicksilver, Mini Max, Dragonfly, X-Air, etc. If you have an aircraft, we have a quadrant that will fit your needs.

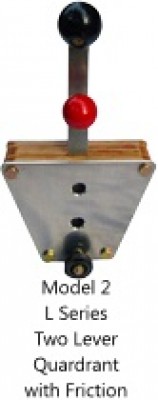

Model #2 - This internal non-reversing hookup quadrant is often used on the RV series and similar aircraft. Available in all four sizes with one, two or three levers. Friction or non-friction. L-series can achieve a throw up to 2-5/8".

Four sizes available:
Special series quadrants:
Large Series 4-78" wide x 4" tall. 13 oz.
Standard Series 4" wide x 3-1/2" tall. 11 oz.
3/4 series 3-7/8" wide x 3" tall. 10 oz.
1/2 series 3-7/8" wide x 2-5/8" tall. 8 oz.
RV-series 4" wide x 4" tall. 12 oz.
Panel Mount
4" wide x 3-1/2" tall 12 oz.
Twin Engine
4-7/8" wide x 4" tall 15 oz.
All weights are for two arms and friction. (Except twin engine).
Measurements do not reflect Lever lengths.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

You can adjust the friction knob by removing or adding washers between the lever spacers. This makes it more or less sensitive per rotation of the friction knob. Well machines parts. Uses AN3 bolts and appropriate washers.

Jesse W Verified Purchase

Quad Int N/R 2Lvr With Fr S2Nri-F

October 9, 2024

QUAD 1/2 N/R INT (1/2-2NRI) Im building a Zenith 750 SD. This throttle control is perfect for panel mounting. Any larger would be too big. Well made!

Kenneth E
June 16, 2020

Excellent as described and fast shipping

Wesley D
August 15, 2019
