- Photo may represent series and not specific product
- SHARE
| Description | Part No. | Price | Buy |
|---|---|---|---|
| Single Lever Quadrant | 05-15905 | $109.90 | |
| Single Lever Quadrant w/Friction | 05-15905-F | $130.75 | |

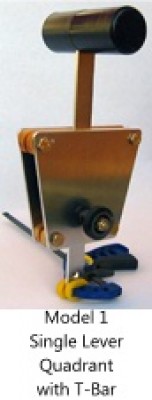

| Single Lever Quadrant w/ T-Bar | 05-15905-1 | $132.75 | |
| Sinle Lever Quadrant w/T-Bar, w/Friction | 05-15905-1F | $154.75 | |
| Two Lever Quadrant | 05-15910 | $120.75 | |
| Two Lever Quadrant w/Friction | 05-15910-F | $144.75 | |
| two Lever Quadrant w/T-Bar | 05-15910-1 | $139.95 | |
| Two Lever Quadrant w/T-Bar, w/Friction | 05-15910-1F | $160.75 | |

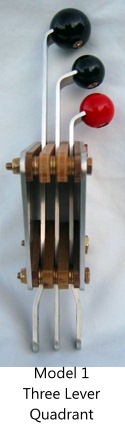

| Three Lever Quadrant | 05-15915 | $129.75 | |
| Three Lever Quadrant w/Friction | 05-15915-F | $151.75 | |
| Three Lever Quadrant w/T-Bar | 05-15915-1 | $154.75 | |
| Three Lever Quadrant w/T-Bar, w/Friction | 05-15915-1F | $178.75 |
Overview
|
These quality quadrants have been in use for over 35 years in a wide variety of experimental and ultralight aircraft. All quadrants are made with AN standard hardware and aircraft-quality 6061-T6 or 2024-T3 Aluminum. All sizes and models can be utilized for a side mount, center mount, or dual-control hookup. Can be used in Pitts, Cub, Aeronca, Bakeng Deuce, Horizon 2, Dakota Hawk, Quicksilver, Mini Max, Dragonfly, X-Air, etc. If you have an aircraft, we have a quadrant that will fit your needs. Model #1 -This external reversing quadrant is our most popular for dual-control hookup. It can also be used as a single hookup. Available in S-series only. One, two or three levers. Friction or non-friction.
|
||||||
Reviews
Excellent service !!
Verified Purchase
Quad Ext Rev 3 Lvr With Fr S3R-F
Not the most robust, but levers are smooth and I think it was worth trying out for the cost.
Verified Purchase
Quad Ext Rev 3 Lvr With Fr S3R-F
I like the unit but the middle knob broke in two . It is a wooden ball ? Split in two . Should be plastic knobs . I need a replacement knob but it does not state the material it is made of ? Would rather have plastic knobs and would be willing to pay more up front .
The fiber spacers are unfinished on the edges. They are rough cut and do not conform with the curvature of the aluminum plates. This can be rectified with a bit of work to sand and polish the rough cut and make them conform but that should be done in production. The lack of space between the levers presents a challenge for fitting two clevis adjacent to one another. The Clevis size to use would be useful in the Accessories tab of the product. If such a clevis exists. Without that information one cannot be sure if these may be used without a lot of work.
