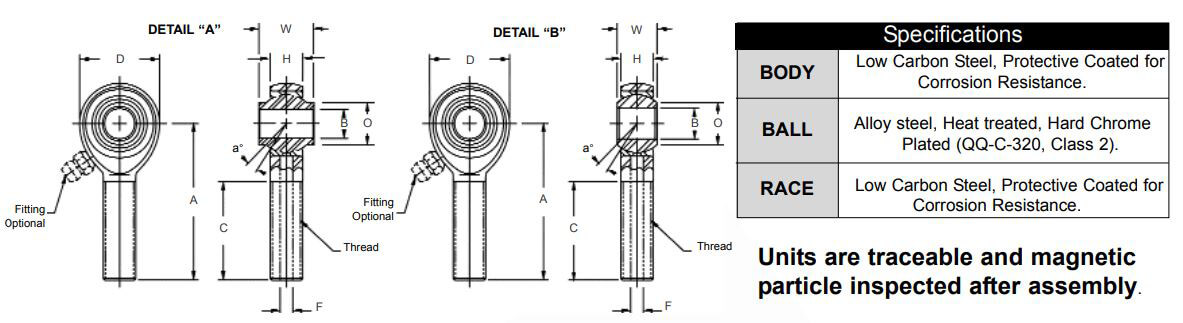

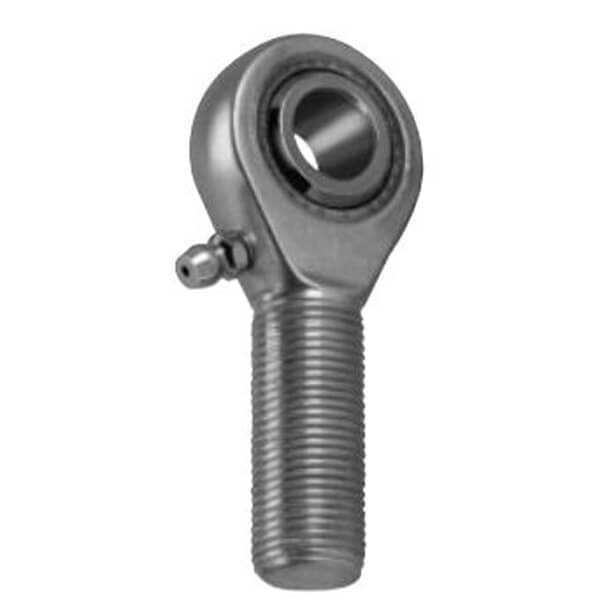

Rod Ends male threaded (M M Series)
Example: MD46-15M (no grease) - MD46-15MG (with grease) Note 2: MDL46-16 is no longer available from manufacturer. Only "new surplus" is available. Please use part number 04-02276 to order. Attention: Subject to price & availability of Heim brand bearings, equivalent bearings may be furnished. |
Specification Chart
| Aurora P/N | Heim P/N | Thread Type | Ball Shoulder Configuration | B (IN.) | W (IN.) | H (IN.) | A (IN.) | D (IN.) | O (IN.) Shoulder Dia. Ref. | Ball Dia. Ref. (IN.) | C Min. (IN.) | F (IN.) Drilled Hole Dia. Ref. | Thread UNF-3A (IN.) | a° Misalign Angle (IN.) | Ultimate Radial Static Load Capacity | Approx. Brg. Wt. Lbs. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GMM-3M-470 | M34-14M | Right Hand | See Detail "A" | .1900 | .437 | .281 | 1.562 | .750 | .315 | .500 | .969 | - | 1/4-28 | 17 | 2,158 | .05 |
| GMM-3M-670 | MD36-14M | Right Hand | See Detail "A" | .1900 | .437 | .328 | 1.375 | .750 | .315 | .500 | .750 | .113 | 3/8-24 | 10 | 2,850 | .08 |
| GMM-4M-470 | M44-14M | Right Hand | See Detail "B" | .2500 | .437 | .304 | 1.562 | .812 | .353 | .562 | .969 | - | 1/4-28 | 18 | 2,158 | .07 |
| GMM-4M-570 | MD46-15 | Right Hand | See Detail "B" | .2500 | .484 | .335 | 1.500 | .875 | .395 | .625 | 1.500 | 2.312 | 3/8-24 | 18 | 3,160 | .11 |
| GMM-4M-675 | MD46-15M | Right Hand | See Detail "B" | .2500 | .484 | .335 | 2.312 | .875 | .395 | .625 | 1.500 | .136 | 3/8-24 | 18 | 3,160 | .11 |
Units are supplied without grease fittings. When grease fittings are required, specify by adding suffixes as designated.
Z Zerk type fitting Ex: GMW-3MZ-470 F Flush type fitting Ex: GMW-3MF-470
