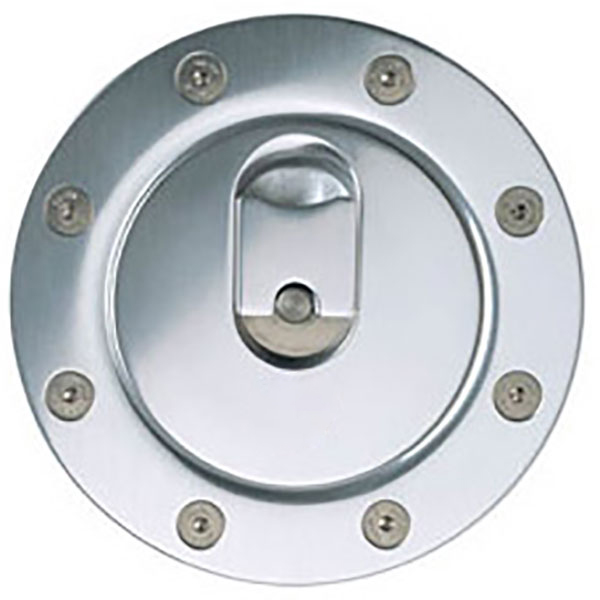

Newton Aero 400 Fuel Cap - 8 Bolt

1 Review 0 Answered Questions
Select Version:
Non-Locking (S) Locking (L)
Quantity
Add to Wishlist

Overview

The Aero 400 is available with a locking (L) or non-locking (S) option. The locking type can be supplied with matching key numbers.

Newton Equipment Flush Cap, A48S, 3". This flush cap features a 8 bolt pattern and a 4" bolt center.

Specifications

  • Options: Non-Locking.
  • Fixing Arrangement: 8 x M5 Countersunk Bolts
  • Applications: Fuel, Oil & Water Tanks
  • Finish: Centre: Anodised Clear (Silver)
  • Weight: 194 g
  • Centre-Forging: Aluminium Alloy 6082
  • Flange: Aluminium Alloy 6082/T6
  • O Ring: Viton A
  • Saddle: Acetal
  • Outside Diameter A: 120.0 mm
  • Centre Diameter B: 76.5 mm
  • Bolt Circle Dia. (PCD): 101.6 (4")
  • Overall Depth I: 33.2 mm
  • Internal Bore Diameter: 58.0 mm
  • Spigot Diameter: 83.0 mm
  • Neck Diameter: N/A
  • Flange Thickness: 3.00 mm
  • Fixing Ring: FR48 or FR48S
  • O Ring Overhaul Kit: OHK4
  • Replacement Keys: N/A
  • Screw Pack: SP48
  • Unleaded Restrictor Assembly: N/A
  • Retention Cable Assembly: RCA16160
  • Aluminum Saddle: SAD4M
  • Other Anodised Colours: BLACK
  • (Note: Special Order Only)

Documents

In The Box

  • 1 - Nitrile bonded Cork Gasket
  • 8 - M5 x 12mm S/S screws
  • 8 - Washers
  • 8 - Nylock Nuts

Reviews

Submit a Review

Excellent quality in this product Fast shipping and a very smooth transaction Catalog was a nice gesture as well

Edward B Verified Purchase

Aero 400 Non-Lckg Cap 8 Hole
February 16, 2022
