Open Center Channel

Select Model:
Molding #4Molding #7
Quantity
Add to Wishlist

Overview

Note: Both model #4 and #7 channel and molding are priced and sold by the foot.

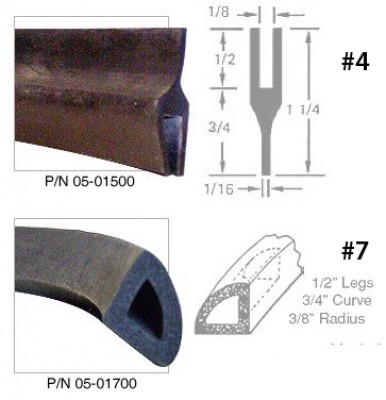

#4: 1-1/4" wide with an 1/8" x 1/2" long groove, manufactured in 12ft lengths.

#7 Neoprene sponge rubber 1/4-round door seal. 1/2” Legs, 3/4” Curve, 3/8” Radius. Hollow core makes a better seal. Manufactured in 25 Ft. lengths.

Reviews

Good quality molding, fast delivery, be sure to pay close attention to the published dimensions as this turned out to be too thick for my purpose.

Edward R Verified Purchase

Rubber Channel & Molding

December 1, 2024

Returned, would not work for my application, good product, good return policy.

David A Verified Purchase

Rubber Channel & Molding

April 20, 2023

++++++

Willy U Verified Purchase

Rubber Channel & Molding

June 16, 2021

ok

Jean-marc L
June 5, 2020

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Open Center Channel (Part Number 05-01500): Can you please confirm that this item is in fact a 'Y' shaped rubber channel? The ordering page is confusing with its mention of #4 and #7 which seem to refer to the D shaped 90 degree tube.

Part number 05-01500 is a Y shaped rubber channel. 05-01700 is the D shaped material.

Q: Can you recommend a sealant to use with this channel for sealing to a windshield and to painted aluminum surface?

You can use some of the 3M Weatherstrip Adhesive P/N# 09-27200 or the Fast Tack Trim Adhesive would for you as well P/N# 09-27210.

Q: Is the #4 molding, part number 05-01500 the same that is used for the Vans RV-8 seal between the wing trim panel and the fuselage?

We do not know if this is the exact product Vans uses but this product is commonly used for this application by our customers.
