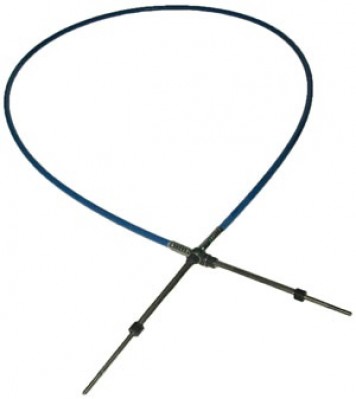

Piper Throttle Controls

Select Part:
455-13912693-04455-350455-333455-322455-360455-358455-344
Quantity
Add to Wishlist

Overview

Reference Chart

THROTTLE CONTROLS
Model
Serial #
P/N
Our P/N

PA20,PA20S,PA20-115

20-1 thru 20-933
455-139
05-01743
PA20S-115,PA20-135
20-934 thru 20-1121
455-139
05-01743
PA20S-135
20-934 thru 20-1121
455-139
05-01743
PA22 (125hp)
22-1 thru 22-533
455-139
05-01743
PA22-135
22-534 thru 22-2377
455-139
05-01743
PA22-135
22-2379 thru 22-2424
455-139
05-01743
PA22-135,PA22S-135
22-2378, 22-2425 thru 22-3217
12693-04
05-02209
PA22-135,PA22S-135
22-3219 thru 22-3386
12693-04
05-02209
PA22-150,PA22S-150
22-2378, 22-2425 thru 22-7642
12693-04
05-02209
PA22-160,PA22S-160
22-5139, 22-5603 thru 22-7642
12693-04
05-02209

PA22-108

22-8000 and On
12693-04
05-02209
PA28-140
28-20002 thru 28-24999
12693-04
05-02209
PA28-150
28-1 thru 28-4377
12693-04
05-02209
PA28-151
28-7415001 thru 28-7715314
455-350
05-01745

PA28-160

28-1 thru 28-4377
12693-04
05-02209
PA28-161
28-7716002 thru 28-8616057
455-350
05-01745
PA28-161
2816001 thru 2816110 (Less 2816066
455-350
05-01745

PA28-161 Cadet

2841001 and On
455-350
05-01745
PA28-180
28-671 thru 28-4377
12693-04
05-02209
PA28-180
28-4378 thru 28-5152
455-333
05-01746
PA28-180
28-5153 thru 28-5869
455-350
05-01745

PA28-180

28-7105001 thru 28-7505261
455-350
05-01745
PA28R-180
28R-30005 thru 28R-30481
455-322
05-01747
PA28R-180
28R-30483 thru 28R-31279
455-322
05-01747

PA28R-180

28R-7130001 thru 28R-7130019
455-322
05-01747
PA28-181
28-7690001 thru 28-8290174
455-350
05-01745

PA28-181

28-8390001 and On
455-350
05-01745
PA28-201T
28-7921001 thru 28-7921095
455-322
05-01747
PA28R-200
28R-30482,28R-35001 thru 28R-35830
455-322
05-01747
PA28R-200
28R-7135001 thru 28R-7635545
455-322
05-01747

PA28R-201

28R-7737002 thru 28R-7837317
455-322
05-01747
PA28R-201
2837001 thru 2837061
455-322
05-01747
PA28R-201T
28R-7703002 thru 28R-7803372
455-322
05-01747
PA28R-201T
2803001 thru 2803015
455-322
05-01747

PA28RT-201

28R-7918001 thru 28R-8018116
455-322
05-01747
PA28RT-201
28R-8118001 and On
455-322
05-01747
PA28RT-201T
28R-7931001 thru 28R-8031188
455-322
05-01747
PA28RT-201T
28R-8131001 and On
455-322
05-01747
PA28-235

28-10003 thru 28-11039

12693-04
05-02209

PA28-235

28-11040 thru 28-11393
455-333
05-01746
PA28-235
28-7110001 thru 28-7210033
455-333
05-01746
PA28-235
28-7310001 thru 28-7710089
455-333
05-01746
PA28-236
28-7911001 thru 28-8211060
455-333
05-01746
PA28-236
28-8311001 and On 455-333
455-333
05-01746

PA32-260

32-1111 thru 32-1320 455-360
455-360
05-01748
PA32-260
32-7100001 thru 32-7800008 455-360
455-360
05-01748
PA32-300
32-40566 thru 32-41018
455-358
05-01749
PA32-300
32-7140001 thru 32-7940282
455-358
05-01749

PA32-301

32-8006001 thru 32-8406020
455-358
05-01749
PA32-301
32-8506001 and On
4455-358
05-01749
PA32-301T
32-8024001 thru 32-8424002
455-344
05-01750
PA32-301T
32-8524001 and On
455-344
05-01750
PA32R-301T
32R-8029001 thru 32R-8229078
455-360
05-01748
PA32R-301T
32R-8329001 and On
455-360
05-01748
PA32RT-300T
32R-7887001 thru 32R-7987146
455-360
05-01748

Reviews

Not yet installed or removed Freon it’s shipping package.

Nash A Verified Purchase

Throttle Control MC455-322

March 7, 2023

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What is the length of throttle 12693-04?

53-1/2" total over all length.

Q: Do these include the knob or just the cable?

These are just the push-pull cable. You would reuse your existing knob.

Q: DO YOU HAVE PROP CONTROL FOR PA-32 260 & HOW LONG IN INCHES?

Yes, please use part # 05-01748.
