Anti-abrasion boot for your metal propeller
It is more economical to protect your propeller blades with PROP GUARD than to continually file, dress, paint and balance your blades until they have to be replaced. Water, sand, rock, and airborne abrasives are constantly eroding your propeller. As the name suggests, this product can eliminate this destructive process. Virtually all propeller blade failures start as leading edge nicks.
PROP GUARD is a 0.018" thick clear anti-abrasion boot that is bonded to the leading edge of the propeller PROP GUARD is made from a special high strength heat processed polymer engineered for centrifugal loads. It is NOT just a piece of tape! Easy to install (approximately 20 minutes installation time) No performance loss Fully tested Repairable STC FAA-PMA approved (minor alteration, no form 337 required) *New installation kits come with tape for each prop blade / Repair kits come with tape for a single prop blade* Kit Contents:

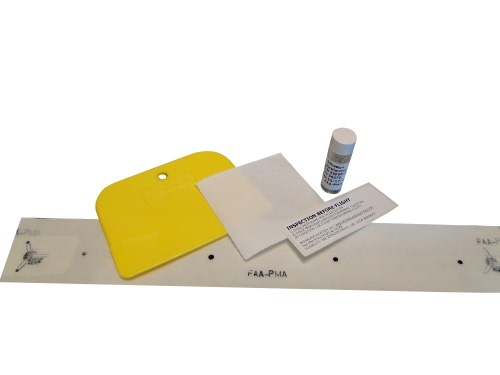

Repair kit:(1)12" strip Tape / New kit:(1) 24" roll Tape Lint-free cotton cloth or equivalent Prop-Guard adhesion accelerator Spatula Placard Prop-Guard Supplemental Information Installation Instructions 3 Blade Kit: Repair kit:(1)24" strip Tape / New kit:(1) 72" roll Tape Lint-free cotton cloth or equivalent Prop-Guard adhesion accelerator Spatula Placard Prop-Guard Supplemental Information Installation Instructions |
Highly Recommended! 100 hours on my 310 with no signs of deterioration. Obvious indicators of strikes, but without penetrating the material. Worth every dime!
Prop Guard For 3 Bladed Prop
Prop Guard For 2 Bladed Prop
Esculent product
Prop Guard For 3 Bladed Prop
Prop Guard For 2 Bladed Prop
I’ve used Prop Guard for many years and swear by it. It significantly reduces the prop leading edge erosion from FOS and rain.
Have installed this product on numerous aircraft, piston twins, single engines and single engine turbo props. Very pleased with the protection it gives to the propeller blades. Take your time with installation, very tricky, watch the YouTube video before installing. I would advise repainting the blades before installation.
good kit. Have to remember to get paint thinner and alcohol to clean the prop before using
Have used prop guard for many years on piper archer, exposed to loose gravel on ramp, etc. Never had adhesion issues, use kerosine then rubbing alcohol for application preparation with accelerator supplied in kit. When a small cut occurs from a strike it is possible to use a small dab of model glue to reseal. Durability has been two years however, now at annual I will replace. Great product to help preserve prop.
After years of using blade tapes similar to this on border patrol helicopters in the Arizona desert, I wanted to install it on our single engine piper with its factory new prop. After 2 years and a couple hundred hours, it is still hanging on. No rock damage to the leading edge. No peeling of the edges. A very good investment.
This is the second aircraft I have used PropGuard on (Cessna Skywagon and Beech Bonanza). I have never had any issues with adhesion, so long as the surface was thoroughly cleaned prior to application. Supplied in the kit, is a tube of Adhesion Promoter Liquid. Mine on both aircraft has stayed in place until I needed to remove it for three years plus (as of now.) The Tip Ends do wear and get beat up over time requiring minor maintenance, but it is usually months or even years before I have needed to trim/remove the worn section and recover tip ends with slight overlap application to the ends. The product reduces blade maintenance, no nicks or wear, plus allows the blades to last longer as material does not need to be removed to resurface the edges. Finally, aesthetically, the paint on the propeller doesnt wear off the edges, so the prop blades always look nice.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the supplier: The repair kits do not include enough material for both blades. They are only intended to repair small sections. If you intend to replace all that is there, then you will want to buy a complete kit.
Per the supplier: No, this product is only available in clear.
These are made for Metal props only.
The length of the tape is 92". This is the correct tape length for the three bladed prop.
Yes, that is correct.
We do not see any restriction regarding seaplane applications.
An adhesion accelerator is offered part # 05-16788
