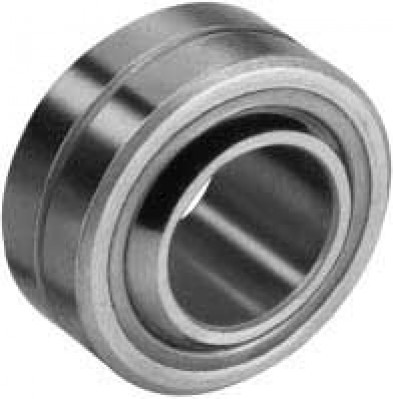

Heim Spherical Bearings Ls Lss Lha Series

From $51.75 to $181.75
Reference Chart

(Hover to zoom | Use mouse wheel for +/-)

Part No. Price Buy
LS-5
$132.75
Quantity
LSS-3
$51.75
Quantity
LHA-2
$181.75
Quantity
LHA-4
$88.75
Quantity
Subtotal $0.00
Add to Wishlist

Overview

LS SERIES

  • Outer Member: Carbon Steel, with protective coating for corrosion resistance on all surfaces exposed after installation.

  • Ball: SAE 52100 Steel, Heat Treated.

  • Inserts: Brass.


LSS SERIES

  • Outer Member: 4130 or 4340 Alloy steel, heat treated, with protective coating for corrosion resistance on all surfaces exposed after installation.

  • Ball: 52100 Alloy steel, heat treated, chrome plated.

  • Inserts: Copper alloy


LHA SERIES

  • Outer Member: 4130 or 4340 Alloy steel, heat treated, with protective coating for corrosion resistance on all surfaces exposed after installation.

  • Ball: 52100 Alloy steel, heat treated, chrome plated.
Attention: Subject to price & availability of Heim brand bearings, equivalent bearings may be furnished.

Specifications


PN B D W H C E O Max
Radial
Load
Weight
LS-4 .2500 .7500 .375 .281 .016 .515 .354 5,245 .04
LS-5 .3125 .8750 .437 .313 .016 .625 .447 6,550 .05
LSS-3 .1900 .5625 .281 .218 .020 .406 .293 2,750 .02
LSS-6 .3750 .8125 .406 .312 .032 .625 .475 7,150 .04
LHA-2 .1650 .4687 .250 .187 .020 .343 .235 4,400 .01
LHA-4 .2500 .6562 .343 .250 .022 .500 .364 10,000 .02
