Universal Spring Loaded Latch

Select Model:
Left-HandRight-Hand
Quantity
Add to Wishlist

Overview

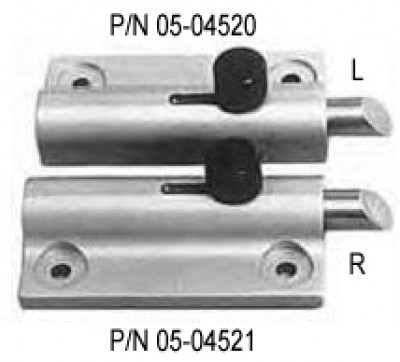

These universal spring loaded latches are designed for aircraft canopies, cockpit doors, and baggage doors. They are available in right hand and left hand models with different striker angle lock pins on the two models. These latches work great on a wide variety of experimental aircraft.

Latch flange has 3/16" holes drilled for mounting.

Reviews

The Latch is a high-quality assembly and works great.

Ernesto B Verified Purchase

Univ. Spring Loaded Latch (R)

September 10, 2023

Will work just fine on the doors of my Hatz

James B Verified Purchase

Univ. Spring Loaded Latch (L)

August 30, 2023

will work just fine on the doors my Hatz

James B Verified Purchase

Univ. Spring Loaded Latch (R)

August 30, 2023

4

Dennis E Verified Purchase

Univ. Spring Loaded Latch (R)

March 23, 2023

4

Dennis E Verified Purchase

Univ. Spring Loaded Latch (L)

March 23, 2023

These latches are beautifully manufactured to a very high quality fit, finish, and function. The main body appears to be machined from billet aluminum and gold anodized (which doesnt show in the photo). Well worth the price!

Michael K
January 22, 2021

The cost for the Universal Spring Loaed latch is too much $$$$

Steve H
May 21, 2019

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: I am looking for two dimensions of these universal spring loaded latches, the extended length and the pin diameter. Do you have them?

Yes, the extended length is 3-3/8". The pin diameter is 3/8".

Q: What is the material and finish of the universal spring loaded latch, part# 05-04520?

Per the supplier: BASE= GOLD ANODIZED ALUMINUM / PIN= STAINLESS STEEL / KNOB= BLACK ANODIZED ALUMINUM

Q: What the overall base dimensions and how far does the pin extend from the retracted position?

Base Dimensions: Width: 1.25" | Length: 2.75" | Extends out to: .605"

Q: Can the pin be rotated 180 degrees so the striker can come from the bottom?

The pin is fixed and cannot be rotated.
