Garmin GMU 11 Connector Kit

$91.75/Each
Quantity
Add to Wishlist
Part# 11-15066
MFR Model# 011-04349-90

Overview

Garmin GMU 11 connector kit.

Specifications

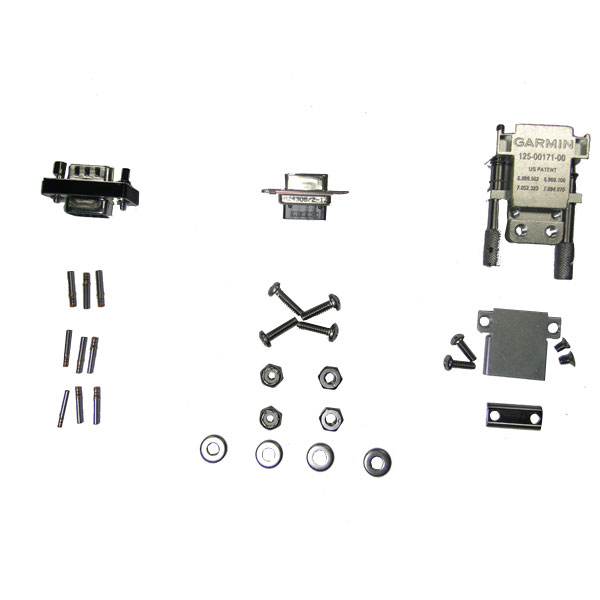

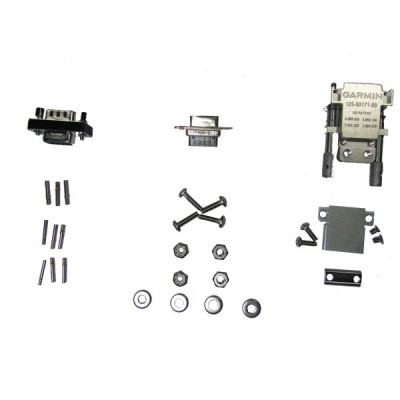

Item Description Qty.
Connector Kit, 9 Pin, w/CAN Term 1
Backshell Kit, 9/15 Pin 1
Connection D-Sub Rcpt 1
Positioning Str Crimp 9
Nylon Locking 6-32 Nut 4
Screw, 6-32, 0.500" 4
Flat 6-32 Washer 4
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Magaero L Verified Purchase

Garmin GMU 11 Connector Kit

April 22, 2023

Magaero L Verified Purchase

Garmin GMU 11 Connector Kit

February 16, 2023

Magaero L Verified Purchase

Garmin GMU 11 Connector Kit

January 13, 2023

Magaero L Verified Purchase

Garmin GMU 11 Connector Kit

September 21, 2022

Magaero L Verified Purchase

Garmin GMU 11 Connector Kit

April 14, 2022

Cannot leave review of this product as I have not installed it yet.

Bill S Verified Purchase

Garmin GMU 11 Connector Kit

September 29, 2021

Excellent service. Delightful people.

John M
March 31, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: What kind of wire do I need to connect the GMU-22 to my G-5?

Per the installation manual you will need 2 conductor 22 gauge wire. Please refer to the installation manual for further detail about the installation.

Q: Exactly what wires connects to what pins on the magnometer goes into exactly what pin on the G5?

You will need to review the installation manual. please send your request to avionics@aircraftspruce.com and provide the order number of the G5.

Q: Are the screws #2 Phillips head?

Yes, they are.

Q: I do not see the connector kit in the catalogue for a Garmin GTX35R. Can you confirm the part # please?

Per the install manual for the gtx35r, the connector kit is 011-02977-00 (pn 11-17372)
