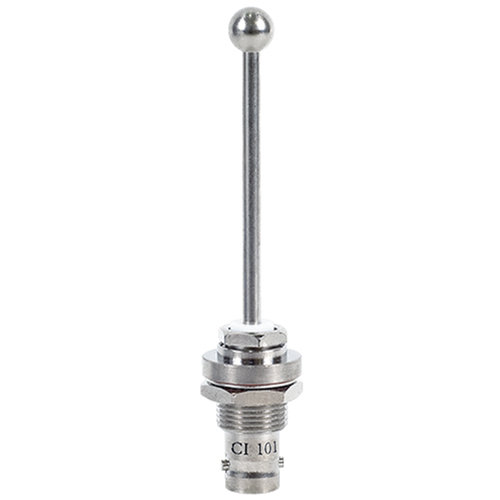

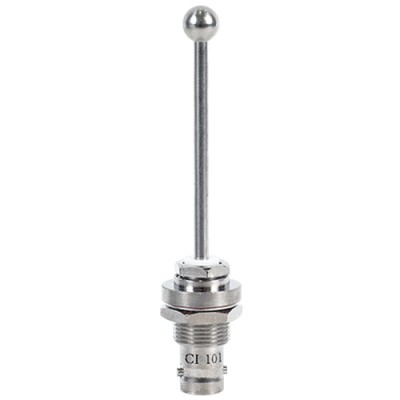

Frequencies Covered Transponder antenna with top loaded stub monopole. Antenna radiator is mechanically captivated and is machined from solid brass for impact resistance. Contact points are made from beryllium copper. Metallic parts are plated with bright nickel for corrosion protection. Mounts through a single 0.600” diameter mounting hole. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. Applications |
MODEL CI 101 TRANSPONDER | |
Electrical | |
Frequency | 1030 to 1090 MHz |
VSWR | 1.5:1 1030 MHz |
Polarization | Vertical |
Radiation Pattern | Equivalent of 1/ 4 wave stub typical |
Impedance RF | 50 Ohms |
Resistance DC | Open Circuit |
Power RF | 1.0 KW Peak |
Mechanical | |
Weight | 0.06 lb. Maximum |
Height | 3.33 in. Maximum |
Finish | Tin-Nickel Alloy |
Environmental | |
Temperature | -54ºC to +55ºC |
Altitude | 30,000 ft. |
Air Speed | 300 Knots TAS |
Federal Specification | |
RTCA Environmental | DO-138 |
FAA TSO | C74c |
RTCA MOPS | DO-144 |
Exactly what I needed. Pricier than expected - but everything has gone up!
Comant CI-101 Transponder Antenna BNC
Easy installation, works as intended. No transponder signal issues since having this antenna.
Comant CI-101 Transponder Antenna BNC
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
Per the installation manual, This antenna is not on the recommended antenna list. Please view antenna CI-105, P/N: 11-17965
Yes, this antenna can work.
Yes, this is capable of functioning with that transponder.
This antenna goes to 1090 but is not advisable for 1090es. Please see part # 11-17965 for recommended antenna.
Yes, this work with this unit, it is 1090 rated.
Yes, a ground plane is required.
