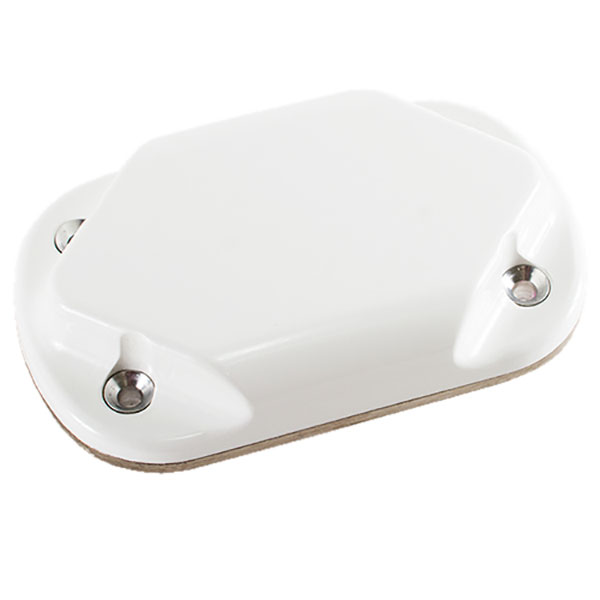

The CI429-200 ComDat WAAS GPS antenna meets the stringent FAA TSO C190 WAAS requirements while providing full Gamma 2 & 3 and LPV capabilities when connected to any DO-301 qualified WAAS GPS system. It uses a popular ARINC 743A footprint and constructed using tough Skydrol resistant radome and a nickel-plated, aluminum base plate. It includes a Nitrile O-ring providing a positive seal to the skin of the aircraft. Note: Comant Antennas no longer come with a gasket or template. Must order PN 09-05579 separately. |
MODEL CI 429-200 COMDAT | |
Preamp Characteristics | GPS |
Frequency | 1575.42 +/- 10.23 MHz |
VSWR | 1.5:1 |
Polarization | RHCP |
Radiation Gain Pattern | Omnidirectional |
Impedance | 50 Ohms |
VHF Characteristics | VHF |
DC Voltage | 4 to 24 VDC |
Impedance | 50 Ohms |
Mechanical/ Environmental | |
Weight | 7.73 lbs Max. |
TSO | C190 |
