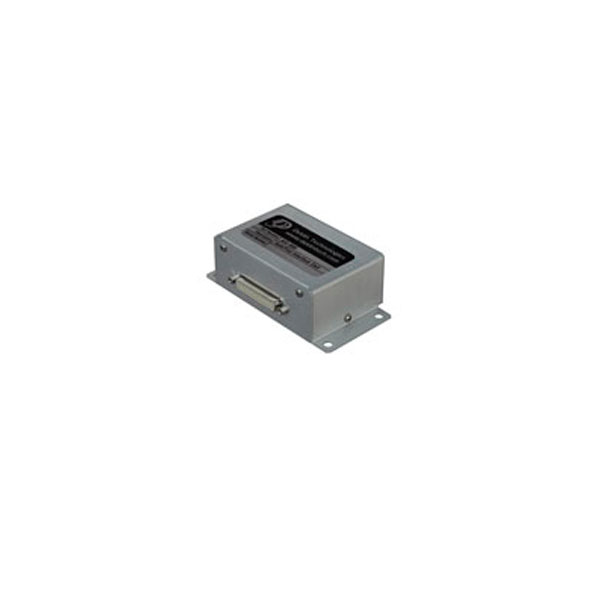

Main Image

Deklin Ea100 Interface Unit Tr2 Series

0 Reviews 0 Answered Questions
Select Model:
TR2 Unit OnlyTR2R With Flight Director
Select Voltage
14V28V
Quantity
Add to Wishlist

Overview

The Deklin Technologies, Inc. has developed the TR2/TR2R series Transformer/Relay adapters as a pre-assembled autopilot interface unit following the interconnect specifications and component requirements recommended by Aspen Avionics for PFD installations when interfaced with Century autopilots. It is intended to provide a convenient installation for installers to use in place of producing the same circuits from discrete components as specific in PFD installation manual.

The TR2/TR2R prefabricated assemblies assist Dealers installing the Aspen Avionics EA100 emulating the gyro interface with Century Autopilots saving valuable time sourcing, designing and building their own assembly. The TR2 are housed in a small aluminum enclosure with the same wiring interface as outlined in the installation manual ready for installers to the plugin. The TR2R can be ordered with an optional relay when needed for a Flight Director interface. These adapters are an addition to Deklin Technologies AIU adapters already used by many Dealers to ease installations of PFD’s to the Century autopilots.

Specifications

  • Case Material: 5052H32 Aluminum Chassis and Cover
  • Dimensions: (not including mating connector) 4.60” (116.8mm) X 2.56” (65.0mm) X 1.50” (38.1mm)
  • Weight without Relay: 0.38 lbs (0.17 kg)
  • Weight with Relay 0.60 lbs (0.27 kg)
  • Connectors: 25 Pin Female D-Sub Connector
  • Mounting: Bulkhead, Four 8/32 Screws
  • Relay Rated Voltage: 28VDC
  • Relay Coil Resistance: 320 OHMs +/- 10%
  • Current Rating: 10 Amps
  • MIL STD: M83536/10-027

Documents

In The Box

TR2- Century IIB/III/IV Unit Only
  • Housing: 5052H32 Aluminum Chassis and Cover
  • Resistors: 2.2k Ohm, 1.2k Ohm, 0 Ohm Jumper
  • Capacitor: 0.12uF 50V 10%
  • Transformers: Sp-20 (x1), SP-69 (x2)
TR2R- Century IIB/III/IV with Flight Director
  • Housing: 5052H32 Aluminum Chassis and Cover
  • Resistors: 0 Ohm Jumper
  • Capacitor: 0.12uF 50V 10%
  • Relay: FCA-210-1027M
  • Transformers: Sp-20 (x1), SP-69 (x2)
