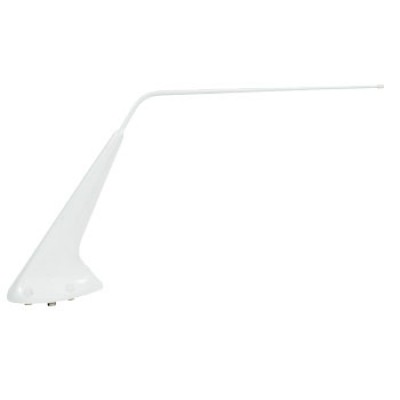

DM C70-4 Antenna

$5041.00/Each
Quantity
Add to Wishlist
Part# 11-02770
MFR Model# DM C70-4

Overview

118-137MHz
TRIMLINE BENT ROD
Frequency Range 118-137 MHz

The DM C70 Series VHF Communication Antennas are designed for top or bottom installation on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high-electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. The lightweight profile is unobtrusive, resists icing and offers low drag.

The DM C70-4 is specifically designed for bottom installations, where ground clearance does not permit the use of other DM C70 Series antennas. The DM C70-4 provides a higher degree of efficiency to assure maximum performance from your transceiver.



Specifications

  • Frequency Range: 118 - 137 MHz
  • VSWR: 2.5:1
  • Polarization: Vertical
  • Radiation Pattern: Omnidirectional
  • Impedance: 50 Ohms
  • Power: 50 W
  • TSO: C37d and C38d
  • Weight: 12 oz (0.34 kg)
  • Height: 8.9 in. Max
  • Finish: White Polyurethane
  • Connectors: BNC Female
  • Speed Rating: 400 MPH
  • D0160c ENV CAT F2-ABCXWFDXSXXXXXXXXXX
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will DM C70-4 work with Garmin GNC-255 8.33 kHz and Trig TY-96 8.33 kHz?

Gnc 255- yes, per the manual: meets tso-c37( ) and c38( ) or tso-c169( ) 50 y, vertically polarized with coaxial cable

Ty96 I would say yes as well it calls out 50 ohm antenna as well and frequecy mataces 118-137mhz.
