This generic installation kit with mounting bracket, 011-02952-01, for the GSA 28 servo is for push/pull applications and is not specific to any airframe. This kit is supplied with a 3/8” diameter x 8” long solid rod. This rod is intended to be used as the attachment link between the GSA 28 and the flight control system. It is the installer’s responsibility to cut this rod to the correct length and tap the ends for the male rod end bearings. |
ITEM | GARMIN P/N | QTY | DESCRIPTION |
---|---|---|---|
1 | 212-00080-03 | 2 | AN970-3 WASHER |
2 | 382-00019-02 | 2 | MALE ROD END BEARING |
3 | 210-00116-03 | 2 | AN315-3R JAM JUT |
4 | 117-00542-07 | 1 | PUSH ROD, 8.0" UNTAPPED |
5 | 212-00035-10 | 9 | AN960-10 WASHER |
6 | 211-00090-01 | 4 | AN3-5A BOLT |
7 | 212-00043-10 | 1 | AN960-10L (THIN) WASHER |
8 | 210-00117-03 | 5 | AN365-1032A LOCK NUT |
9 | 115-01854-00 | 1 | GSA28 MOUNTING BRAKCET, GENERIC |
10 | 211-00090-05 | 1 | AN3-7A BOLT |
11 | 231-00034-04 | 1 | COTTER PIN, MS24665-208 |
Garmin GSA 28 Servo Install Kit Generic With Mount Bracket
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

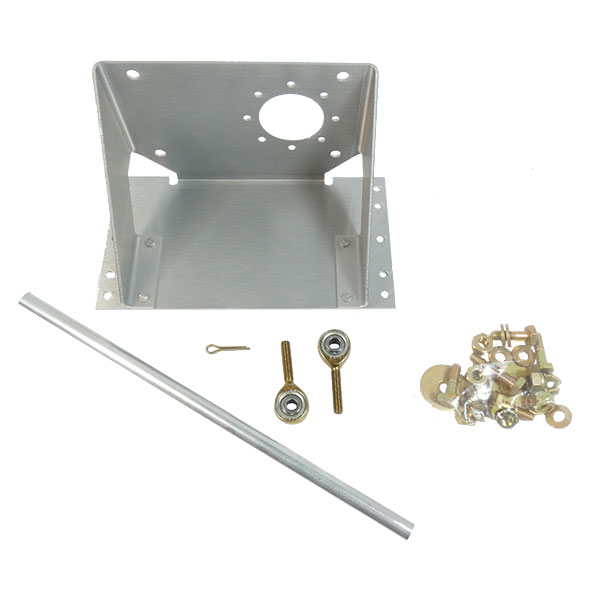

We have added an "In The Box" section on the website that shows the contents of this install kit.
10-32 (3/16)
No. Part # 11-11438 is for a Garmin GSA 28. Part # 10-03563 and 10-03564 are a kit with SV42 servo and bracket kit.
