uAvionix tailBeaconX AV-20-E MFD Bundle Transponder - Experimental - AV-20E Control Head

1 Review 15 Answered Questions
$5040.00/Each
Quantity
Add to Wishlist
Part# 11-17912
MFR Model# UAX-90107-01

Overview

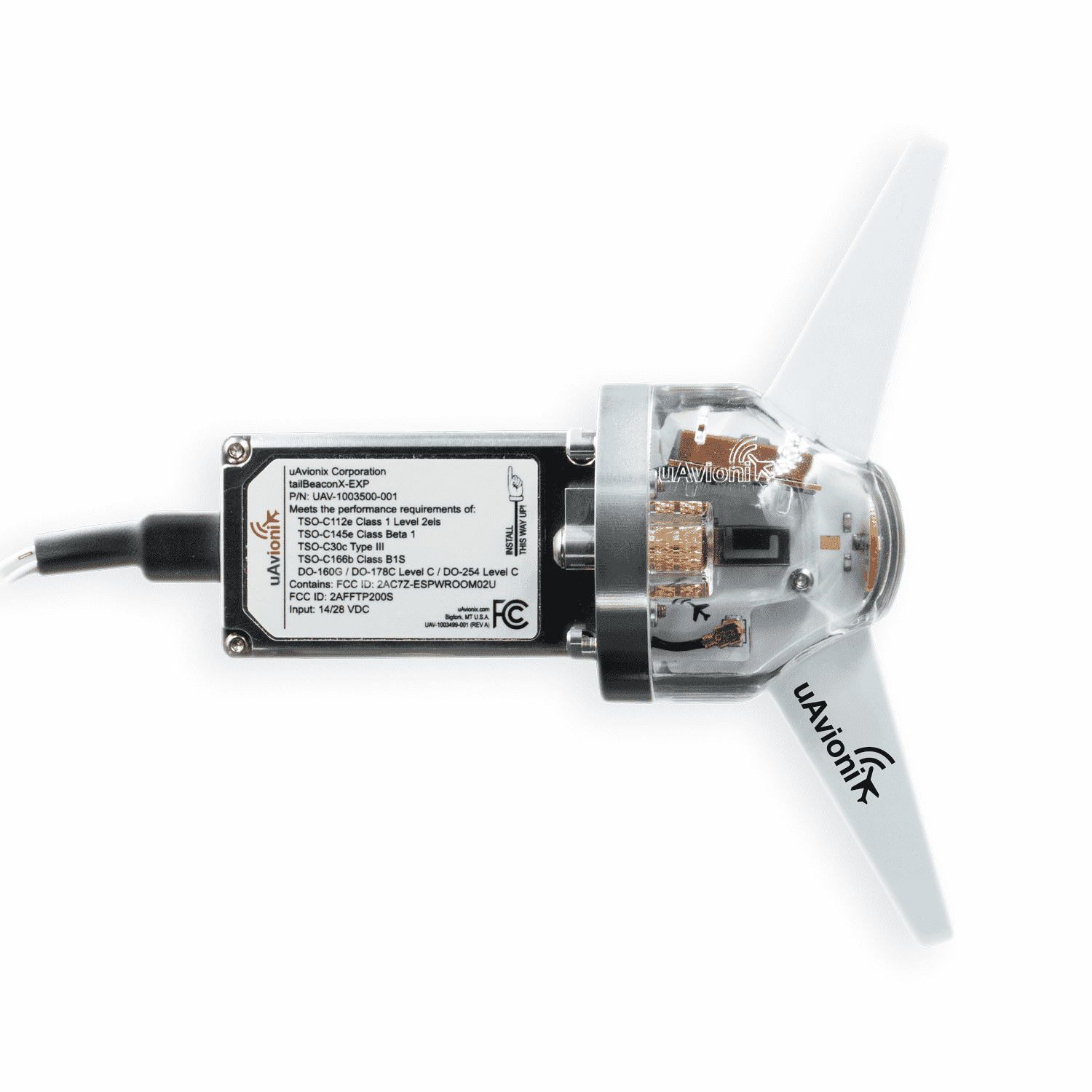

The next era of global ADS-B. Compatible with space and ground-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and WAAS GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations.

Transponder Redefined

    Mode S ADS-B OUT Transponder
  • Mode S + ADS-B OUT Transponder meets airspace requirements worldwide.
    Integrated Certified GPS Receiver
  • tailBeaconX includes a certified SBAS GPS receiver and antenna. No additional GPS is required.
    Aireon Compatible
  • The tailBeaconX with integrated dipole antenna is specifically designed to maximize performance when tracked by the Aireon space-based ADS-B satellite constellation.
    LED Lighting
  • The integrated 20,000 hour rated LED position light ensures the tailBeaconX draws less power than your old incandescent bulb.

Think Outside the Airframe

tailBeaconX is the world’s first transponder designed as a rear position light replacement. The 1090MHz Mode S ADS-B OUT transponder satisfies the requirements for all existing and inevitable ADS-B regulations worldwide, especially those leveraging space-based ADS-B. Fly knowing no matter your destination, tailBeaconX will keep your aircraft connected.

World-Wide Coverage

tailBeaconX embraces the future, providing precision ADS-B data to the Aireon satellite network without the need for diversity antennas. When it comes to terra firma, tailBeaconX also exceeds the performance of traditional panel installed transponders that use belly mount antennas.

Less Ground Time - Easiest Install

tailBeaconX mounts in place of your existing rear position light. The GPS, space-based, and ground-based antennas are integrated in to the lens housing. No new holes or pentetration of pressure vessels are required making tailBeaconX the lowest-hassle easiest install period.

More Than A Mandate

The AV-20-E and AV-30-E have been upgraded to include transponder control functionality! The tailBeaconX combined with the AV-30-E or AV-20-E multiplies your cockpit functionality while future-proofing your ADS-B system to meet current and inevitable mandates worldwide.

Specifications

    Physical Specifications
  • Width: 42.53mm
  • Height: 110.38mm
  • Depth: 112.75mm
  • Weight: 3.5 oz (100 grams)
  • Operating Temperature Range: -45°C to +70°C
  • Maximum Pressure Altitude: 60,000ft
  • Input Voltage Range: 9 to 33 VDC
  • 14V Current: 0.5A Max
  • 28V Current: 0.25A Max
    Mode S Transponder Specifications
  • Transmit Frequency: 1090 MHz
  • Transmit Power: 54dBm (250W)
  • Receive Frequency: 1030 MHz
  • ATCRBS Sensitivity: -74 dBm
  • Mode S Sensitivity: -74 dBm
    Position Light Specifications
  • Color: Aviation White
  • Intensity: 20 candelas
    Control Interface Specifications
  • Physical: RS232
  • Baudrate: 2400 bps 81N
  • Protocols: UCP, SL-70, STX165R

Control Head

tailBeaconX-EXP can be controlled by either an EFIS, the uAvionix AV-20-E or AV-30-E. The AV-30-E is a 3-inch feature-rich EFIS display, and the AV-20-E is a 2-inch multi-function display. Bundles are available with each of these units. Additionally, the following EFIS displays have the capability to send barometric pressure altitude data and control the mode and squawk functions of the tailBeaconX through any available RS-232 serial output:

Compatible EFIS Units
GRT MINI-B
MINI-AP
MINI-X
Sport EX
Horizon
MGL iEFIS

Documents

Reviews

Submit a Review

Arrived promptly and in good condition. In process of planning install.

Fred
March 25, 2021

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is there going to be a certified version for production aircraft?

Yes, Uavionix is planning a certified version of the tailBeaconX.

Q: Does it function as a standalone transponder? Meaning could i remove my old mode C transponder?

Yes, this is a standalone transponder.

Q: I have an Mgl extreme efis- can it be used in place of the control head?

Per the manufacturer the tailbeaconX can be controlled by a compatible EFIS. MGL is on that list.

Q: Is the Uavionix TailbeaconX the unit working with Canada ADS-B specification?

Yes, this model is the version that meets the specifications for the Canadian ADS-B mandate.

Q: I dont see the AV-20E listed on Uavionix website. Is there somewhere where I can get additional installation info for this control head? IT appears it needs pitot/static connections and need more detail on its operation.

See our Part# 11-17557. This is the exact same unit as the AV-20-E, the only difference being the approval.

Q: Can it be mounted with the antennas mounted in the horizontal position instead of vertical? My tail beacon is mounted at the top of the rudder. Fairchild PT19.

Per the manufacturer it must be installed per the instructions which require a vertical installation.

Q: What instillation hardware, wiring...comes with the AV-20-E/ tailbeaconX bundle?

This unit will include a mounting kit that will have the necessary hardware to perform the installation.

Q: Is there an Approved Model list?

This version is the experimental aircraft version. There is no AML.

Q: What else do I need beside the AV 30 and tailbeaconX like encoder or other antennae?

Per the installation manual the tailBeacon with the AV-30 do not require additional equipment to function.

Q: Can we turn off the inside light if the tailBeaconX is installed in fiberglass wing tip?

The light would be wired as a traditional position light, and the ADS-B portion would be wired separately. You could run the light though the position breaker or on its own switch.
