Home / Avionics / Antennas / Transponder /Trig TA50 Compact GPS Antenna
Main Image

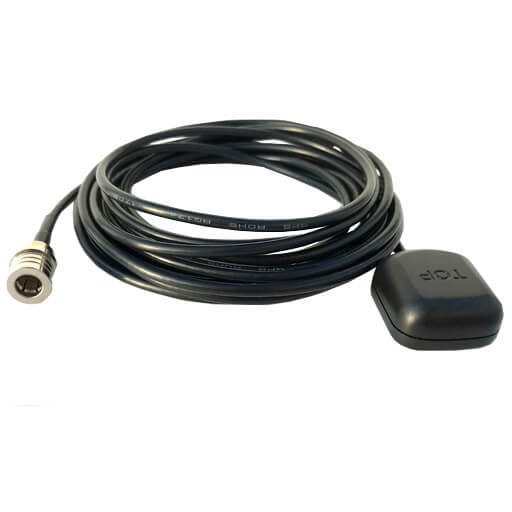

Trig TA50 Compact GPS Antenna

2 Reviews 3 Answered Questions
Select Cable Length
Unit with 1M CableUnit with 3M Cable
Quantity
Add to Wishlist

Overview

This space saving antenna is perfect for gliders and light sport or experimental aircraft where mounting options are limited and space is tight. The TA50 is a highly compact uncertified GPS antenna, typically attached on the cockpit glareshield. The antenna will require a 180 degree view of the sky for optimum GPS reception. It is less suitable in metal high wing aircraft where physical masking of a GPS signal will potentially affect performance. The antenna is weatherproof and can be mounted externally. It has been developed to provide trouble free operation with the TN72 GPS Position Source.

The TA50 comes complete with a secure and reliable QMA connector – this plugs straight into a TN72 GPS unit. Using a TA50 antenna and a TN72 together is a cost effective way to turn your Trig Mode S transponder into an ADS-B Out device. Use the TA50 as part of your ADS-B solution to get all the benefits of greater visibility and safety.
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

This product is perfect for Pitts aircraft where you have limited space.

B&c Q Verified Purchase

Trig TA50 Antenna (1M Cable)
December 18, 2021

Great little antenna so far. Note: The Trig TN-72 antenna receptacle has threads and the Trig TA-50 cable fitting does not. Push it onto the receptacle firmly until it clicks into place.

John L
January 13, 2021

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Will the uncertified TA-50 antenna meet 2020 ADS B requirements in an experimental aircraft or is the TA-70 required? I already have the Trig ADS B Bundle but I have no place to mount the GIANT TA -70 on my RV-4.

The TA50 comes complete with a secure and reliable QMA connector this plugs straight into a TN72 GPS unit. Using a TA50 antenna and a TN72 together is a cost effective way to turn your Trig Mode S transponder into an ADS-B Out device. Use the TA50 as part of your ADS-B solution to get all the benefits of greater visibility and safety.

Q: Is the TA-50 a WAAS enabled antenna?

It is a WAAS GPS antenna meant for the TN72 to provide ADS-B to the TT22.

Q: If I order the Trig ADSB Bundle, can substitute the TA50 ANTENNA for the too big TA 70 antenna that won’t fit anywhere on my Sonerai?

The ADS-B bundle is shipped as a complete package from Trig so unfortuantely no part can be substituted. To have the equivalent, simply order:
Trig TT22: Part number 11-08322
Trig TN72: Part number 11-14845
Trig TA50: Part number 11-16865
