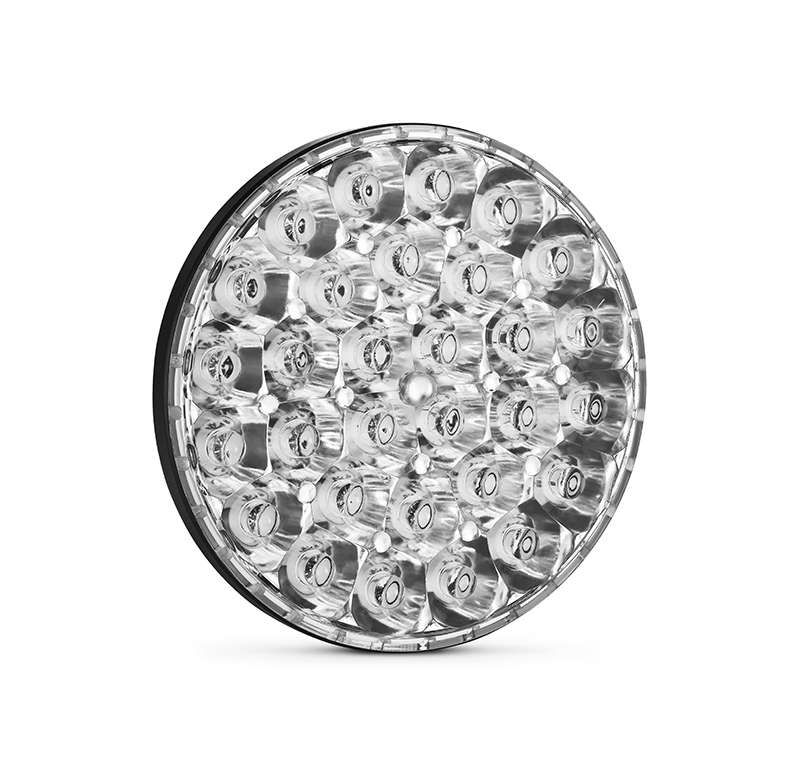

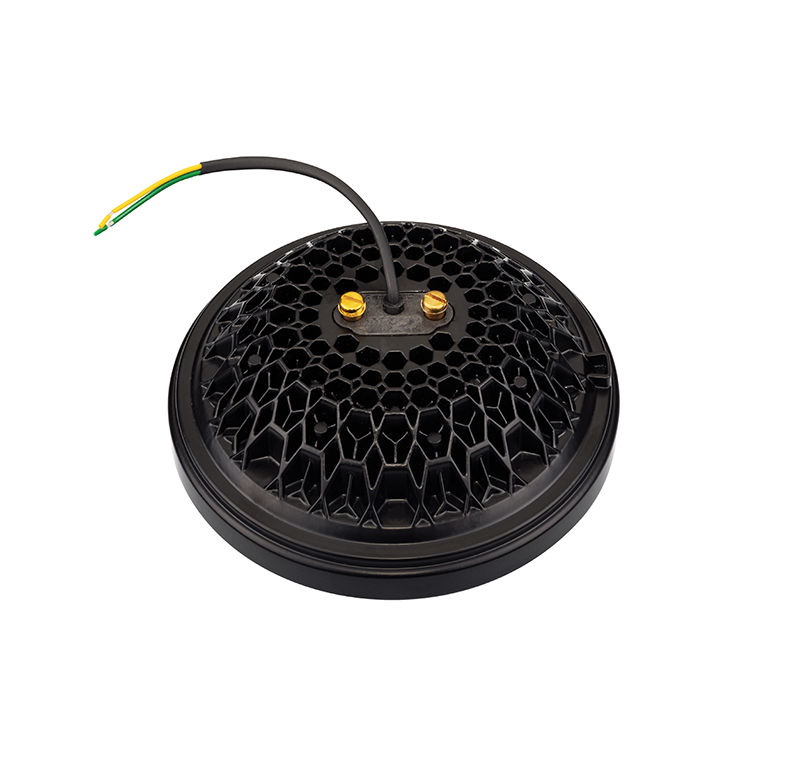

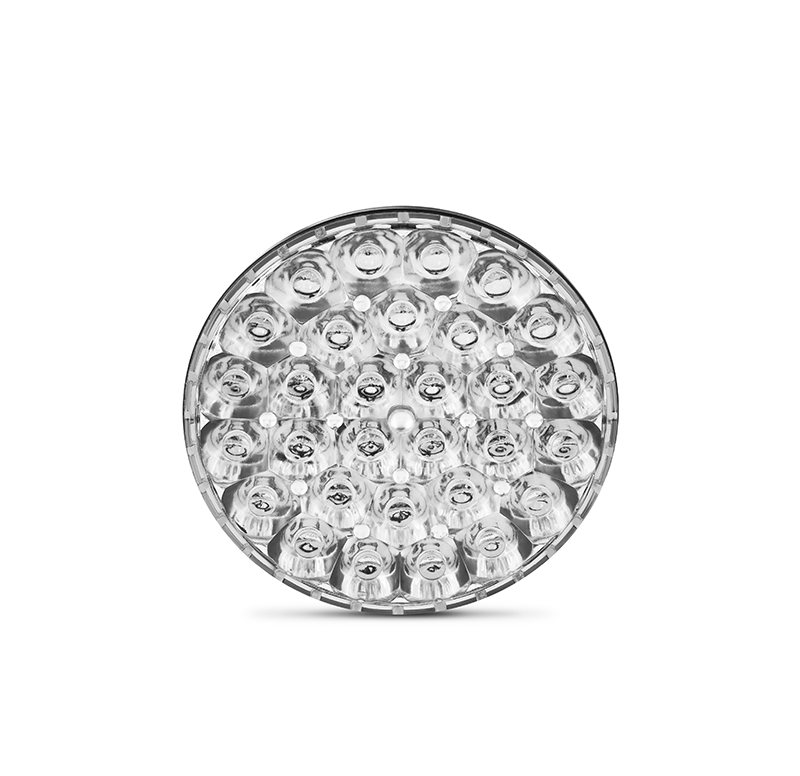

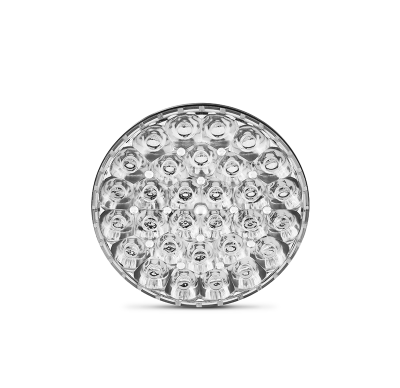

AeroLEDs SunSpot 46 Equinox Dual-Function LED Landing and Taxi Light
Select Voltage:
12V24VOverview
|
Equinox is the industries first dual-function landing and taxi light, providing a tailored lighting experience when operating both at night, during the day, and in conditions of reduced visibility. The perfect solution for single light applications or a multi-light installation where additional light is desired. SunSpot Equinox consumes less power, output more lumens, and are not affected by vibrations compared to incandescent bulbs.
In landing mode, it outputs a bright white beam for high-speed take-offs and landing to improve visibility both on the ground and in the air. While in taxi mode it produces a wider beam spread for unmatched illumination of the runway/taxiway without impairing the vision of other pilots. SunSpot 46 Equinox replacement LED's utilize the existing PAR46 mount and electrical connections with only a Double Pole Double Throw (DPDT) Switch needed for dual modes. |
Specifications
| Part Number | 01-2230-LT-12 (11-19692) | 01-2230-LT-24 (11-19693) |
|---|---|---|
| Color | White | White |
| Voltage | 12 | 24 |
| Power | 145w Landing / 135w Taxi | 175w |
| Wigwag | Yes | Yes |
| Synchronization | Yes | Yes |
| Lumens | 15,950 | 19,250 |
| Candela | 230,000 Landing / 50,000 Taxi | |
| Beam Profile | 20° x 20° Landing / 20° x 50° Taxi | 20° x 20° Landing / 20° x 50° Taxi |
| Length | 5.6” | 5.6” |
| Width | 5.6” | 5.6” |
| Depth | 1.9” | 1.9” |
| Weight | 22 oz | 22 oz |
