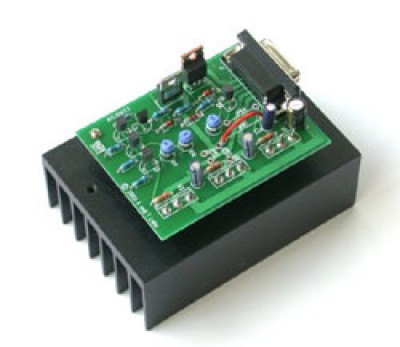

Overview

Features

• 3 outputs with a tracking capability - One output is the “Master”, and the other two can be set to track the master from 0 to any set voltag behind the master. This allows items on the dimmer bus to be grouped according to their relative brightness for better overall tracking. For example, the Vision Micro- systems products are typically way out of line in brightness compared to others at the same voltage
• Quiet analog design
• Multi-channel tracking capability
• Daylight full-on over-ride capability for GPS annunciators, etc.
• Current limiting/short circuit protection
• Thermal protection
• Low drop-out voltage (ability to adjust the dimmer bus up as close to the battery voltage as possible)
• Photocell light sensor automatic control capability
• Low cost
• Voltage range: 0 to Input supply - .6V
• Output current -Depends on ventilation - Each channel is capable of 5 amps, practical dissipation limitation is ~ 5 amps total for all channels. (For 28 volt systems, current limit is 1 A per channel) Unit connections are made through a DB15 connector, and are easy to integrate into the rest of the aircraft wiring.
