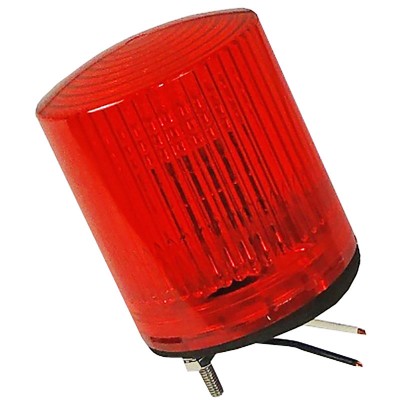

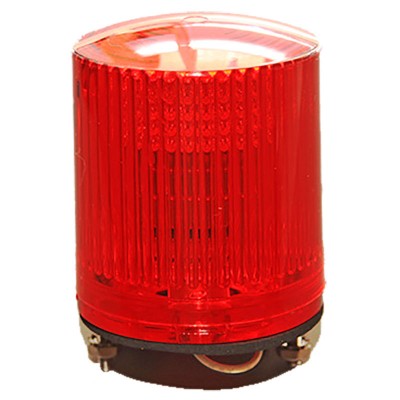

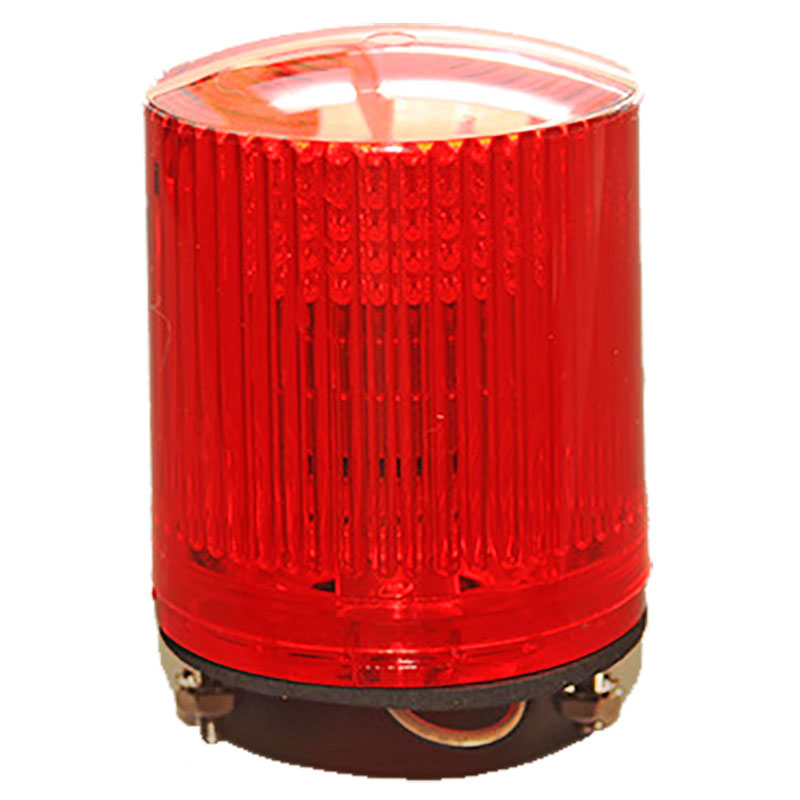

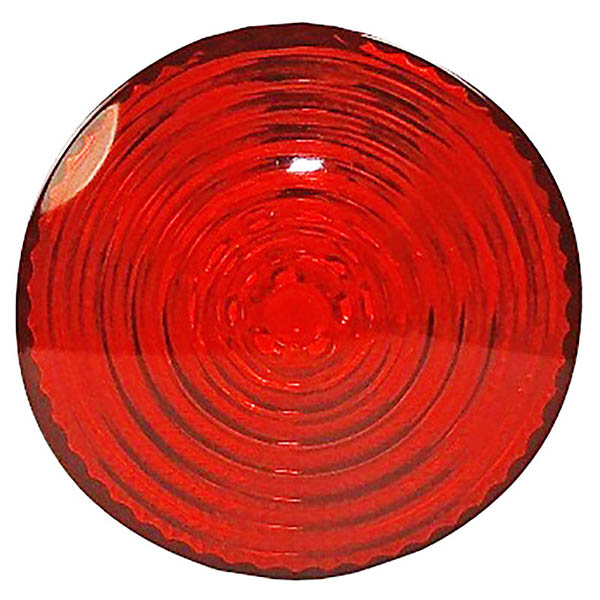

LED based self-contained, High Impact, red, Polycarbonate Optical Lens. Lighter, Brighter, Cooler Longer Life (up-to 50,000 hrs.) and draws less than 1 amp. (.13 amps) @ 12vdc. Weighing in at 3.5oz. it stands 3" high and 2.5" in diameter. |
LED Anti Collision Beacon 8002 Red 12V
The lite was installed very quickly by my A/P and looks great!.
LED Anti Collision Beacon 8002 Red 12V
Works perfectly as advertised
LED Anti Collision Beacon 8002 Red 12V
Works great, easy to install. This light draws far less power than the original light. Had to make a mounting plate to fit the original beacon hole, overall very happy with this light
Looks good. Tested good. How long will last? Have no idea! LOL
LED Anti Collision Beacon 8002 Red 12V
These are a great low cost beacon.
LED Anti Collision Beacon 8002 Red 12V
Worked as advertised and was relatively easy to install.
Works like advertised . No amp draw. Simple install.
If you are looking for a good cheap beacon to replace yours this will do. But if you want one that will make you look away this ain’t the one. I bought this to replace the one on my C172 & it does the job. I had to purchase a adapter & drill holes but it works great. I’m gonna get a clear one to put underneath. These are LED so they sure use less current.
I reviewed this item previously and this is an update. The beacon I received would not flash. As others have discovered, if the mounting studs are grounded the beacon will come on steady and not flash. Isolate the studs with a grommet and it works fine. I had a long talk with the folks at the factory and they asked me to send it back. I received a replacement that worked perfect. I was told that they were implementing a fix for the grounding issue so this shouldnt happen in the future. The beacon is LED, fair on the brightness with the red lens and very cheap compared to other LED beacons. It is all plastic and would probably not hold up to impact all that well but we have it on the belly of a c-170 that hardly ever lands on pavement. So far so good. You could replace this whole unit for the price of a bulb or lens on the other beacons. Not TSO, but check the regs on aircraft certified without anti-collision and do the proper paperwork.
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The dimensions are 3" high and 2-1/2" diameter. It is a 12 volt light.
Per the supplier: No, there is not.
Yes, the bulb is included.
Per the supplier: The unit flashes at a Rate of 50 to 60 per min.. no motor and no turning. Self contained in the lamp its' self.
The PSA Enterprises 8000 Series (LED) Red Anti-collision Beacon is not PMA/TSO'd and is designed to be used with experimental aircraft.
The PSA 8000 series red anti-collision beacon (11-07241) is rated at 50 effective candle power.

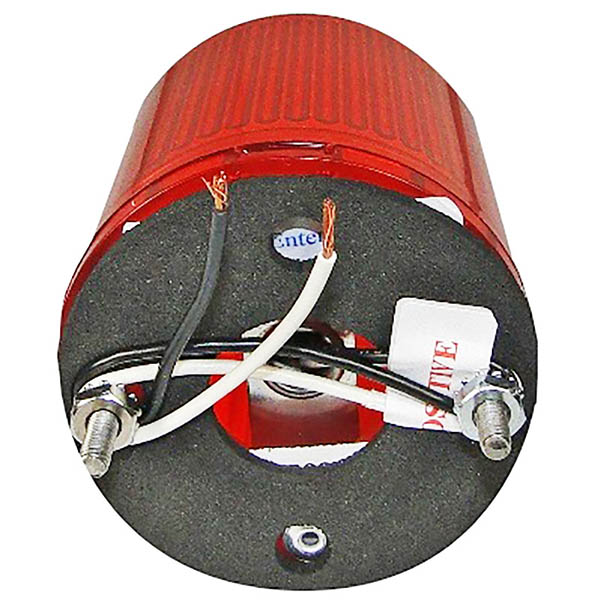

This unit has attached studs for mounting.
No, you would have to remove the Whelen beacon and install this part.
This would mount directly to the skin of the aircraft. You would need to drill a hole for the wiring and two holes for the studs.
