Whelen LED Interior Cabin Light 70813 Series

From $266.95 to $308.00
Mfg. Model # Voltage Current Draw Part Number Price Buy
70813-0428.08 amps
11-01223
$308.00
Quantity
70813-07140.16 amps
11-01224
$266.95
Quantity
70813-08280.16 amps
11-01225
$296.95
Quantity
70813-12280.24 amps
11-01227
$300.95
Quantity
Subtotal $0.00
Add to Wishlist

Overview

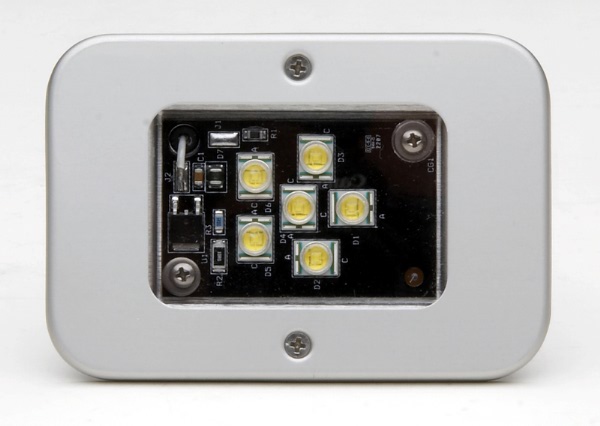

70813 series LED interior cabin light is a high quality, long lasting, dimmer controllable, modern alternative to the A360 series incandescent interior cabin lights. It offers significant technological upgrades over previous products. Utilizing LED (Light Emitting Diode) technology, the following advantages are offered: Long Life (approx. 100,000 hours); Reduced Power Consumption (compared to alternative light sources); Shock & Vibration Resistant (no fragile filament to burn out); Light (produces bright white light); Small Profile (allows for shallow mounting depth) and No EMI or RFI Interference.

Specifications

  • Drawing Number: 70813
  • Weight: 0.1 lbs. (45gm)
  • Mounting Depth: 0.25” (6mm)
  • Length: 4.0” (101mm)
  • Width: 2.75” (70mm)
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

I havent installed this item but for the price I hope that it lasts forever.

Tal H
March 12, 2017

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Are these 70813 series Whelen LED interior lights FAA PMA approved?

No. These are not FAA PMA approved.

Q: Are these 12volt or 28 volt?

In the ordering grid, there is a column for voltage which designates each part # as either 12 or 28 volt.

Q: Can the 24v system be used in a 28v application? Are they interchangeable?

Yes, 24v and 28v are interchangeable.

Q: What is the difference between the -08 and -12 model?

The current draw and Candela power is different. -08 = .16 current draw, 28CD Candela. -12 = .24 current draw, 42CD Candela

Q: Are these units dimmable?

The 70813 series is dimmer controllable. You would need to buy a PWM switch.
