Zeftronics Voltage Regulator R15V00 Rev. A

$704.00/Each
Part# 07-00628
MFR Model# R15V00-A

Overview

Note: Manufacturer C of C not available on Zeftronics stocked units. Zeftronics C of C available via special order only. If certs are required, please add part # 07-00000 with your order (See Accessories).

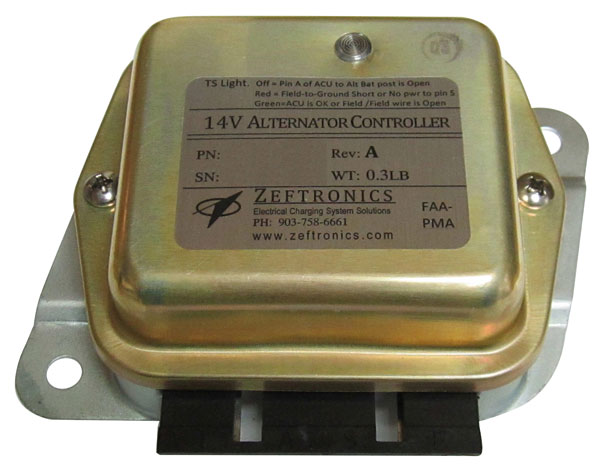

The R15V00 Rev A is a 14Vdc electronic Alternator Controller (Voltage Regulator and Over Voltage Sensor) designed for use with 12Vdc aircraft alternators. It combines the OV Sensor and regulator in one unit that is fully pin and function compatible with the Cessna equivalent units. This unit provides Voltage Regulation, Overvoltage Protection, Low/High Voltage indicator pin, self-protecting Field-to-ground short protection, as well as an on-unit Trouble-Shooting Light (TSL). The OV sensor removes power from the regulator thus dropping the alternator off-line when the sysytem voltage exceeds 16 volts. The indicator pins allows a light connected to it and bus to come on whenever the alternator switch is open, the OV sensor is defective (open), or the wire to pin S is open. The unit will turn itself off and turn on a RED TSL light if it senses that the alternator field or field wire is shorted to ground. When the ground fault is removed or repaired, the unit with come back on line (with a GREEN TSL light) once the alternator switch is cycled. If the wire from the alternator battery terminal to pin A is broken, the on-unit light will be OFF. It has two mounting holes and fully pin and function compatible with the Cessna equivalent unit. This is the best unit for Cessna, Beech, and Grummans.

Voltage Regulation: 14.2V + 0.2V. Max Field Current: 5A. OV: 16.0 + 0.4V

The R15V00 Rev A replaces:
    • CESSNA P/N: C611001-0201, -0101, -0102 & OVS
    • BEECH P/N 33-380010 & OVS
    • ELECTRODELTA P/N VR 600 & OS60
    • PFT/DGR 6 & OVS
    • FORD P/N: D4FF-10316-BA, CA. & OVS
Aircraft Eligibility:
CESSNA:150,A,B,C,D,E,F,G,H,J,K,L,M; A150,K,L,M; FA150,K,L,M, 172,B,D,E,F,G,H,I,K,L,M,N,P,Q; F172,D,E,F,G,H,I,K,L,M,N;FR172E, R172E, P172, R172K. 177, A,B,RG,F172RG. 180,F,G,H,J,K. 185,C,D,E; A185E,F. 182,E,G,H,J,K,L,M,N,P,Q; F182P,Q; T182 188,A188,T188. 205A. 206;U206,A,B,C,D,E,F,G; P206,A,B,C,D,E; T206; TP206A,B,C,D,E; TU206,A,B,C,D,E,F,G. 207,A. T207A, 210,B,C,D,E,F,G,H,J,K,L; 210,F,G,H,J,K. Beech: 35A33, 35B33,35C33,E33,E33B,F33,H35,K35,M35,N35,P35. Gulfstream (Grumman): AA-5,A,B.

Features

  • VR - Voltage Regulation
  • OVP - Over Voltage Protection
  • OVS - Over Voltage Sensing
  • OVI - Over Voltage Indicator Driver Output
  • LVS - Low Voltage Sensing
  • LVI - Low Voltage Indicator Driver Output
  • RS - Remote Voltage Sensing
  • GFP - Ground Fault(Field-to-Ground Short) Protection
  • GFI - Ground Fault (Field-to-Ground Short) Indicator
  • Type "B" Alternator System
  • CPI - Cockpit Instrument Panel Fault Indicator Light Output
  • TSL - Trouble-shooting Light on unit
  • 14 Volt System
  • SE - Single Engine

Benefits

  • Increased Regulator life. Reduced panel lights flicker.
  • Warns the Pilot of Low & OV Conditions.
  • Protects system loads against overexcited alternator.
  • Protects against grounded alternator field.
  • Identifies grounded field. Reduce trouble-shooting time.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed

Reviews

Great. Instructions are a bit confusing but called company and they cleared it up. Great support from Spruce and Zef

Ed C Verified Purchase

Zeftronics Volt Reg R15V00-A

September 16, 2024

Disappointed that my ~12 year old Zeftronics failed in an erratic reduced voltage output mode that created in flight operational issues. Zeftronics integrated green/red trouble light did not detect the issue. Wasted much time testing alternator and battery before replacing 12 year old Zeftronics regulator with a 20$ Ford regulator which confirmed that the good/green Zeftronics regulator was the problem. Spruce did great delivering a replacement quickly, but hoping my new Zeftronics proves to be more reliable than the 12 year old Zeftronics and the original Cessna/Ford mechanical regulators.

Stephen S Verified Purchase

Zeftronics Volt Reg R15V00-A

December 15, 2023

I always had great performance from Zeftronics but this regulator was replacing one that lasted only 5 years.

Jay R Verified Purchase

Zeftronics Volt Reg R15V00-A

September 7, 2023

Excellent product!

Jason M Verified Purchase

Zeftronics Volt Reg R15V00-A

June 8, 2023

Although there were required steps for warranty purposes installation was almost a no brained. It worked as advertised and ordering was also a snap. Thanks

Carl T Verified Purchase

Zeftronics Volt Reg R15V00-A

December 18, 2022

I like the product features, however this is the second one purchased within two years. The original stock regulator lasted 50 years.

Steven H Verified Purchase

Zeftronics Volt Reg R15V00-A

August 8, 2022

I had to replace my overvoltage relay so I bought this instead. Now I have a new regulator with overvoltage protection for a little more than the cost of either one!

Jim P Verified Purchase

Zeftronics Volt Reg R15V00-A

June 16, 2022

The installation and STC instructions for this voltage regulator were excellent. Gave good guidance for testing the entire charging system and listing for the aircraft covered by the STC.

Lynn W Verified Purchase

Zeftronics Volt Reg R15V00-A

June 8, 2021

Works good and should last a long time

Alan C Verified Purchase

Zeftronics Volt Reg R15V00-A

May 26, 2021

The Zeftronics R15V00 ACU (alternator Control Unit) is a direct replacement for OEM ACU units but requires the removal of the Cessna Over Voltage Sense unit PN C593001-0101 located between the Alternator Switch and the Alternator Field Circuit breaker. The Over Voltage Sense Unit will need to be removed from the circuit and just the Noise Suppressor left in the circuit. The wiring change is fairly simple if you have basic wiring skills. If not let your shop do it.

Aviation S
January 28, 2021

Q&A

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Is the ZEFTRONICS VOLTAGE REGULATOR R15V00 REV. A product FAA PMA? Or is this STCd?

This product is FAA PMA approved.

Q: Can this Voltage Regulator R15V00 take the place of an over voltage sensor?

Part # 07-00628 takes the place of both V11100 OV Sensor, as well as, the voltage regulator. It is a multi-function unit that replaces two units. You cannot replace just the OV Sensor with a R15V00 Rev A (part # 07-00628). Using the R15V00 Rev A (part # 07-00628) simplifies and enhances the aircraft's electrical charging system.

Q: Is Part # 07-00628 NEW or Re-certified ?

These are new outright voltage regulators.

Q: Is this unit compatible with a generator?

No, this is used for an alternator system.

Q: Can the R15V00 Rev.A be used with a Prestolite ALY-8420LS alternator serving as the regulator and over-voltage relay in an experimental?

Yes it will work as the Voltage regulator and overvoltage protection.

Q: What kind of electrical connector is required for this installation?

ACFC00 (1 Rectangular Black Connector) ACFC01-P (4 Female Blades/Quick Connects)

ACFC01 is the kit but it is special order. Please contact sales for price and lead time.
