Tanis Power Door Kit

$345.00/Each
Quantity
Add to Wishlist
Part# 05-14747
MFR Model# TAD02840

Overview

Power Door Kit (2.4 inch wide)

The Tanis Power Plug Door is for use with a Tanis flush mount power plug, TP02070-M-115 (#05-14760) or other Tanis approved plugs. Assembly is designed for installation in sheet metal and composite panels.

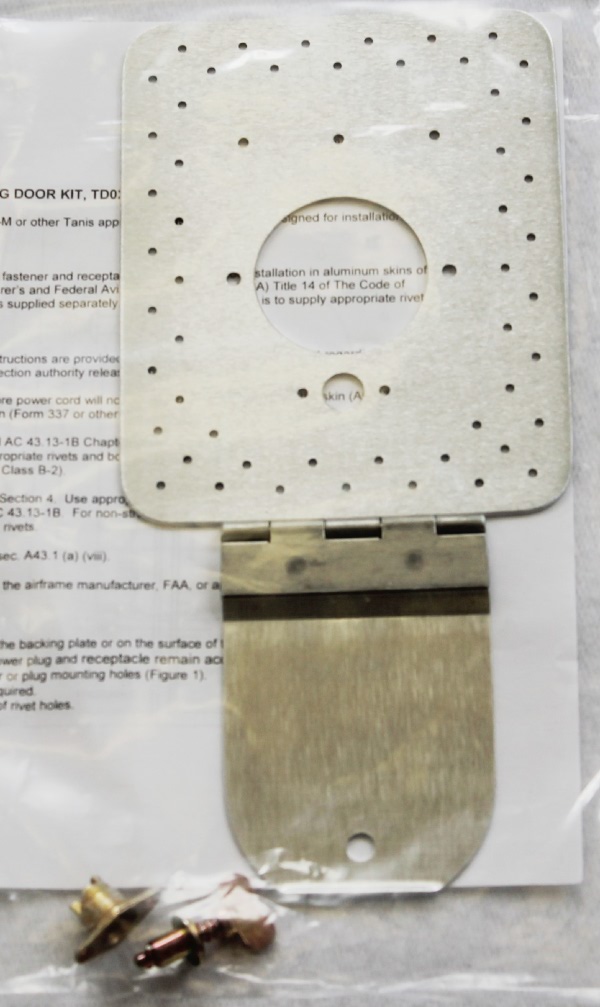

The aluminum door kit consists of .050” backing plate, aluminum door, and fixed wing fastener with receptacle.
It is designed for installation in aluminum skins of 0.050" or less, and non-structural composite panels when following airframe manufacturer’s, Federal Aviation Administration (FAA) Title 14 of The Code of Federal Regulations (14 CFR), and Advisory Circulars (AC). It requires a flush mount power plug that is supplied separately. The installing authority is to supply appropriate rivets, sealers, and finish.
When installed in a structural location a 337 form is required.

Alternate studs may be used as required for installation for length, wing, and manufacture options.

In The Box

  • 1 EA TD02826, Door
  • 1 EA TD02838, Backing plate
  • 1 EA. 2600-4W, Fixed wing stud
  • 1 EA. 212-12D, Fixed receptacle (Alt: 1127702)
  • *(MOUNTING HARDWARE NOT INCLUDED)
