Tanis Fixed Wing Preheat Kit With Battery And Avionics / Cabin Heat

From $6034.00 to $6037.00
Description Part Number Price Buy
Tanis Fixed Wing Preheat Kit With Battery & Avionics/Cabin Heat - Gippsaero Airvan GA8 Series - 115 Volt TA3120-1
05-14773
$6037.00
Quantity
Tanis Fixed Wing Preheat Kit With Battery & Avionics/Cabin Heat - Gippsaero Airvan GA8 Series - 230 Volt TA3120-2
05-14774
$6034.00
Quantity
Subtotal $0.00
Add to Wishlist

Overview

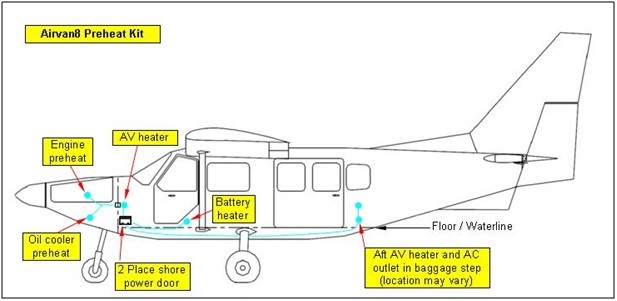

Fixed Wing Preheat Kit for a Mahindra (GippsAero) Airvan GA8 Series

This preheat kit contains threaded heat elements located in each cylinder assembly, two pad heat elements for on the engine crankcase/oil sump/oil tank, one threaded element in the rear of the engine, Battery heat, and two Avionics/Cabin Heaters. This multipoint configuration fully preheats the engine, battery, cabin, and avionics. Power is routed to the elements through a dedicated wiring assembly with LED system power indication and circuit overload protection standard. The system is self-regulating through design. Heated components reach an average state of thermal equilibrium in approximately six hours.

This preheat kit is compatible with all engine monitor systems as the threaded heat elements can replace either a rocker cover screw or intake bolt fasteners.
