- Photo may represent series and not specific product
- SHARE

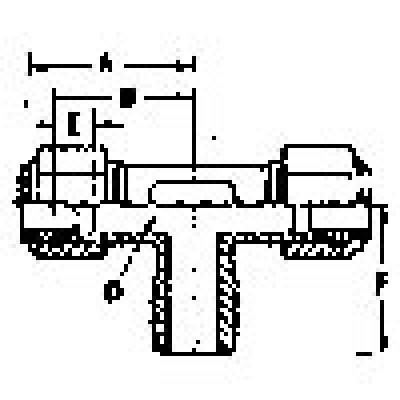

| Tube OD |
Pipe Thd. |
A | B | D | E | F | Part Number | Price | Buy |
|---|---|---|---|---|---|---|---|---|---|
| 1/4 | 1/8 | 15/16 | 47/64 | 7/32 | 15/32 | 3/4 | 272-N04X02 | $5.99 | |
| 1/4 | 1/4 | 15/16 | 47/64 | 7/32 | 15/32 | 13/16 | 272-N04X04 | $8.65 | |
| 3/8 | 1/4 | 1-11/64 | 31/32 | 5/16 | 19/32 | 1-1/16 | 272-N06X04 | $10.50 | |
| 3/8 | 3/8 | 1-11/64 | 31/32 | 23/64 | 19/32 | 1-7/16 | 272-N06X06 | $11.50 |
Overview
|
Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.
For Nylo-Seal tubing, see "Accessories" tab Less 10% on 50 pieces per size, Less 20% on 100 pieces per size |
Reference Chart
259-N Insert (Nylon) |
Sleeve Assembly | |||||||||||||||||||||||
 |
|  |
| |||||||||||||||||||||
| |||||||||||||||||||
 |
| ||||||||||||||||||
264-N Union Tee | ||||||||||||||||
 |
| |||||||||||||||
| ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||
 |
| |||||||||||||||
268-N Male Connector | ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||
 |
| |||||||||||||||||||||||||||
| *Use 259N inserts w/all Poly-Flo tubing connections. Not needed w/ Nylo-Seal tubing. | |
Reviews
Perfect fit for my two G5 installation
Verified Purchase
Nylo-Seal Fittings 272-N04X02
Verified Purchase
Nylo-Seal Fittings 272-N04X02
Verified Purchase
Nylo-Seal Fittings 272-N04X02
Light weight , works well.
staff very friendly, product correct fit
