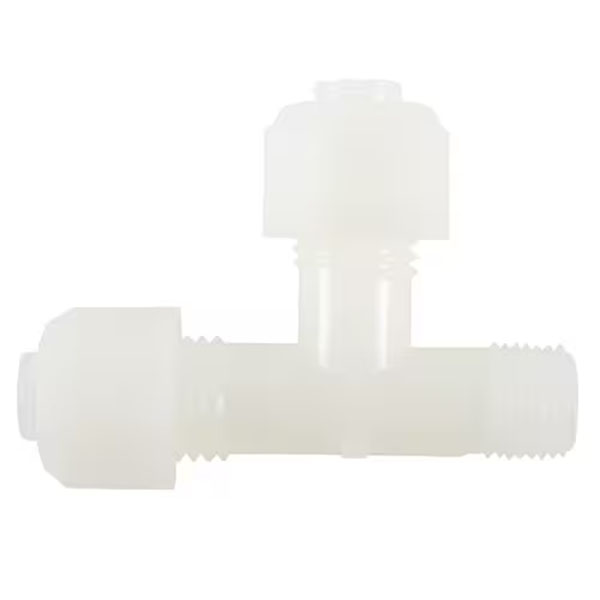

Nylo Seal Fittings 271-N Male Run Tee

7 Reviews 2 Answered Questions
From $6.50 to $17.99
Main Image
Main Image
Tube
OD		 Pipe
Thd.		 A B D E F Part Number Price Buy
1/41/859/6421/327/3215/323/4
271-N04X02
$6.50
Quantity
1/41/459/6413/327/3215/3229/32
271-N04X04
$8.50
Quantity
3/81/41-5/3261/645/1619/321-1/16
271-N06X04
$17.99
Quantity
3/83/81-3/1661/6423/6419/321-7/64
271-N06X06
$11.50
Quantity
Subtotal $0.00
Add to Wishlist

Overview

Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.

For Nylo-Seal tubing, see "Accessories" tab

Less 10% on 50 pieces per size, Less 20% on 100 pieces per size

Reference Chart

259-P CAP,
259-N Insert (Nylon)

261-N Nut and
Sleeve Assembly
Tube O.D. A D
1/4 3/8 1/8
3/8 7/16 13/64
Tube O.D. Thd. A C
1/4 7/16-20 15/32 9/16
3/8 5/8-20 37/64 3/4

262-N Union

Tube O.D. A B C D E
1/4 1-25/64 63/64 5/8 7/32 15/32
3/8 1-21/32 1-1/4 13/16 23/64 19/32

264-N Union Tee
Tube O.D. A B D E
1/4 1-9/64 47/64 7/32 15/32
3/8 1-11/64 31/31 11/32 19/32

266-N Female Connector
Tube O.D. Pipe Thread A B C D E
1/4 1/8 1-9/64 15/16 9/16 7/32 9/16
1/4 1/4 1-5/16 1-7/64 11/16 7/32 47/64
3/8 1/4 1-27/64 1-7/32 11/16 11/32 3/4
3/8 3/8 1-27/64 1-7/32 13/16 11/32 3/4

265-N Elbow Union
Tube O.D. A B D E
1/4 1-1/64 13/16 7/32 3/8
3/8 1-5/32 15/16 11/32 7/16

268-N Male Connector
Tube O.D. Pipe Thd. A B C D E
1/4 1/8 1-13/64 1 5/8 15/64 15/32
1/4 1/4 1-25/64 1-3/16 5/8 15/64 11/16
3/8 1/4 1-17/32 1-21/64 13/16 5/16 19/32
3/8 3/8 1-19/32 1-25/64 13/16 11/32 19/32

269-N Male Elbow
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 1-1/64 13/16 7/32 3/8 27/32
1/4 1/4 1-1/64 13/16 13/32 3/8 1-1/32
3/8 1/4 1-9/64 15/16 5/16 7/16 1-1/32
3/8 3/8 1-9/64 15/16 11/32 7/16 1-3/32

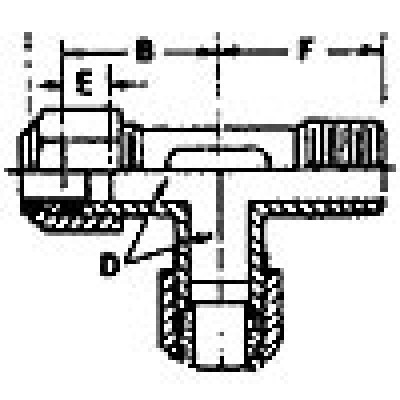

271-N Male Run Tee
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 59/64 21/32 7/32 15/32 3/4
1/4 1/4 59/64 13/32 7/32 15/32 29/32
3/8 1/4 1-5/32 61/64 5/16 19/32 1-1/16
3/8 3/8 1-3/16 61/64 23/64 19/32 1-7/64

272-N Male Branch Tee
Tube O.D. Pipe Thd. A B D E F
1/4 1/8 15/16 47/64 7/32 15/32 3/4
1/4 1/4 15/16 47/64 7/32 15/32 13/16
3/8 1/4 1-11/64 31/32 5/16 19/32 1-1/16
3/8 3/8 1-11/64 31/32 23/64 19/32 1-7/64

282-N Bulkhead Union
Tube O.D. Pipe Thd. A B C D E F G
1/4 7/16-20 1-57/64 1-31/64 5/8 7/32 15/32 5/8 5/16
3/8 5/8-20 2-1/4 1-53/64 13/16 11/32 19/32 7/8 3/8
*Use 259N inserts w/all Poly-Flo tubing connections. Not needed w/ Nylo-Seal tubing.
  • Accessories
  • Frequently Purchased With
  • Customers Also Viewed
  • Related Items

Reviews

Submit a Review

Standard part. Nylo seal is the easiest and best way to build static systems

Bay A Verified Purchase

Nylo-Seal Fitting 271-N04X02
November 11, 2023

Julicher A Verified Purchase

Nylo-Seal Fitting 271-N04X02
May 6, 2023

works good, lasts a long time!

Kell A Verified Purchase

Nylo-Seal Fitting 271-N04X02
March 21, 2023

Very happy with the product!

Mike C Verified Purchase

Nylo-Seal Fitting 271-N04X02
April 22, 2022

These fittings seem to work ok, in my first use of them just be careful not to over tighten or the thread nut deforms.

Fred G Verified Purchase

Nylo-Seal Fitting 271-N04X02
December 8, 2021

Excellent

Chip B Verified Purchase

Nylo-Seal Fitting 271-N04X02
October 28, 2021

John R Verified Purchase

Nylo-Seal Fitting 271-N04X02
June 10, 2022

Q&A

Submit

Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.

Q: Do you have to use Nylo seal fitting 259-N insert, put into your tube before you screw on the nut that comes with this fitting on to the fitting ?Or you just slide the nut over the tubing with no insert and then screw it onto the fitting?

The insert will already be inside the nut. You will just slip your tubing inside the fitting and tighten it down. Nothing else needed.

Q: Is this 1/8-27 ANPT thread so that they fit a garmin gdc74a?

Yes 1/8-27 NPT is the correct size for the GDC 74A.
