- Photo may represent series and not specific product
- SHARE
Overview
|

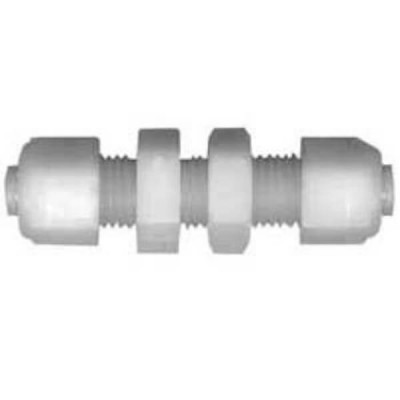

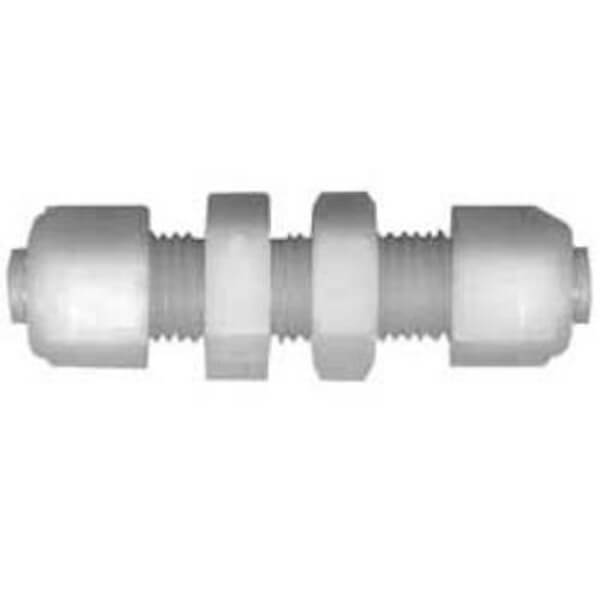

Nylo-Seal tube fittings are exceptionally strong. The bodies, made of nylon, are stronger than machined fittings of similar composition. They are furnished complete with nut/sleeve assemblies, made of acetal copolymer. Since the sleeve snaps into and is retained by the nut there is no fumbling for a loose sleeve. Just insert tube into the fitting and tighten the nut 2 to 2-1/2 full turns. Note: The most frequently used combination of tube and pipe sizes are 1/4" Tube x 1/8" Pipe and 3/8" Tube x1/4" Pipe.
For Nylo-Seal tubing, see "Accessories" tab Less 10% on 50 pieces per size, Less 20% on 100 pieces per size |
Specifications
| PN | OEM PN | Tube OD | Pipe Thread | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|
| 282-N04 | 282-N04 | 1/4 | 7/16-20 | 1-57/64 | 1-31/64 | 5/8 | 7/32 | 15/32 | 5/8 | 5/16 |
| 282-N06 | 282-N06 | 3/8 | 5/8-20 | 2-1/4 | 1-53/64 | 13/16 | 11/32 | 19/32 | 7/8 | 3/8 |
Q&A
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The 282N-06 Nylo-Seal fitting is designed to be used with rigid nylon tubing, not rubber hose. We do not have any info to say how well this would work on rubber.
