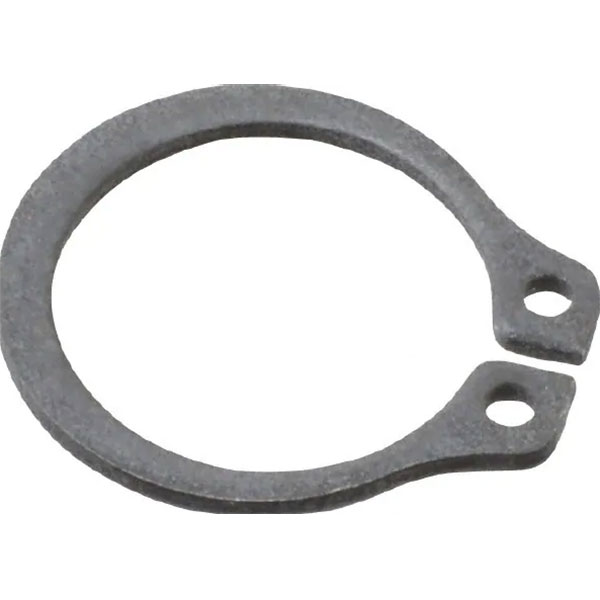

MS16628-4078 External Bowed Retaining Ring

$14.50/Piece
Quantity
Add to Wishlist
Part# 04-04053
MFR Model# MS16628-4078

Overview

MS16628-4078 External Bowed Retaining Ring.

Specifications

Ring Specs:
  • Free Diameter: 0.722 +0.005 / -0.010 in.
  • Thickness: 0.042 +0.002 / -0.002 in.
Grove Specs:
  • Application Diameter: 0.781 in
  • Groove Diameter: 0.733 +0.003 / -0.003 in.
  • Groove Width: 0.062 +0.003 / -0.000 in
  • Groove Depth: 0.024 in.
Other Specs:
  • Approximate Weight per 1000: 2.200 lbs
  • Clearance Diameter When Sprung On to Shaft: 1.120 in.
  • Clearance Diameter When Sprung Into Groove: 1.080 in
  • Bow Height: 0.073 in.
  • Bow Height Tolerance (+/-): 0.008 in.
