Deluxe Washer & Cotter Pin Pack
Overview
|
P/N 04-00300
2000 Washers, 700 Cotter Pins - 31 Items, individually packaged, with a 26-drawer cabinet included. A combo of flat washers in steel and anodized aluminum, regular and light weight, large-area washers, internal locking type, Tinnerman countersunk washers and six useful sizes of cotter pins. |
Kit Includes

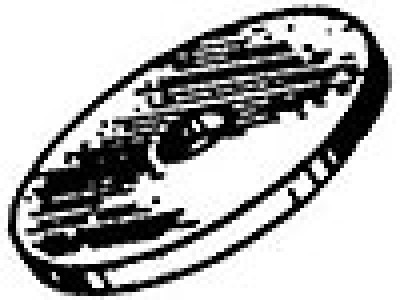

WASHERS | ||||||
| Part No. | Qty. | Size | Part No. | Qty. | Size | |
| Steel, Regular Flat | Steel, Large Flat | |||||
| AN960-6 | 100 | #6 | AN970-3 | 25 | 3/16" | |
| AN960-8 | 100 | #8 | AN970-4 | 14 | 1/4" | |
| AN960-10 | 250 | 3/16" | AN970-5 | 11 | 5/16" | |
| AN960-416 | 200 | 1/4" | Steel, Internal Lock | |||
| AN960-516 | 100 | 5/16" | MS35333-37 | 50 | #6 | |
| Steel, Light Flat | MS35333-38 | 50 | #8 | |||
| AN960-6L | 100 | #6 | MS35333-39 | 50 | #10 | |
| AN960-8L | 100 | #8 | MS35333-40 | 50 | 1/4" | |
| AN960-10L | 100 | 3/16" | MS35333-41 | 50 | 5/16" | |
| AN960-416L | 100 | 1/4" | Tinnerman Countersunk | |||
| AN960-516L | 50 | 5/16" | A3236-012-24A | 100 | #6 | |
| Anod. Alum. Regular Flat | A3135-017-24A | 100 | #8 | |||
| AN960PD10 | 50 | 3/16" | A3235-028-24A | 100 | #10 | |
| AN960PD416 | 50 | 1/4" | ||||
| Anod. Alum. Light Flat | ||||||
| AN960PD10L | 50 | 3/16" | ||||
| AN960PD416L | 50 | 1/4" | ||||

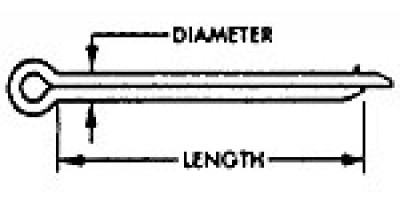

COTTER PINS | ||||||
| MS24665-132 | 225 | 1/16" x 1/2"L | MS24665-283 | 50 | 3/32" x 3/4"L | |
| MS24665-134 | 200 | 1/16" x 3/4"L | MS24665-285 | 13 | 3/32" x 1"L | |
| MS24665-136 | 200 | 1/16 x 1"L | MS24665-360 | 12 | 1/8" x 2"L | |
