Fitting Type | Size | Black Polyethylene Part No. |
Polyethylene Price |
White Nylon Part No. |
Nylon Price |
---|---|---|---|---|---|
Adapter Tube to Pipe | 3/16T x 1/8P | 0700-150 | $1.72 | 0701-150 | $1.64 |
Adapter Tube to Pipe | 1/4T x 1/8P | 0700-153 | $9.70 | 0701-153 | $1.79 |
Adapter Tube to Pipe | 5/16T x 1/8P | 0700-156 | $1.72 | -- | -- |
Adapter Tube to Pipe | 3/8T x 1/8P | 0700-158 | $7.50 | 0701-158 | $2.36 |
Adapter Tube to Pipe | 1/4T x 1/4P | 0700-110 | $4.99 | 0701-110 | $2.46 |
Adapter Tube to Pipe | 3/8 x 1/4P | 0700-162 | $5.75 | 0701-162 | $1.05 |
Elbow Tube to Pipe | 1/4T x 1/8P | 0710-153 | $2.61 | 0711-153 | $2.17 |
Elbow Tube to Pipe | 3/8T x 1/8P | 0710-158 | $4.40 | 0711-158 | $2.39 |
Elbow Tube to Pipe | 1/4T x 1/4P | 0710-110 | $3.70 | 0711-110 | $3.70 |
Elbow Tube to Pipe | 3/8T x 1/4P | 0710-162 | $2.91 | 0711-162 | $2.91 |
Elbow Tube to Tube | 1/4T x 1/4T | 0710-015 | $2.09 | 0711-015 | $2.28 |
Elbow Tube to Tube | 3/8T X 3/8T | 0710-020 | $2.91 | 0711-020 | $2.46 |
Reducing Connector | 1/4P x 1/8P | -- | -- | 0726-153 | $2.84 |
Reducing Connector | 3/8P x 1/8P | 0725-161 | $1.72 | 0726-161 | -- |
Tee Tube to Pipe | 1/4T x 1/4T x 1/8P | 0715-153 | $3.35 | 0716-153 | $3.35 |
Tee Tube to Pipe | 3/8T x 3/8T x 1/4P | 0715-162 | $3.35 | 0716-162 | $2.91 |
Tee Tube to Pipe | 1/4T x 1/4T x 1/4P | 0715-110 | $4.99 | 0716-110 | $2.98 |
Tee All Tube | 3/16T x 3/16T x 3/16T | 0715-011 | $3.35 | 0716-011 | $3.40 |
Tee All Tube | 1/4T x 1/4T x 1/4T | 0715-015 | $3.55 | 0716-015 | $3.70 |
Tee All Tube | 3/8T x 3/8T x 3/8T | 0715-020 | $3.95 | 0716-020 | $2.98 |
Connector Tube to Tube | 1/4T x 1/4T | 0705-015 | $1.79 | 0706-015 | $1.79 |
Connector Tube to Tube | 3/8T x 3/8T | 0705-020 | $4.35 | 0706-020 | $2.17 |

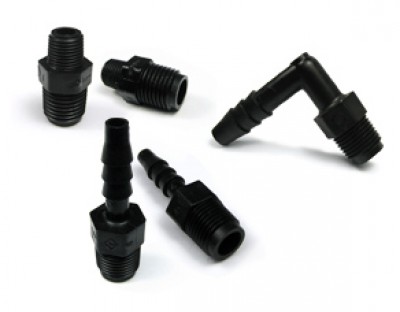

Hose and tubing Insert Fittings are available in high density Black Polyethylene or White Nylon. Use polyethylene fittings with Tygon, nylon or soft rubber tubing to assemble low pressure instrument lines such as airspeed pitot and static lines. Use Nylon fittings in gravity-feed fuel lines and engine breather lines. |
STRAIGHT ADAPTER FOR 1/4" TUBE ID X 1/8 NPT MALE
These nylon fittings are much stronger than the black polyethylene version. I had some failures of the 1/8 NPT x 3/8 polyethylene elbows.
0701-158 NYLON HOSE ADAPTER
The part I ordered is great but the shipping costs are not good. The minimum shipping was 17dollars on a part that cost two so I wish ACS would sent these small items by mail and we would not have to pay such high costs for such an inexpensive item . In order to get around this I had to increase the amount of items in my order to justify the cost
TT9444N NYLON TEE ALL TUBE
Received as advertised.
0710-153 BLK PLY ELBOW FITTING
ok
POLY HOSE TEE 1/4TX1/4TX1/8P
ok
POLY. HOSE FITTING # 0715-015
ok
0700-153 PLYETH HOSE ADAPTER
ok
0705-015 POLY TUBE CONNECTOR
0716T011 NYLON TEE ALL TUBE
great!
0700-153 PLYETH HOSE ADAPTER
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
This would be the inside dimension of the tube.
We offer a few 1/4" I.D. rubber hoses that can be used. Aeroquip 306-4 & Tygon 05-00944 are just a couple common ones.
Yes, the pipe thread on these fittings are called out as NPT.
There are a few, it depends on material and tubing size. 0710-153, 0711-153,0710-158, and 0711-158.
