C-Spec 4000 Receptacles

$6.60/Piece
Quantity
Add to Wishlist
Part# 04-03015
MFR Model# MS214-16N

Overview

C-Spec 4000 Series Receptacles (Camloc® compatible).

Receptacles are available in several styles. There are many options but, the most important distinction to make is do you want to use Fixed Depth or Adjustable Depth receptacles as this will greatly affect the stud selection process. The original standard system used fixed depth receptacles and various stud lengths to fit different panel thicknesses. Adjustable depth receptacles offer much more versatility with fewer and shorter stud lengths.

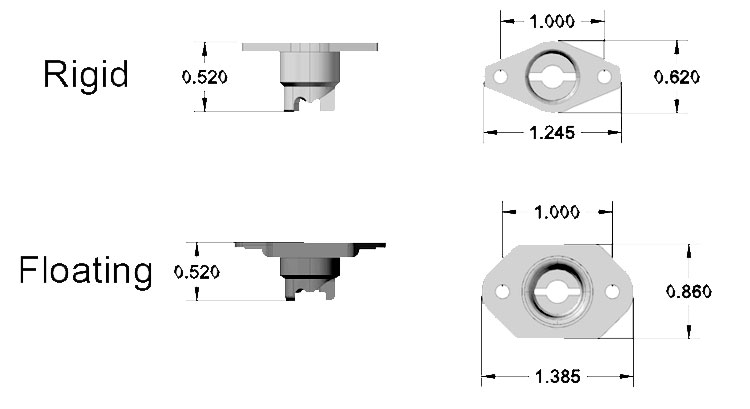

Drawing & Specs

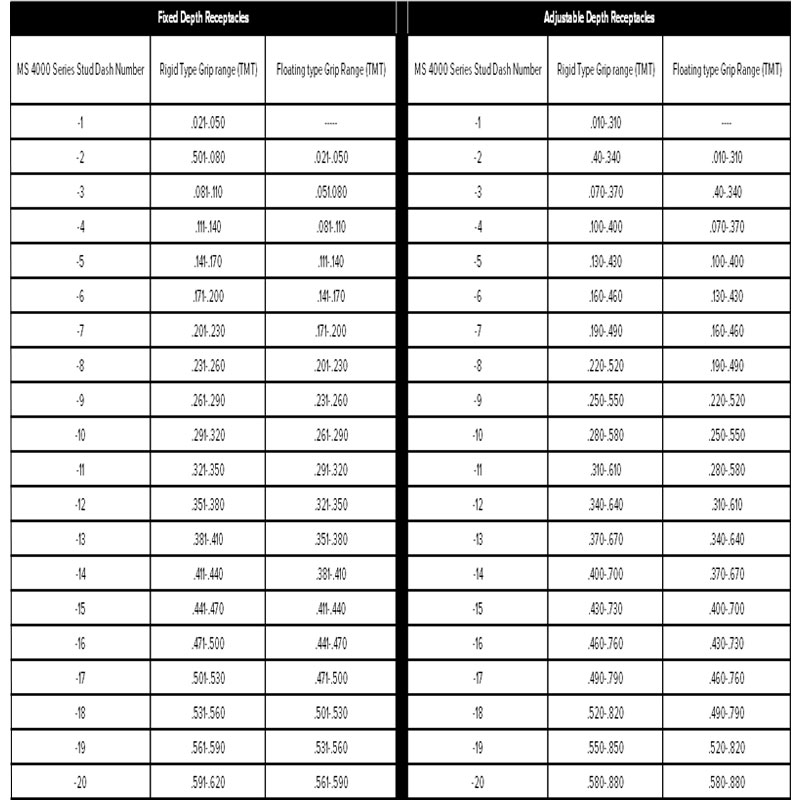

If your Total Material Thickness (TMT) is consistent at all fastener locations, the fixed depth receptacles are recommended. If there is a wide variance from location to location you will need to measure the thickness at each location and select the appropriate stud length to fit. Or you may consider using MilSpec's Adjustable Depth receptacles for ease of use.
