Description | Part No. | Price | Buy |
---|---|---|---|
2600/2700 Series - Fixed Depth, Rigid Receptacle, Narrow Width, Plain Rivet Holes | 212-12N | $8.75 | |
2600/2700 Series - Fixed Depth, Rigid Receptacle, Narrow Width, Csk Rivet Holes | 212-12ND | $10.50 | |

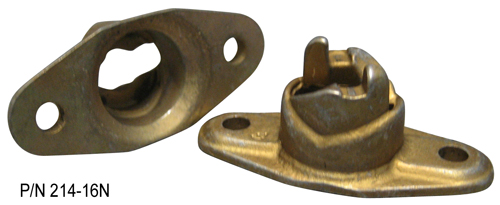

4002 series - Fixed Depth, Rigid, Narrow Width, Plain Rivet Holes | 214-16N | $13.50 | |
4002 Series - Fixed Depth, Rigid Receptacle, Narrow Width, Csk Rivet Holes | 214-16ND | $5.45 | |
4002 Series - Fixed Depth, Floating, Plain Rivet Holes | 244-16 | $13.50 |
2600 Series - Small enough to fit in limited mounting space and light weight. These Camloc fasteners have a 600# ultimate tensile load capacity. 4002 Series - The Modern Standard in Quick Release Fastening Systems. They have an 800# working strength and 1050# Ultimate Tensile load capacity. |
Excellent product. It fit perfectly and was just what I needed.
CAMLOC 2600/2700 RCPT 212-12ND
Absolutely perfect
CAMLOC RECEPTACLE 244-16
CAMLOC RECEPTACLE 244-16
Works
CAMLOC RECEPTACLE 244-16
Way too expensive
CAMLOC 2600/2700 RECPT 212-12N
CAMLOC 2600/2700 RECPT 212-12N
very well. meets the need
CAMLOC 2600/2700 RECPT 212-12N
Positive grip. Smaller foot print than floating version.
CAMLOC 2600/2700 RECPT 212-12N
Camloc Series easy to install with simple tools.
CAMLOC 2600/2700 RCPT 212-12ND
CAMLOC RECEPTACLE 244-16
Please note, Aircraft Spruce Canada's personnel are not certified aircraft mechanics and can only provide general support and ideas, which should not be relied upon or implemented in lieu of consulting an A&P or other qualified technician. Aircraft Spruce Canada assumes no responsibility or liability for any issue or problem which may arise from any repair, modification or other work done from this knowledge base. Any product eligibility information provided here is based on general application guides and we recommend always referring to your specific aircraft parts manual, the parts manufacturer or consulting with a qualified mechanic.
The rivet spacing is 3/4" from center hole to center hole on the unit.
Regarding 214-16N, this would take a plain rivet for the mounting holes. For P/N# 214-16ND, this would use a countersunk (CSK) rivet for the mounting holes. The mounting holes are laid out differently for the type of rivet it requires.
The rivet spacing is 1" +/- .003" .
Per the vendor certs, this meets TSO C148.
You would just need to measure the total material thickness.
