Tension Bolts NAS6703 & NAS6704

1 Review 0 Answered Questions
From $2.15 to $12.70
Main Image
Main Image
Material Grip Length Part Number Price Buy
Plated0.06250.4075
NAS6703-1
$3.35
Quantity
Plated0.12500.4700
NAS6703-2
$4.50
Quantity
Plated0.18750.5325
NAS6703-3
$2.81
Quantity
Plated0.25000.5950
NAS6703-4
$2.24
Quantity
Plated0.31250.6575
NAS6703-5
$2.27
Quantity
Plated0.37500.7200
NAS6703-6
$2.27
Quantity
Plated0.43750.7825
NAS6703-7
$4.50
Quantity
Plated0.50000.8450
NAS6703-8
$2.39
Quantity
Plated0.56250.9075
NAS6703-9
$2.45
Quantity
Plated0.62500.9700
NAS6703-10
$2.33
Quantity
Plated0.68751.0325
NAS6703-11
$2.54
Quantity
Plated0.75001.0950
NAS6703-12
$2.63
Quantity
Un-Plated0.06250.4075
NAS6703U1
$2.39
Quantity
Un-Plated0.12500.4700
NAS6703U2
$2.15
Quantity
Un-Plated0.18750.5325
NAS6703U3
$2.21
Quantity
Un-Plated0.25000.5950
NAS6703U4
$2.24
Quantity
Un-Plated0.31250.6575
NAS6703U5
$3.65
Quantity
Un-Plated0.37500.7200
NAS6703U6
$2.30
Quantity
Un-Plated0.43750.7825
NAS6703U7
$2.98
Quantity
Un-Plated0.50000.8450
NAS6703U8
$3.50
Quantity
Un-Plated0.56250.9075
NAS6703U9
$10.50
Quantity
Un-Plated0.62500.9700
NAS6703U10
$3.90
Quantity
Un-Plated0.68751.0325
NAS6703U11
$4.35
Quantity
Un-Plated0.75001.0950
NAS6703U12
$2.60
Quantity
Plated0.06250.4875
NAS6704-1
$2.76
Quantity
Plated0.12500.5500
NAS6704-2
$7.99
Quantity
Plated0.18750.6125
NAS6704-3
$2.75
Quantity
Plated0.31250.7375
NAS6704-5
$2.66
Quantity
Plated0.37500.8000
NAS6704-6
$6.60
Quantity
Plated0.50000.9250
NAS6704-8
$2.98
Quantity
Plated0.56250.9875
NAS6704-9
$12.70
Quantity
Plated0.62501.0500
NAS6704-10
$11.50
Quantity
Plated0.68751.1125
NAS6704-11
$3.70
Quantity
Plated0.75001.1750
NAS6704-12
$6.90
Quantity
Un-Plated0.12500.5500
NAS6704U2
$3.35
Quantity
Un-Plated0.18750.6125
NAS6704U3
$5.60
Quantity
Un-Plated0.25000.6750
NAS6704U4
$2.78
Quantity
Un-Plated0.31250.7375
NAS6704U5
$5.35
Quantity
Un-Plated0.37500.8000
NAS6704U6
$2.90
Quantity
Un-Plated0.43750.8625
NAS6704U7
$3.75
Quantity
Un-Plated0.50000.9250
NAS6704U8
$2.98
Quantity
Un-Plated0.56250.9875
NAS6704U9
$5.35
Quantity
Un-Plated0.62501.0500
NAS6704U10
$6.90
Quantity
Un-Plated0.68751.1125
NAS6704U11
$6.50
Quantity
Un-Plated0.75001.1750
NAS6704U12
$11.90
Quantity
Subtotal $0.00
Add to Wishlist

Overview

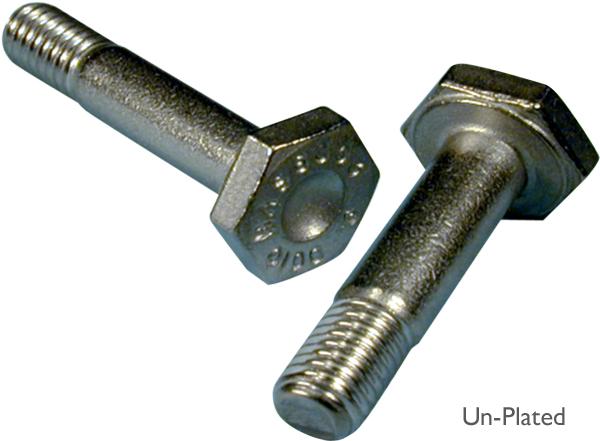

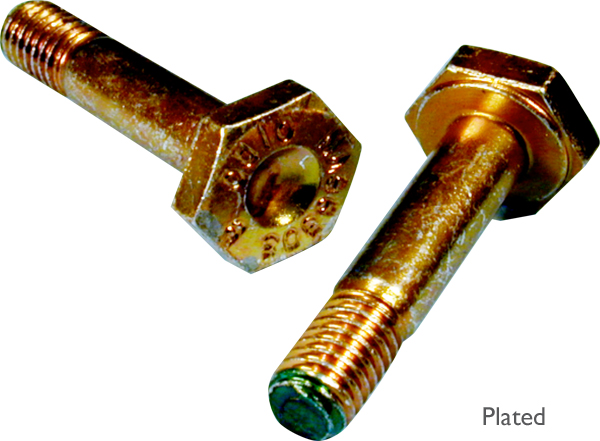

Hex Head, Long Thread NAS6703 & NAS6704

Material - CRES (A286) Per AMS5731, AMS5732, AMS5737 or AMS5853
Finish - Cadmium Per AMS-QQ-P-416 II, Class 2 or Passivate Per AMS2700 (U Code)
Heat Treat - 160-190 KSI Per AMS2759

Specifications

NAS6703
  • A = .376
  • D = .1895
  • H = .110
  • Thread: 10-32 UNJF-3a
  • Tensile: 3620 Lbs. Min
  • Shear: 5380 Lbs. Min
NAS6704
  • A = .439
  • D = .2495
  • H = .125
  • Thread: 1/4-28 UNJF-3a
  • Tensile: 6470 Lbs. Min
  • Shear: 9300 Lbs. Min
